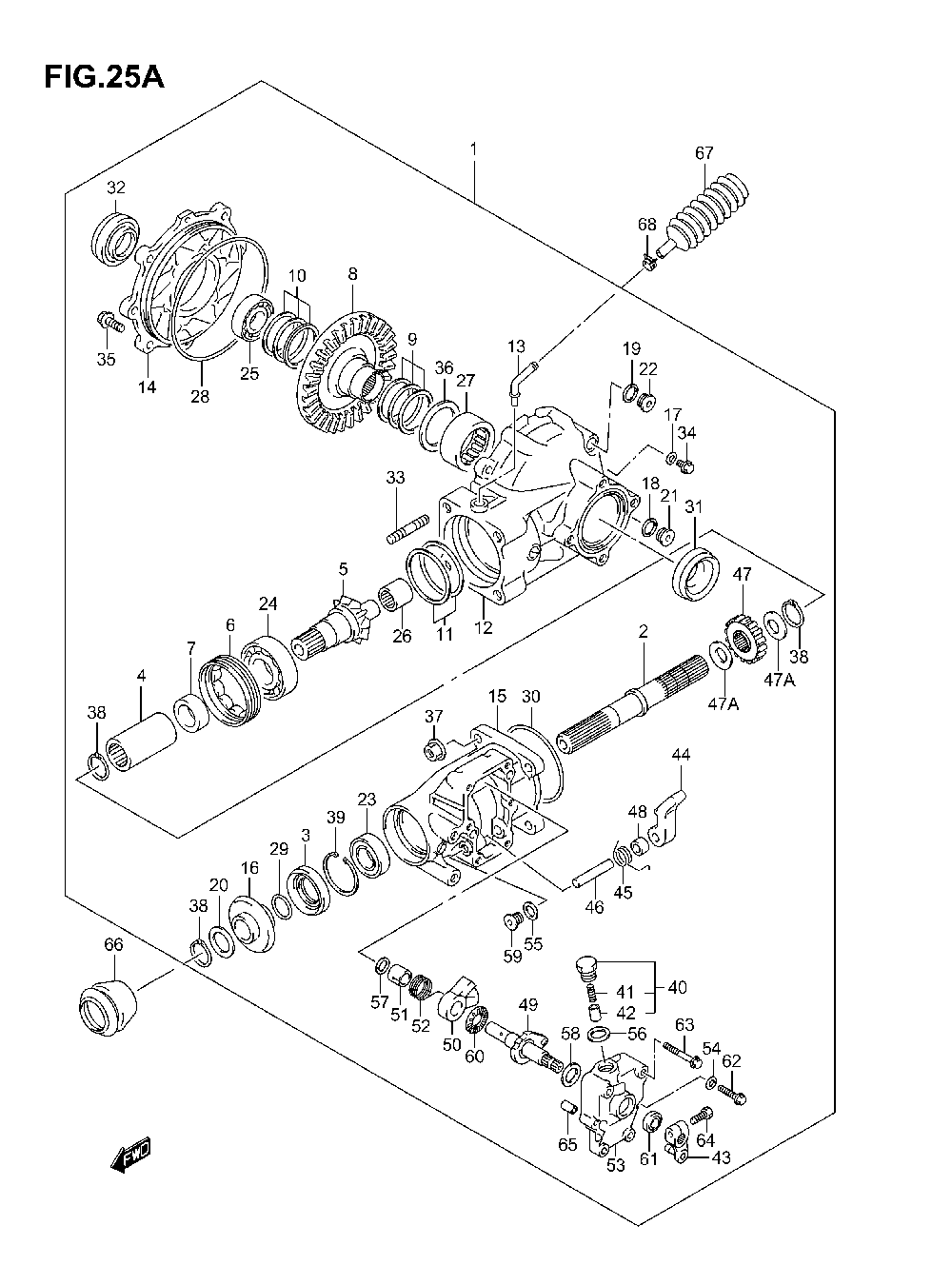

DIFFERENTIAL - REAR (AFTER 09/2004 (04/09)) для Suzuki LT-A500F VISION 4X4 AUTOMATIC - 2004 года выпуска`
-
№АртикулНазвание
-
127410-03G20 CASE ASSY, REARCASE ASSY, REAR
-
227155-38FP0 SHAFT, REAR FINAL DRIVESHAFT, REAR FINAL DRIVE
-
327156-38FM0 SEAL, FINAL DRIVE BEARINGSEAL, FINAL DRIVE BEARING
-
427157-38F00 JOINT, REAR FINAL DRIVEJOINT, REAR FINAL DRIVE
-
527311-38FM0 GEAR, FINAL DRIVE BEVELGEAR, FINAL DRIVE BEVEL
-
627312-38F00 STOPPER, FINAL DRIVESTOPPER, FINAL DRIVE
-
727316-38FM0 SPACER, REAR FINAL DRIVESPACER, REAR FINAL DRIVE
-
827321-38FM0 GEAR, FINAL DRIVEN BEVELGEAR, FINAL DRIVEN BEVEL
-
927326-09810 SHIM SET, FINAL DRIVEN LEFT HANDSHIM SET, FINAL DRIVEN LEFT HAND
-
1027326-18810 SHIM SET, FINAL DRIVEN RIGHT HANDSHIM SET, FINAL DRIVEN RIGHT HAND
-
1127445-24810 SHIM SET, FINAL DRIVESHIM SET, FINAL DRIVE
-
1227450-38FM0 CASE, REAR FINAL GEARCASE, REAR FINAL GEAR
-
1309364-08009 UNION, BREATHERUNION, BREATHER
-
1427461-38FM0 CASE, REAR FINAL DRIVEN RIGHT HANDCASE, REAR FINAL DRIVEN RIGHT HAND
-
1527471-38FP0 HOUSING, REAR FINAL DRIVEHOUSING, REAR FINAL DRIVE
-
1627590-38F00 COLLAR, OUTPUT OIL SEALCOLLAR, OUTPUT OIL SEAL
-
1709168-06018 GASKET, OIL CHECK BOLTGASKET, OIL CHECK BOLT
-
1809168-16002 GASKET, OIL DRAINGASKET, OIL DRAIN
-
1909168-16002 GASKET, OIL FILLERGASKET, OIL FILLER
-
2027407-38FM0 WASHER, REAR FINAL DRIVEWASHER, REAR FINAL DRIVE
-
2109248-16012 PLUG, OIL DRAINPLUG, OIL DRAIN
-
2209248-16012 PLUG, OIL FILLERPLUG, OIL FILLER
-
2327405-38FM0 BEARING, REAR FINALBEARING, REAR FINAL
-
2427405-38FN0 BEARING, FINAL DRIVE GEARBEARING, FINAL DRIVE GEAR
-
2527405-38FP0 BEARING, FINAL DRIVEN RIGHT HANDBEARING, FINAL DRIVEN RIGHT HAND
-
2627405-38FR0 BEARING, FINAL DRIVE PILOTBEARING, FINAL DRIVE PILOT
-
2727405-38FS0 BEARING, FINAL DRIVEN LEFT HANDBEARING, FINAL DRIVEN LEFT HAND
-
2827405-38FT0 O RING, BEARING CASE RIGHT HANDO RING, BEARING CASE RIGHT HAND
-
2909280-24010 O RING, COLLAR OUTPUTO RING, COLLAR OUTPUT
-
3009280-76008 O RING, REAR FINAL HOUSINGO RING, REAR FINAL HOUSING
-
3109283-38009 OIL SEAL, FINAL DRIVEN LEFT HANDOIL SEAL, FINAL DRIVEN LEFT HAND
-
3209283-42011 OIL SEAL, FINAL DRIVEN RIGHT HANDOIL SEAL, FINAL DRIVEN RIGHT HAND
-
3301421-10303 BOLT, REAR FINAL GEARBOLT, REAR FINAL GEAR
-
3427401-38FM0 BOLT, OIL CHECKBOLT, OIL CHECK
-
3527401-38FM0 BOLT, REAR FINAL GEARBOLT, REAR FINAL GEAR
-
3627407-38FN0 WASHER, FINAL DRIVEN LEFT HANDWASHER, FINAL DRIVEN LEFT HAND
-
3727408-38FM0 NUT, REAR FINAL DRIVENUT, REAR FINAL DRIVE
-
3808331-31256 CIRCLIPCIRCLIP
-
3927403-38FM0 CIRCLIP, REAR FINAL BEARINGCIRCLIP, REAR FINAL BEARING
-
4025350-09F50 STOPPER, PARKING CAMSTOPPER, PARKING CAM
-
4129613-44D00 SPRINGSPRING
-
4225351-44D50 STOPPERSTOPPER
-
4325360-38F00 ARM SELECTARM SELECT
-
4425932-38F10 PAWL, PARKING LOCKPAWL, PARKING LOCK
-
4525933-38FM0 SPRING, PARKINGSPRING, PARKING
-
4625934-38F10 SHAFT, PARKING PAWLSHAFT, PARKING PAWL
-
4725935-38FM0 GEAR, PARKING LOCK (NT:24)GEAR, PARKING LOCK (NT:24)
-
47A09181-25139 WASHER (25X32X1.0)WASHER (25X32X1.0)
-
4825936-38FM0 SPACER, PARKING PAWLSPACER, PARKING PAWL
-
4925940-38F00 SHAFT, PARKING LOCK CAMSHAFT, PARKING LOCK CAM
-
5025942-38F00 CAM, PARKING LOCK SHAFTCAM, PARKING LOCK SHAFT
-
5125944-38F00 GUIDE, PARKING PAWLGUIDE, PARKING PAWL
-
5225984-38FM0 SPRING, PARKING CAMSPRING, PARKING CAM
-
5327475-38FM0 COVER, REAR FINAL DOORCOVER, REAR FINAL DOOR
-
5409168-06024 GASKET, REAR FINAL COVERGASKET, REAR FINAL COVER
-
5509168-10007 GASKET, PARKING PAWLGASKET, PARKING PAWL
-
5609168-14002 GASKET, CAM SHAFT STOPPERGASKET, CAM SHAFT STOPPER
-
5727407-38FP0 WASHER, PARKING RIGHT HANDWASHER, PARKING RIGHT HAND
-
5827407-38FR0 WASHER, PARKING LEFT HANDWASHER, PARKING LEFT HAND
-
5909248-10007 PLUG, PARKING PAWLPLUG, PARKING PAWL
