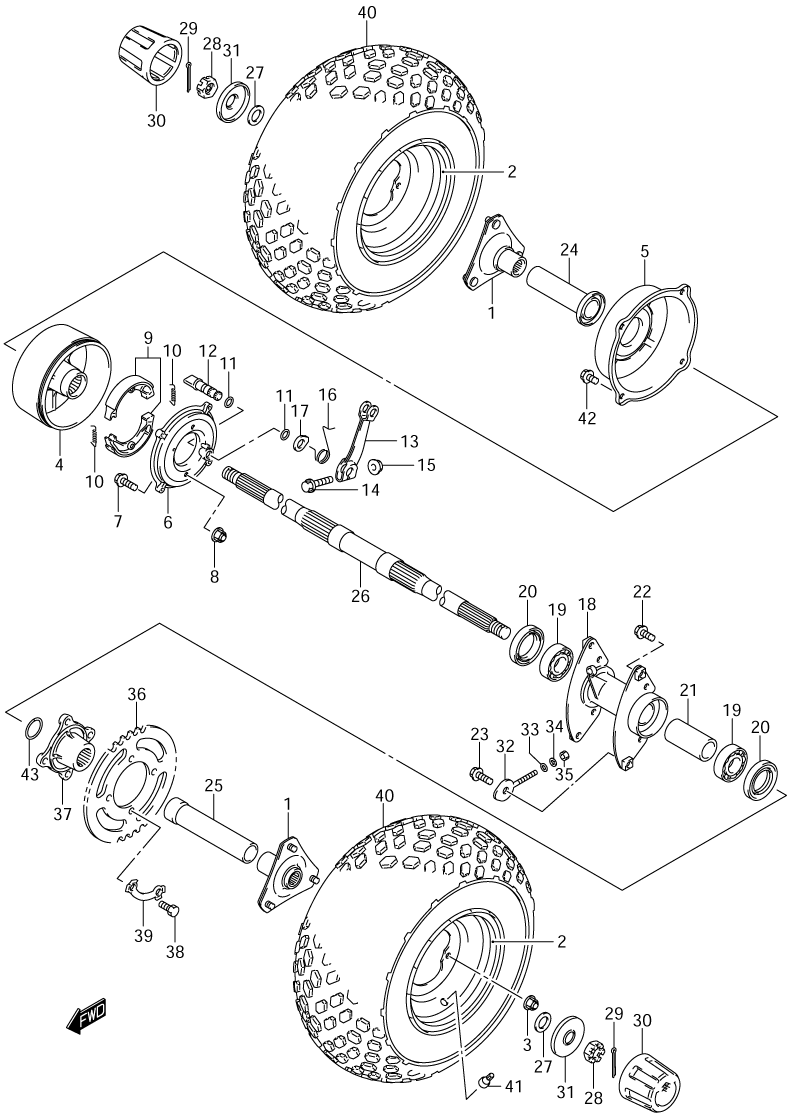

WHEEL - REAR W/ BRAKE - AXLE для Suzuki LT-A50 QUADSPORT - 2004 года выпуска
-
№АртикулНазвание
-
164110-43F00 HUB, WHEEL (REAR)HUB, WHEEL (REAR)
-
265310-43F00-13L RIM, WHEEL (7X6.0AT) (REAR) (SILVER)RIM, WHEEL (7X6.0AT) (REAR) (SILVER)
-
308319-31087 NUTNUT
-
464121-43F00 DRUM, BRAKE (REAR)DRUM, BRAKE (REAR)
-
564123-43F00 COVER, BRAKE (REAR)COVER, BRAKE (REAR)
-
664210-43F00 PANEL, BRAKE ANCHOR (REAR)PANEL, BRAKE ANCHOR (REAR)
-
764251-04600 BOLT, PANEL SETBOLT, PANEL SET
-
808319-31087 NUTNUT
-
954401-43810 SHOE SET, BRAKESHOE SET, BRAKE
-
1009443-07044 SPRINGSPRING
-
1109280-12012 O-RINGO-RING
-
1264441-43F00 CAM, BRAKECAM, BRAKE
-
1364451-43F00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1409103-06135 BOLTBOLT
-
1508316-10063 NUTNUT
-
1664484-43F00 SPRING, BRAKE CAM LEVERSPRING, BRAKE CAM LEVER
-
1764492-43F00 PLATEPLATE
-
1864720-43F00 HOUSING, AXLE BEARINGHOUSING, AXLE BEARING
-
1909262-28043 BEARINGBEARING
-
2009283-35005 OIL SEALOIL SEAL
-
2164731-43F00 SPACER, AXLE BEARINGSPACER, AXLE BEARING
-
2201580-08203 BOLT, AXLE BEARINGBOLT, AXLE BEARING
-
2301580-08253 BOLT, ADJUSTERBOLT, ADJUSTER
-
2464740-43F00 SPACER, AXLE (RIGHT)SPACER, AXLE (RIGHT)
-
2564751-43F00 SPACER, AXLE (LEFT)SPACER, AXLE (LEFT)
-
2664711-43F00 AXLE (REAR)AXLE (REAR)
-
2764723-02410 WASHER, AXLE (REAR)WASHER, AXLE (REAR)
-
2808314-40163 NUTNUT
-
2904111-40308 COTTER PINCOTTER PIN
-
3054725-18A00 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
3164726-40B00 HOLDER, CAPHOLDER, CAP
-
3261411-04600 ADJUSTER, CHAINADJUSTER, CHAIN
-
3308322-01063 WASHERWASHER
-
3408321-01063 LOCK WASHERLOCK WASHER
-
3508310-00063 NUTNUT
-
3664511-43F00 SPROCKET, REAR (NT:37)SPROCKET, REAR (NT:37)
-
3764611-43F00 FLANGE, MOUNTINGFLANGE, MOUNTING
-
3864541-04600 BOLTBOLT
-
3909169-08012 WASHERWASHER
-
4055110-43F00 TIRETIRE
-
4143130-24A00 VALVE ASSY., WHEEL RIMVALVE ASSY., WHEEL RIM
-
4201547-06103 BOLT, RR BRAKE DRUM COVERBOLT, RR BRAKE DRUM COVER
-
4309380-23001 RING, STOPPERRING, STOPPER
