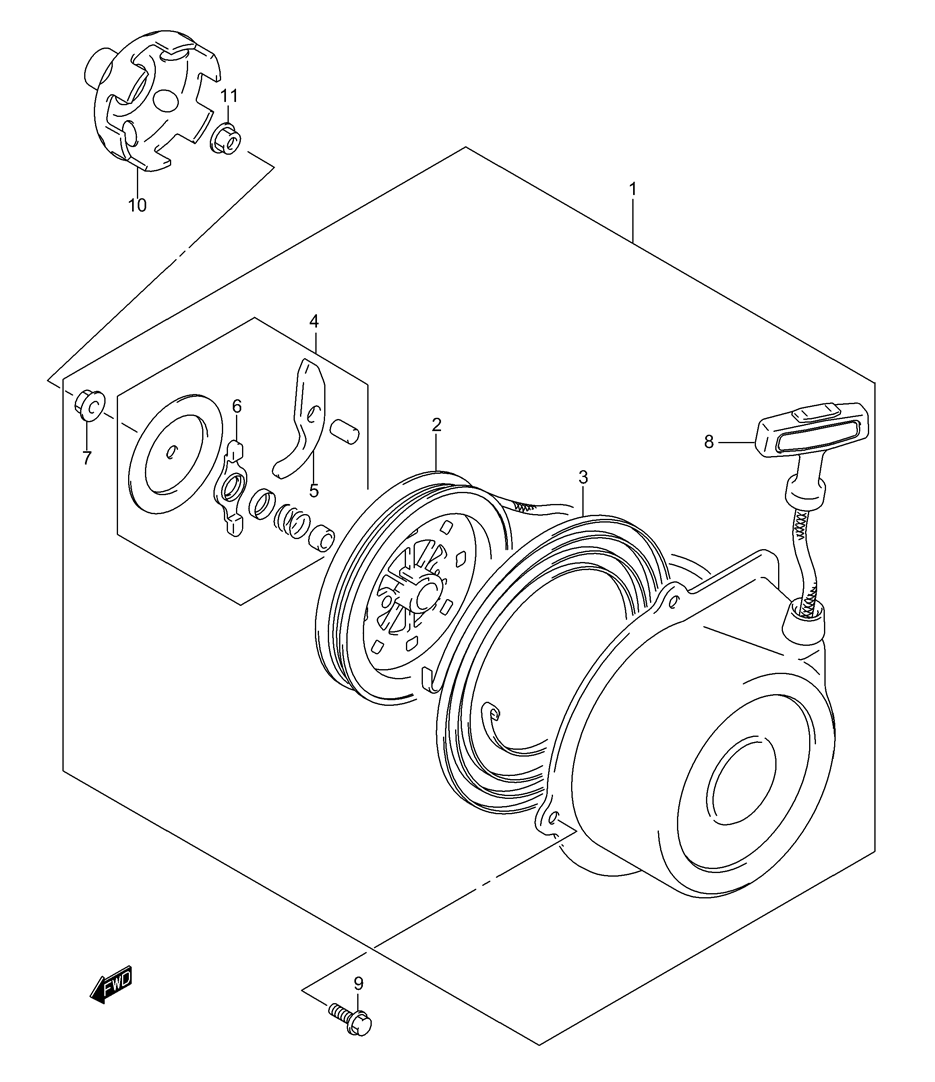

STARTER - RECOIL для Suzuki LT-A400F EIGER 4x4 AUTOMATIC - 2004 года выпуска
-
№АртикулНазвание
-
118100-24503 STARTER ASSY, RECOILSTARTER ASSY, RECOIL
-
218120-24500 REELREEL
-
318142-24400 SPRING, SPIRALSPRING, SPIRAL
-
418130-24400 RATCHET SETRATCHET SET
-
518131-24411 RATCHETRATCHET
-
618132-24400 GUIDE, RATCHETGUIDE, RATCHET
-
708316-10063 NUTNUT
-
818200-24501 ROPE ASSYROPE ASSY
-
909103-06236 BOLTBOLT
