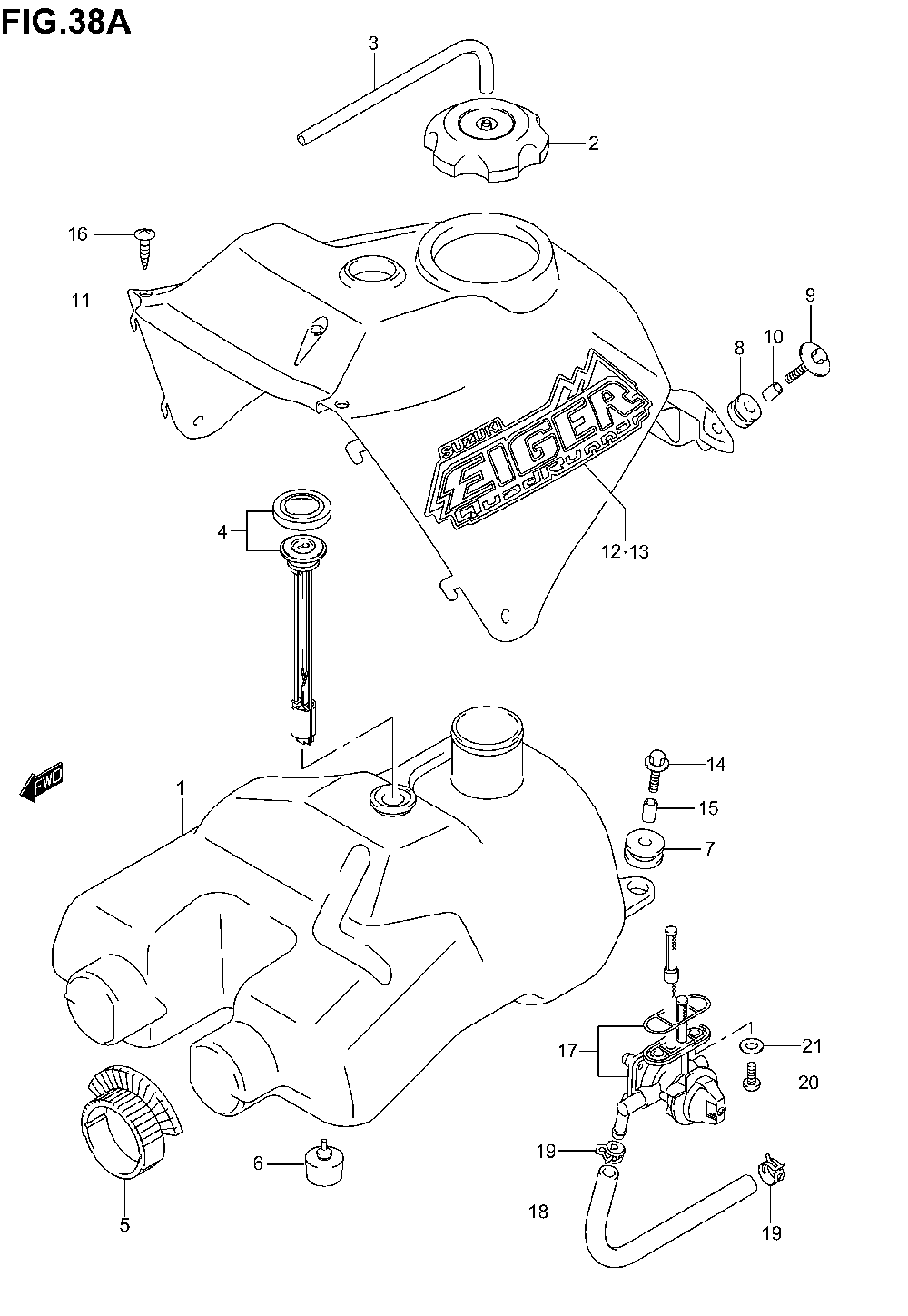

FUEL TANK для Suzuki LT-A400C EIGER - 2004 года выпуска`
-
№АртикулНазвание
-
144100-38F00 TANK ASSY, FUELTANK ASSY, FUEL
-
244200-29F00 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
309352-50823-600 HOSE, BREATHER (L:600!380)HOSE, BREATHER (L:600!380)
-
444580-38F01 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
544511-38F00 CUSHION, FRONTCUSHION, FRONT
-
644543-38F00 CUSHION, LOWERCUSHION, LOWER
-
745141-09F00 CUSHION, SEAT MOUNTCUSHION, SEAT MOUNT
-
844281-03G00 CUSHION, REARCUSHION, REAR
-
909116-06050 BOLTBOLT
-
1044544-38F00 SPACERSPACER
-
1144271-38F10-YT8 COVER, TANK (GREEN, YT8)COVER, TANK (GREEN, YT8)
-
1144271-38F10-YT9 COVER, TANK (RED, YT9)COVER, TANK (RED, YT9)
-
1144271-38F10-YU1 COVER, TANK (YELLOW, YU1)COVER, TANK (YELLOW, YU1)
-
1144271-38FC0-YDH COVER, TANK (CAMOFLAGE, YDH)COVER, TANK (CAMOFLAGE, YDH)
-
1268111-38F10-MV6 EMBLEM, COVER RIGHT HAND (ALL OTHER COLORS)EMBLEM, COVER RIGHT HAND (ALL OTHER COLORS)
-
1268111-38FA0-MV6 EMBLEM, COVER RIGHT HAND (FOR CAMO)EMBLEM, COVER RIGHT HAND (FOR CAMO)
-
1368121-38F10-MV6 EMBLEM, COVER LEFT HAND (ALL OTHER COLORS)EMBLEM, COVER LEFT HAND (ALL OTHER COLORS)
-
1368121-38FA0-MV6 EMBLEM, COVER LEFT HAND (FOR CAMO)EMBLEM, COVER LEFT HAND (FOR CAMO)
-
1401550-06203 BOLT, REARBOLT, REAR
-
1509180-06267 SPACERSPACER
-
1603241-15163 SCREW, FRONTSCREW, FRONT
-
1744300-38F02 COCK ASSY, FUELCOCK ASSY, FUEL
-
1844421-38F20 HOSE, FUELHOSE, FUEL
-
1909401-11407 CLIPCLIP
-
2001547-06163 BOLTBOLT
-
2109168-06026 GASKETGASKET
