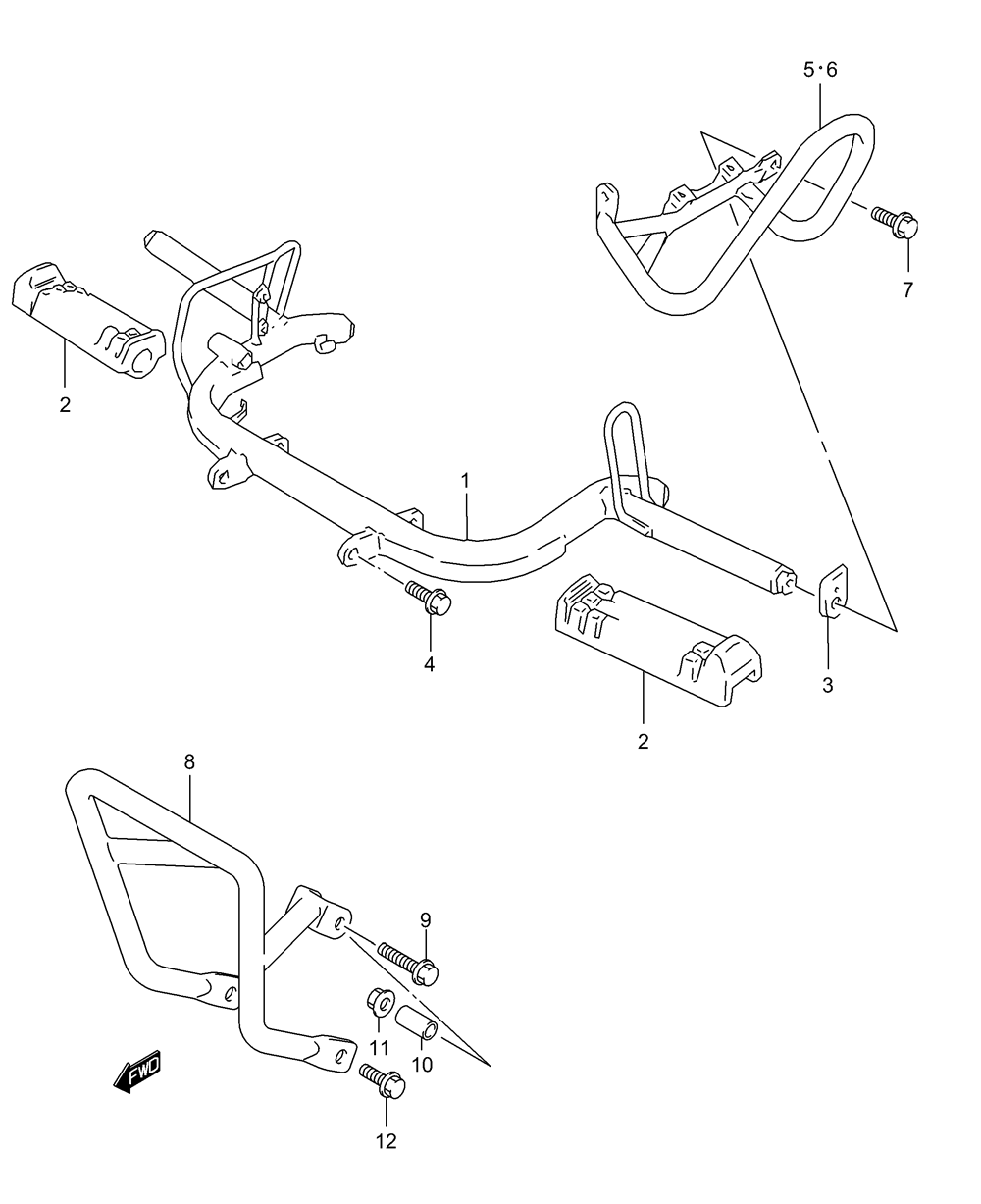

FOOTREST W/ BUMBER (CANADA ONLY) для Suzuki LT80 QUADSPORT - 2003 года выпуска`
-
№АртикулНазвание
-
143510-40B01-019 BAR, FRONT FOOTREST (BLACK)BAR, FRONT FOOTREST (BLACK)
-
243551-40B00 RUBBER, FRONT FOOTRESTRUBBER, FRONT FOOTREST
-
343553-24200 STOPPER, RUBBERSTOPPER, RUBBER
-
409103-10100 BOLTBOLT
-
543580-40B10-019 GUARD, BRUSH LEFT HAND (BLACK)GUARD, BRUSH LEFT HAND (BLACK)
-
643570-40B10-019 GUARD, BRUSH RIGHT HAND (BLACK)GUARD, BRUSH RIGHT HAND (BLACK)
-
701550-08203 BOLTBOLT
-
843990-40B30-019 GRIP, FRONT (BLACK)GRIP, FRONT (BLACK)
-
901550-08353 BOLT, UPPERBOLT, UPPER
-
1009180-08067 SPACERSPACER
-
1108316-10083 NUTNUT
-
1201550-08163 BOLT, LOWERBOLT, LOWER
