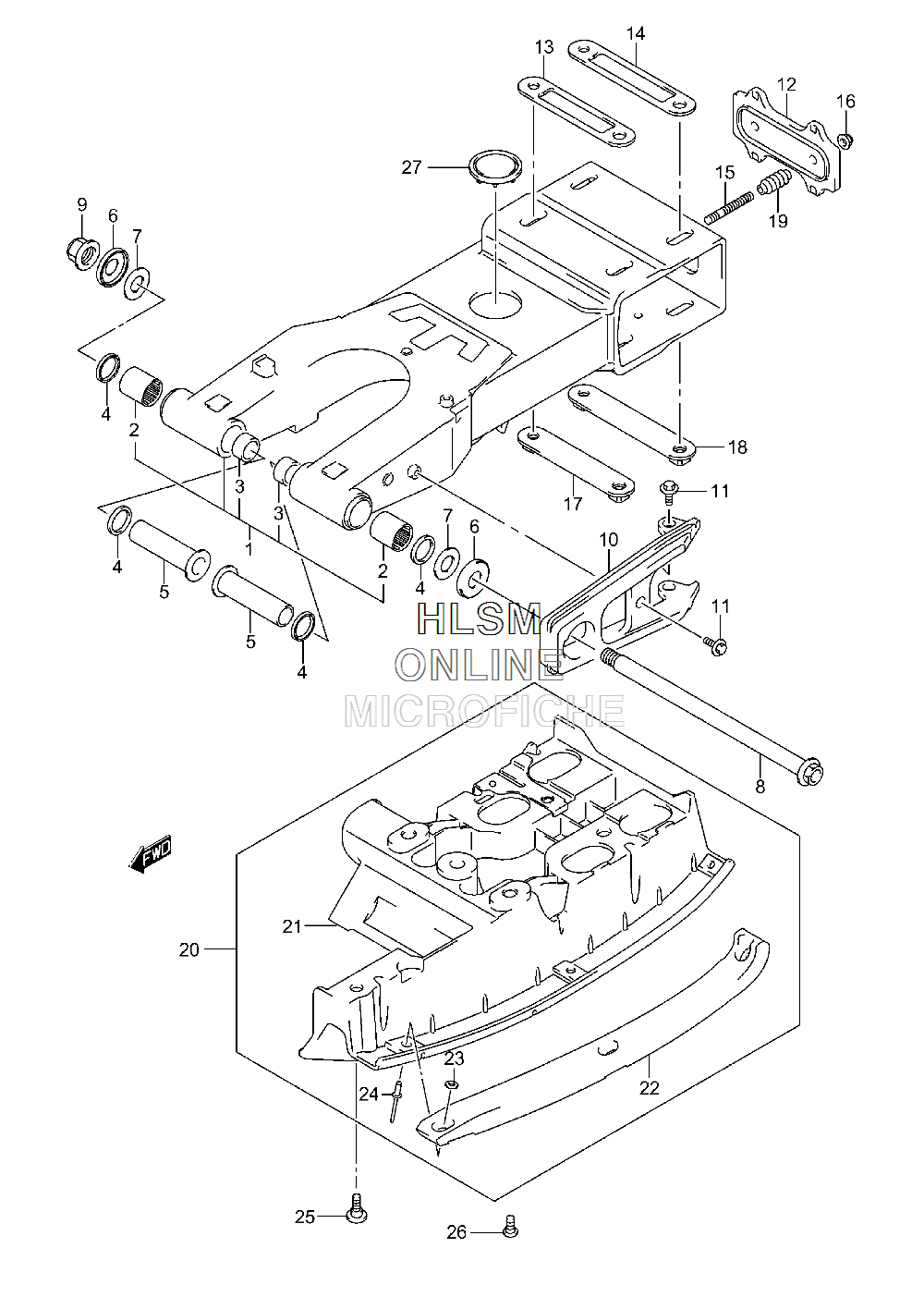

SUSPENSION - REAR SWING ARM (FRAME SERIAL 32113658 AND ABOVE) для Suzuki LT-Z400F QUADSPORT Z400 Limited - 2003 года выпуска`
-
№АртикулНазвание
-
161100-07890 SWINGING ARM SET, REAR (INC 2-3)SWINGING ARM SET, REAR (INC 2-3)
-
209263-22017 BEARING, PIVOTBEARING, PIVOT
-
361261-07G00 BUSH, REAR SWINGING ARM PIVOTBUSH, REAR SWINGING ARM PIVOT
-
409285-22001 SEAL, PIVOT BEARINGSEAL, PIVOT BEARING
-
561252-07G00 SPACERSPACER
-
661262-28C10 COVER, PIVOT DUSTCOVER, PIVOT DUST
-
708211-17341 WASHER, THRUSTWASHER, THRUST
-
861211-07G00 SHAFT, PIVOTSHAFT, PIVOT
-
908319-31168 NUTNUT
-
1061273-07G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109116-06192 BOLTBOLT
-
1261421-01C01 PLATE, CHAIN ADJUSTERPLATE, CHAIN ADJUSTER
-
1364718-07G00 WASHER, AXLE HOUSING SET FRONTWASHER, AXLE HOUSING SET FRONT
-
1464719-07G00 WASHER, AXLE HOUSING SET REARWASHER, AXLE HOUSING SET REAR
-
1509108-08209 BOLT, CHAIN ADJUSTERBOLT, CHAIN ADJUSTER
-
1608319-31087 NUT, CHAIN ADJUSTERNUT, CHAIN ADJUSTER
-
1761470-07G00 WASHER, AXLE HOUSING SET FRONTWASHER, AXLE HOUSING SET FRONT
-
1861480-07G00 WASHER, AXLE HOUSING SET REARWASHER, AXLE HOUSING SET REAR
-
1961425-43B00 BOOT, CHAIN ADJUSTER BOLTBOOT, CHAIN ADJUSTER BOLT
-
2061305-07G01 GUARD SET, SWINGING ARM UNDER (INC 20-24)GUARD SET, SWINGING ARM UNDER (INC 20-24)
-
2161390-07G11 GUARD, SWINGING ARM UNDERGUARD, SWINGING ARM UNDER
-
2261396-07G10 BUFFER, SWGARM GUARDBUFFER, SWGARM GUARD
-
2309160-04027 WASHER, BUFFERWASHER, BUFFER
-
2409229-04048 RIVET, BUFFERRIVET, BUFFER
-
2561393-09F00 BOLT, GUARDBOLT, GUARD
-
2609106-08154 BOLT, GUARD CENTERBOLT, GUARD CENTER
-
2761222-05A01 CAP, REAR SWINGING ARMCAP, REAR SWINGING ARM
