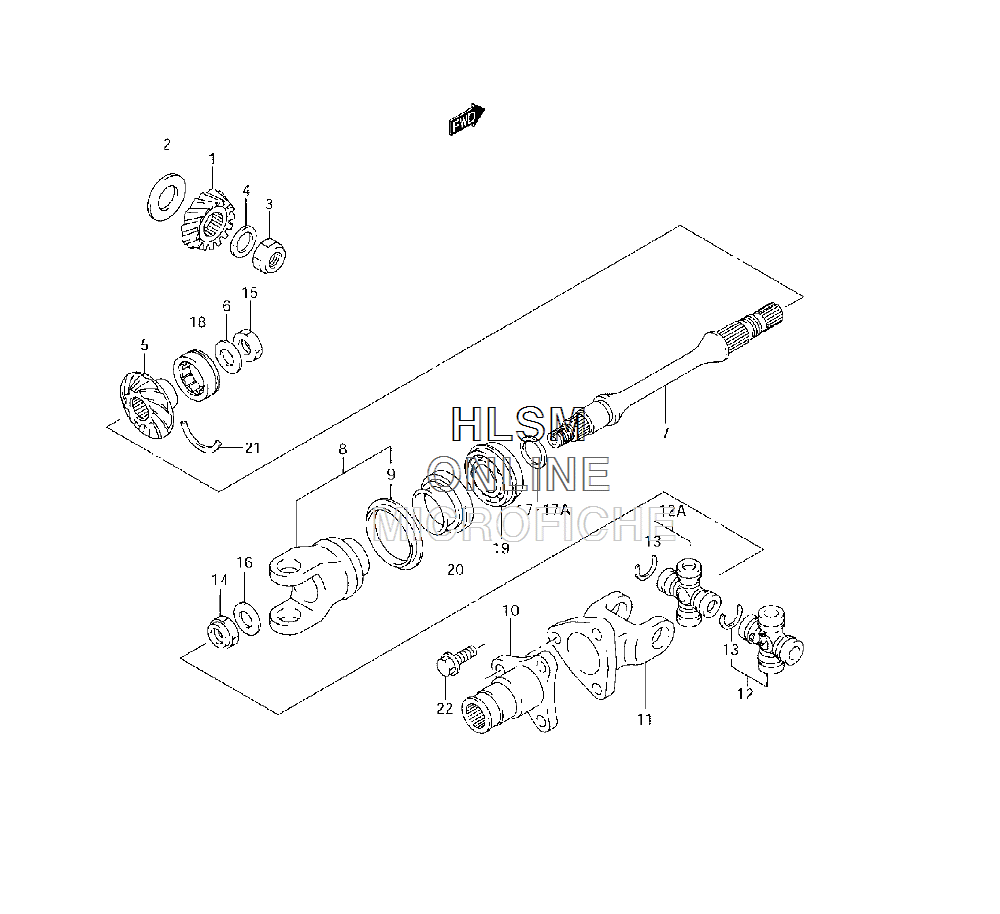

DRIVESHAFT - REAR для Suzuki LT-F400 EIGER 4X2 MANUAL - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    24911-44D11 GEAR, SEC DRIVE BEVEL NT:15
    GEAR, SEC DRIVE BEVEL NT:15
  • 2
    24935-19810 SHIM, SET, SEC DRIVE BEVEL GR
    SHIM, SET, SEC DRIVE BEVEL GR
  • 3
    09140-20012 NUT, SEC DRIVE BEVEL GR
    NUT, SEC DRIVE BEVEL GR
  • 4
    09181-20223 WASHER, SEC DRIVE BEVEL GR 20.1X32X10
    WASHER, SEC DRIVE BEVEL GR 20.1X32X10
  • 5
    24921-44D10 GEAR, SEC DRIVEN BEVEL
    GEAR, SEC DRIVEN BEVEL
  • 6
    08211-22362 WASHER, SEC DRIVEN GEAR
    WASHER, SEC DRIVEN GEAR
  • 7
    24971-38F50 SHAFT, SEC DRIVEN OUTPUT RR
    SHAFT, SEC DRIVEN OUTPUT RR
  • 8
    27130-03G00 YOKE, RR DRIVE OUTPUT (INCL. 9)
    YOKE, RR DRIVE OUTPUT (INCL. 9)
  • 9
    27592-38F00 PLATE, OUTPUT
    PLATE, OUTPUT
  • 10
    27150-38F00 SHAFT, PROPELLER REAR
    SHAFT, PROPELLER REAR
  • 11
    27161-38F11 YOKE, PROP SHAFT JOINT REAR
    YOKE, PROP SHAFT JOINT REAR
  • 12
    27200-38810 JOINT SET, UNIVERSAL (INCL. 13)
    JOINT SET, UNIVERSAL (INCL. 13)
  • 13
    09380-20016 CIRCLIP
    CIRCLIP
  • 14
    09159-16003 NUT, REAR DRIVE OUTPUT YOKE
    NUT, REAR DRIVE OUTPUT YOKE
  • 15
    09159-22005 NUT, SEC DRIVEN GEAR
    NUT, SEC DRIVEN GEAR
  • 16
    09160-16026 WASHER, REAR OUTPUT FLANGE 16X30X3
    WASHER, REAR OUTPUT FLANGE 16X30X3
  • 17
    09181-25051 SHIM, SEC DRIVEN 25X34X0.60
    SHIM, SEC DRIVEN 25X34X0.60
  • 17
    09181-25052 SHIM, SEC DRIVEN 25X34X0.65
    SHIM, SEC DRIVEN 25X34X0.65
  • 17
    09181-25053 SHIM, SEC DRIVEN 25X34X0.70
    SHIM, SEC DRIVEN 25X34X0.70
  • 17
    09181-25054 SHIM, SEC DRIVEN 25X34X0.75
    SHIM, SEC DRIVEN 25X34X0.75
  • 17
    09181-25055 SHIM, SEC DRIVEN 25X34X0.80
    SHIM, SEC DRIVEN 25X34X0.80
  • 17
    09181-25056 SHIM, SEC DRIVEN 25X34X0.85
    SHIM, SEC DRIVEN 25X34X0.85
  • 17
    09181-25057 SHIM, SEC DRIVEN 25X34X0.90
    SHIM, SEC DRIVEN 25X34X0.90
  • 17
    09181-25058 SHIM, SEC DRIVEN 25X34X0.95
    SHIM, SEC DRIVEN 25X34X0.95
  • 17
    09181-25059 SHIM, SEC DRIVEN 25X34X1.00
    SHIM, SEC DRIVEN 25X34X1.00
  • 17
    09181-25060 SHIM, SEC DRIVEN 25X34X1.05
    SHIM, SEC DRIVEN 25X34X1.05
  • 17
    09181-25061 SHIM, SEC DRIVEN 25X34X1.10
    SHIM, SEC DRIVEN 25X34X1.10
  • 17
    09181-25062 SHIM, SEC DRIVEN 25X34X1.15
    SHIM, SEC DRIVEN 25X34X1.15
  • 17
    09181-25063 SHIM, SEC DRIVEN 25X34X1.20
    SHIM, SEC DRIVEN 25X34X1.20
  • 18
    09263-30050 BRG, SEC DRIVEN GEAR, M 30X50X17
    BRG, SEC DRIVEN GEAR, M 30X50X17
  • 19
    09267-25014 25X52X20.6
    25X52X20.6
  • 20
    09283-34008 34X52X9
    34X52X9
  • 21
    09390-50002 RING, SEC DRIVEN BRG, M
    RING, SEC DRIVEN BRG, M
  • 22
    01550-10203 BOLT, PROP SHAFT, RR
    BOLT, PROP SHAFT, RR
