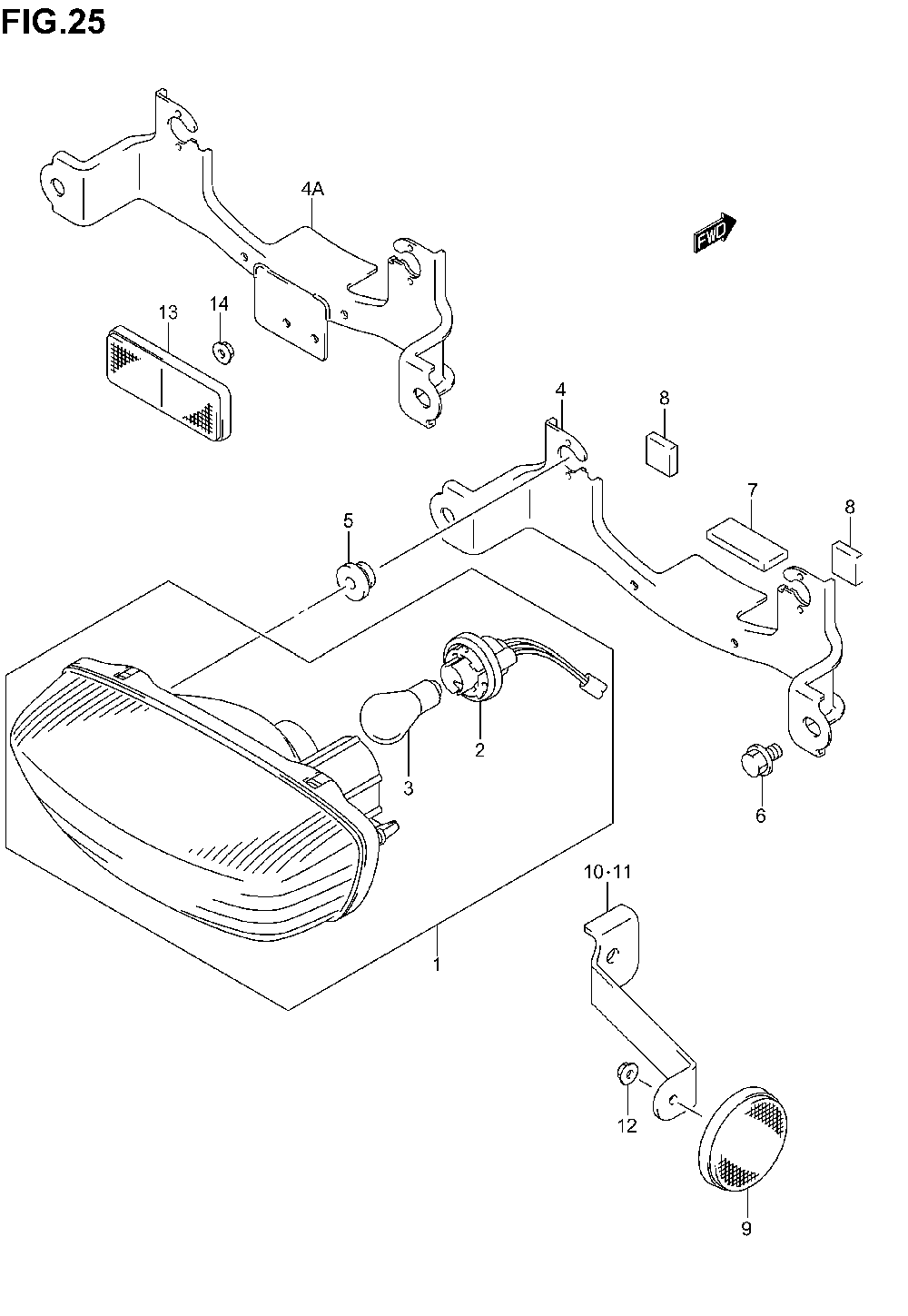

TAILLIGHT ASSY. для Suzuki LT-F250 OZARK - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    35710-03G20 LAMP ASSY, REAR COMB
    LAMP ASSY, REAR COMB
  • 2
    35718-03G00 SOCKET AND CORD ASSY
    SOCKET AND CORD ASSY
  • 3
    09471-12083 BULB (12V,21/5W)
    BULB (12V,21/5W)
  • 4
    35726-05G00 BRACKET, REAR COMB LAMP
    BRACKET, REAR COMB LAMP
  • 4A
    35726-05G20 BRACKET, REAR COMB LAMP (CANADA)
    BRACKET, REAR COMB LAMP (CANADA)
  • 5
    09320-06023 CUSHION
    CUSHION
  • 6
    01550-08123 BOLT
    BOLT
  • 7
    33652-05G10 CUSHION (25X55X8)
    CUSHION (25X55X8)
  • 8
    33652-05G20 CUSHION (17X17X12)
    CUSHION (17X17X12)
  • 9
    35970-14A10 REFLECTOR ASSY, REAR SIDE (CANADA)
    REFLECTOR ASSY, REAR SIDE (CANADA)
  • 10
    35975-05G00 BRACKET, REAR SIDE RR RIGHT HAND (CANADA)
    BRACKET, REAR SIDE RR RIGHT HAND (CANADA)
  • 11
    35976-05G00 BRACKET, REAR SIDE RR LEFT HAND (CANADA)
    BRACKET, REAR SIDE RR LEFT HAND (CANADA)
  • 12
    08316-10053 NUT
    NUT
  • 13
    35970-07F00 REFLECTOR ASSY, REAR (CANADA)
    REFLECTOR ASSY, REAR (CANADA)
  • 14
    08316-10053 NUT (CANADA)
    NUT (CANADA)
