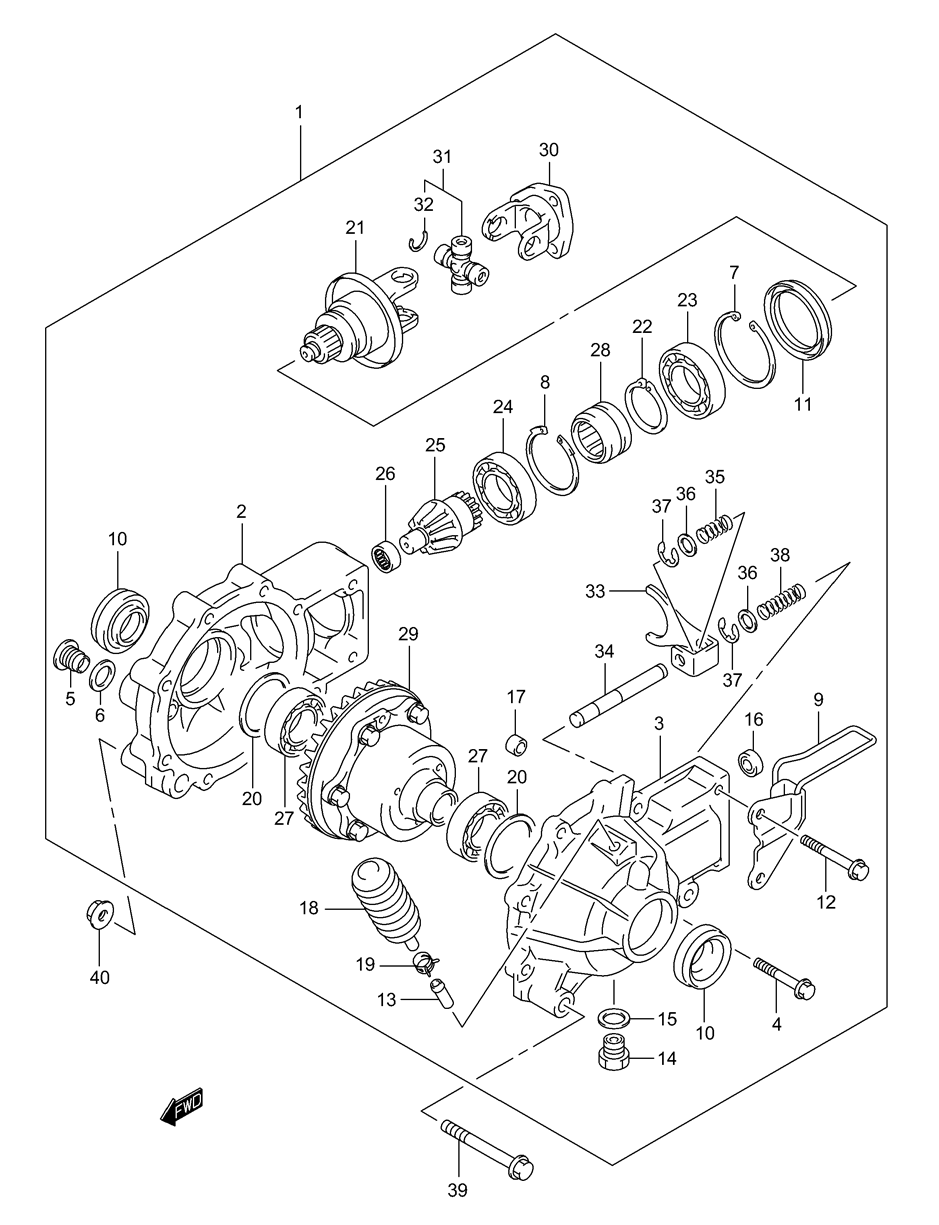

DIFFERENTIAL - FRONT (UP TO 5SAAK46K3X102000) для Suzuki LT-A400F EIGER 4x4 AUTOMATIC - 2003 года выпуска`
-
№АртикулНазвание
-
127400-38F10 CASE ASSY, FRONT DIFFERENTIALCASE ASSY, FRONT DIFFERENTIAL
-
227451-38FA0 HOUSING FINAL DRIVE FRONTHOUSING FINAL DRIVE FRONT
-
327461-38FA0 COVER FINAL DRIVE FRONTCOVER FINAL DRIVE FRONT
-
427401-38FA0 BOLT (8X30)BOLT (8X30)
-
527409-38FA0 PLUGPLUG
-
627407-38FA0 WASHERWASHER
-
727403-38FA0 RING SNAPRING SNAP
-
827403-38FB0 RING SNAPRING SNAP
-
927951-38FA0 BRACKET ASSY, SHIFTBRACKET ASSY, SHIFT
-
1027406-38FA0 OIL SEALOIL SEAL
-
1127406-38FB0 OIL SEALOIL SEAL
-
1227401-38FB0 BOLT (8X50)BOLT (8X50)
-
1309364-08003 PIPE, BRTHRPIPE, BRTHR
-
1427409-38FB0 PLUGPLUG
-
1527407-38FB0 WASHERWASHER
-
1627406-38FC0 OIL SEALOIL SEAL
-
1727404-38FA0 COLLARCOLLAR
-
1827491-38F00 CASE, BREATHERCASE, BREATHER
-
1909401-08411 CLIPCLIP
-
2027445-38FA0 SHIM SETSHIM SET
-
2127130-38FA0 YOKE ASSYYOKE ASSY
-
2227403-38FC0 SNAP RINGSNAP RING
-
2327405-38FA0 BEARINGBEARING
-
2427405-38FB0 BEARINGBEARING
-
2527311-38FA0 PINION, DRIVEPINION, DRIVE
-
2627405-38FC0 BEARINGBEARING
-
2727405-38FD0 BEARINGBEARING
-
2827371-38FA0 SLEEVESLEEVE
-
2927320-38FA0 GEAR ASSYGEAR ASSY
-
3027161-38F20 YOKE, PROP SHAFT JOINT FRONTYOKE, PROP SHAFT JOINT FRONT
-
3127200-19810 JOINT SETJOINT SET
-
3209380-20016 CIRCLIPCIRCLIP
-
3327941-38FA0 FORK, SHIFTFORK, SHIFT
-
3427921-38FA0 ROD, SHIFTROD, SHIFT
-
3527402-38FA0 SPRING SHIFTSPRING SHIFT
-
3627407-38FC0 WASHERWASHER
-
3727403-38FD0 E RINGE RING
-
3827402-38FB0 SPRING, RETURNSPRING, RETURN
-
3909103-10148 BOLT, FRONT DIFFERENTIALBOLT, FRONT DIFFERENTIAL
-
4008319-31107 NUT, FRONT DIFFERENTIALNUT, FRONT DIFFERENTIAL
