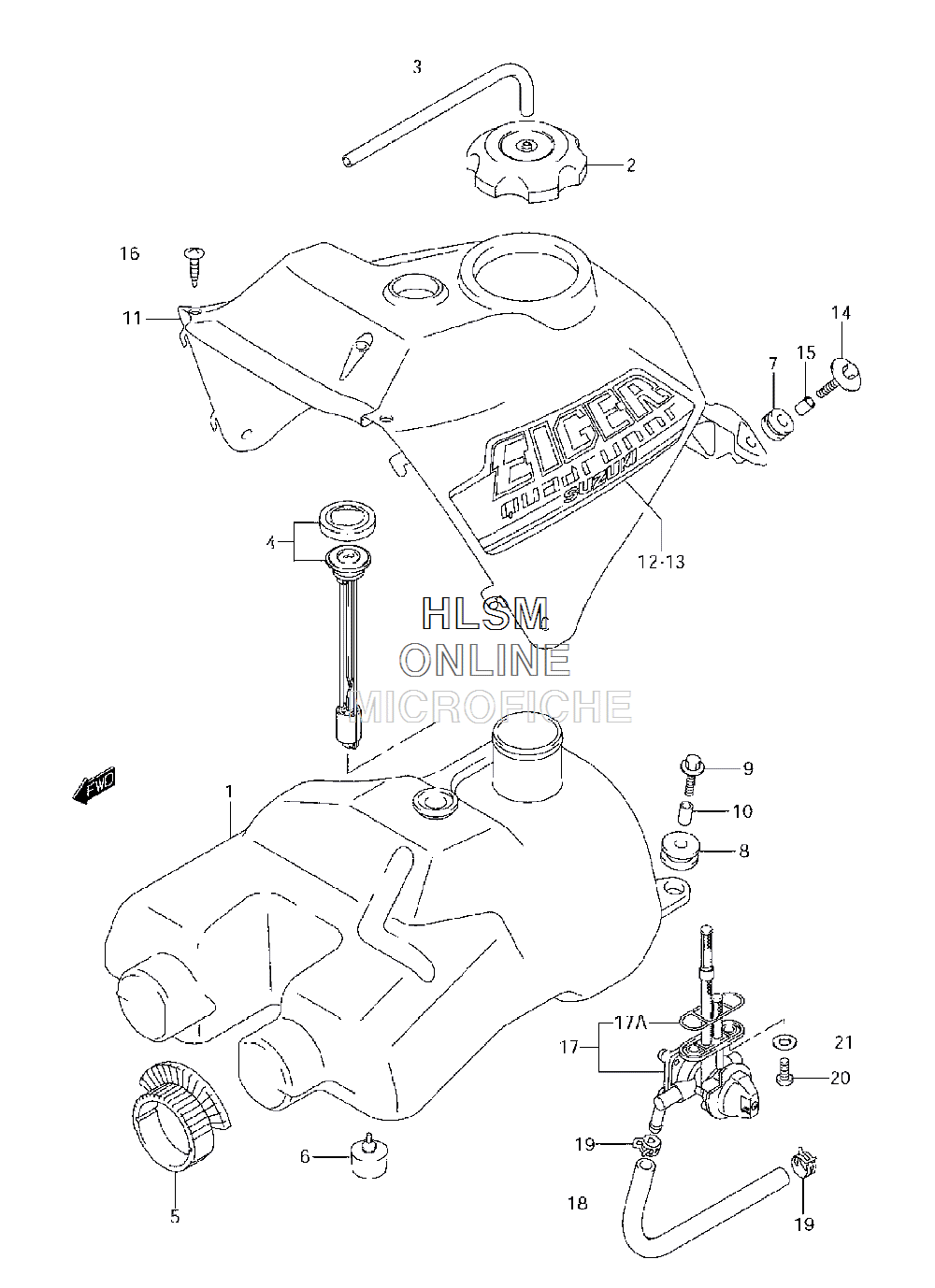

FUEL TANK для Suzuki LT-A400 EIGER 4X2 AUTOMATIC - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-38F00 TANK ASSY, FUEL
    TANK ASSY, FUEL
  • 2
    44200-29F00 CAP ASSY, FUEL TANK
    CAP ASSY, FUEL TANK
  • 3
    09352-50823-600 HOSE, BREATHER (L:600!380)
    HOSE, BREATHER (L:600!380)
  • 4
    44580-38F01 GAUGE ASSY, FUEL LEVEL
    GAUGE ASSY, FUEL LEVEL
  • 5
    44511-38F00 CUSHION, FRONT
    CUSHION, FRONT
  • 6
    44543-38F00 CUSHION, LOWER
    CUSHION, LOWER
  • 7
    45141-09F00 CUSHION, SEAT MOUNT
    CUSHION, SEAT MOUNT
  • 8
    44281-03G00 CUSHION, REAR
    CUSHION, REAR
  • 9
    09116-06050 BOLT
    BOLT
  • 10
    44544-38F00 SPACER
    SPACER
  • 11
    44271-38F00-YT8 COVER, TANK (GREEN) (UP TO FRAME SERIAL 45XK3X10200)
    COVER, TANK (GREEN) (UP TO FRAME SERIAL 45XK3X10200)
  • 11
    44271-38F10-YT8 COVER, TANK (GREEN) (FRAME SERIAL 45XK3X10201 AND ABOVE)
    COVER, TANK (GREEN) (FRAME SERIAL 45XK3X10201 AND ABOVE)
  • 11
    44271-38F00-YT9 COVER, TANK (RED) (UP TO FRAME SERIAL 45XK3X10200)
    COVER, TANK (RED) (UP TO FRAME SERIAL 45XK3X10200)
  • 11
    44271-38F10-YT9 COVER, TANK (RED) (FRAME SERIAL 45XK3X10201 AND ABOVE)
    COVER, TANK (RED) (FRAME SERIAL 45XK3X10201 AND ABOVE)
  • 12
    68111-38F00-YAM EMBLEM, COVER RIGHT HAND (FOR YT8)
    EMBLEM, COVER RIGHT HAND (FOR YT8)
  • 12
    68111-38F00-YAN EMBLEM, COVER RIGHT HAND (FOR YT9)
    EMBLEM, COVER RIGHT HAND (FOR YT9)
  • 13
    68121-38F00-YAM EMBLEM, COVER LEFT HAND (FOR YT8)
    EMBLEM, COVER LEFT HAND (FOR YT8)
  • 13
    68121-38F00-YAN EMBLEM, COVER LEFT HAND (FOR YT9)
    EMBLEM, COVER LEFT HAND (FOR YT9)
  • 14
    01550-06203 BOLT, REAR
    BOLT, REAR
  • 15
    09180-06267 SPACER
    SPACER
  • 16
    03241-15163 SCREW, FRONT
    SCREW, FRONT
  • 17
    44300-38F02 COCK ASSY, FUEL (INC 17A)
    COCK ASSY, FUEL (INC 17A)
  • 17A
    44348-38F00 O RING
    O RING
  • 18
    44421-38F10 HOSE, FUEL (UP TO FRAME SERIAL 45XK3X10200)
    HOSE, FUEL (UP TO FRAME SERIAL 45XK3X10200)
  • 18
    44421-38F20 HOSE, FUEL (FRAME SERIAL 45XK3X10201 AND ABOVE)
    HOSE, FUEL (FRAME SERIAL 45XK3X10201 AND ABOVE)
  • 19
    09401-11407 CLIP
    CLIP
  • 20
    09103-06277 BOLT
    BOLT
  • 21
    09168-06026 GASKET
    GASKET
