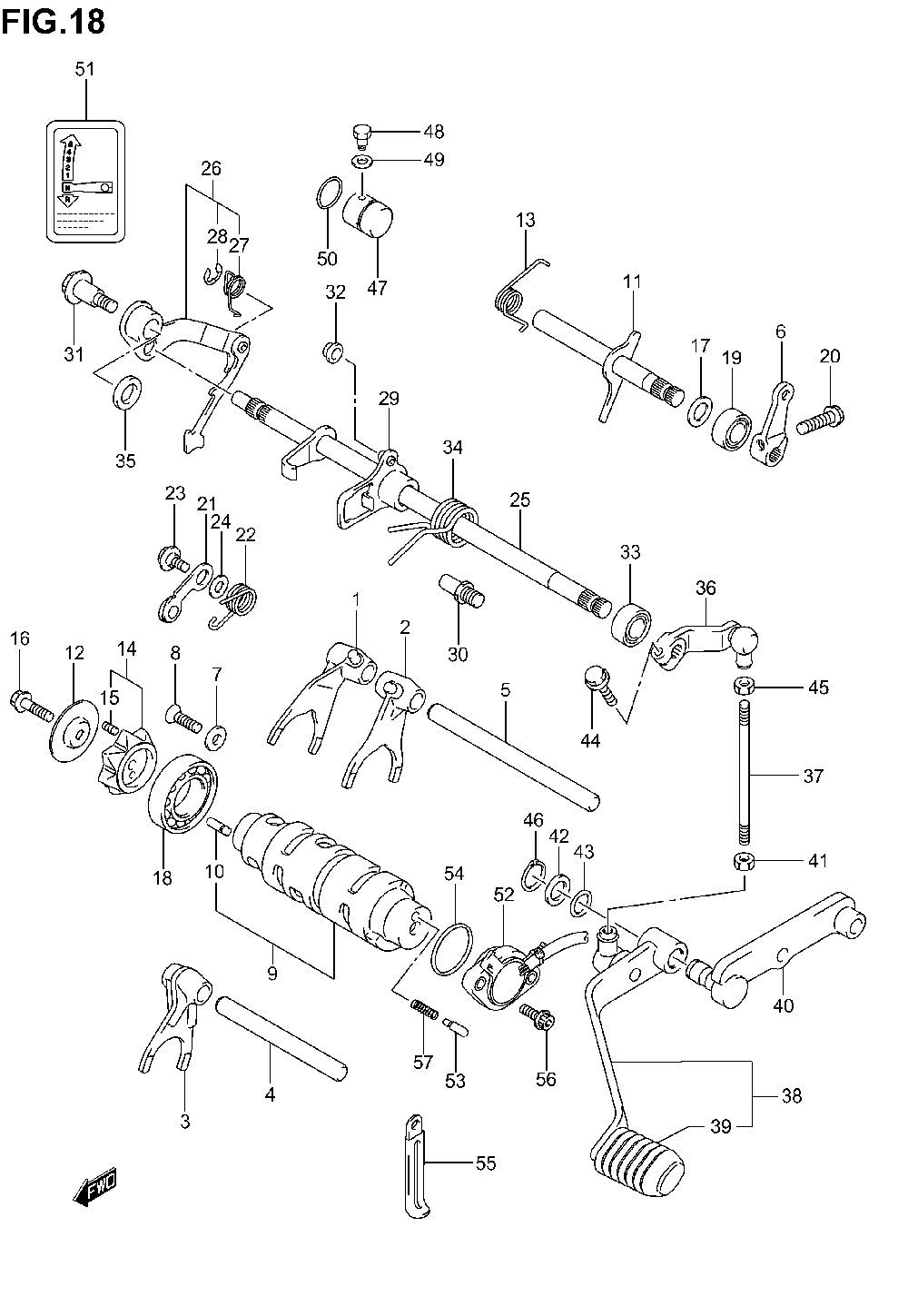

GEAR SHIFTING для Suzuki OZARK 250 - 2002 года выпуска
-
№АртикулНазвание
-
125211-05G00 FORK, GEAR SHIFTING, NO.1FORK, GEAR SHIFTING, NO.1
-
225221-05G00 FORK, GEAR SHIFTING, NO.2FORK, GEAR SHIFTING, NO.2
-
325231-19B00 FORK, GEAR SHIFTING, NO.3FORK, GEAR SHIFTING, NO.3
-
425411-14331 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
525411-24501 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
623271-49110 ARM, SHIFT CAM LOCKARM, SHIFT CAM LOCK
-
724741-20A00 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
809126-06011 SCREW, CAM BEARING (6X12)SCREW, CAM BEARING (6X12)
-
925310-05G00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
1004221-04089 PINPIN
-
1125320-05G01 SHAFT, SHIFT CAM LOCKSHAFT, SHIFT CAM LOCK
-
1225322-05G00 RETAINER, GEAR SHIFT CAMRETAINER, GEAR SHIFT CAM
-
1325328-05G00 SPRING, SHIFT CAM LOCKSPRING, SHIFT CAM LOCK
-
1425380-05G00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1509261-04002 PIN, STOPPERPIN, STOPPER
-
1609103-06084 BOLT, SHIFT CAM (6X25)BOLT, SHIFT CAM (6X25)
-
1709181-12167 WASHER, SHIFT CAM (12X20X1.0)WASHER, SHIFT CAM (12X20X1.0)
-
1809262-25006 BEARING, GEAR SHIFT (25X47X8)BEARING, GEAR SHIFT (25X47X8)
-
1909285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2001500-06207 BOLT, SHIFT CAMBOLT, SHIFT CAM
-
2125350-24B00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
2225355-03G00 SPRING, GEAR SHIFT CAMSPRING, GEAR SHIFT CAM
-
2309111-06041 BOLT, GEAR SHIFT (6X14.3)BOLT, GEAR SHIFT (6X14.3)
-
2408211-06141 WASHERWASHER
-
2525510-05G00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2625520-05G00 ARM, GEAR SHIFT NO.2ARM, GEAR SHIFT NO.2
-
2725527-05G00 SPRINGSPRING
-
2808332-11073 E RINGE RING
-
2925540-05G00 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
3025671-38B00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
3109103-08193 BOLT, GEAR SHIFTBOLT, GEAR SHIFT
-
3209180-07014 ROLLER, GEAR SHIFTROLLER, GEAR SHIFT
-
3309285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
3409444-26025 SPRINGSPRING
-
3508211-08201 WASHERWASHER
-
3625520-05G10 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
3725525-05G00 ROD, GEAR SHIFT LINK (L:105)ROD, GEAR SHIFT LINK (L:105)
-
3825600-05G00 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3925652-24401 RUBBERRUBBER
-
4025670-05G00 PLATE, SHIFT SUPPORTPLATE, SHIFT SUPPORT
-
4109140-06011 NUTNUT
-
4209181-12167 WASHER (12X20X1.0)WASHER (12X20X1.0)
-
4309280-12006 O RING (D:2.2,ID:11.8)O RING (D:2.2,ID:11.8)
-
4401550-06203 BOLTBOLT
-
4508310-00067 NUTNUT
-
4608331-31126 CIRCLIP, GEAR SHIFT LEVERCIRCLIP, GEAR SHIFT LEVER
-
4726442-05G00 PLUG, SPDOMPLUG, SPDOM
-
4809135-06013 BOLT, SPDOM (6X10)BOLT, SPDOM (6X10)
-
4909168-06004 WASHER, SPDOM (6.2X11X1.2)WASHER, SPDOM (6.2X11X1.2)
-
5009280-17004 O RING (D:1.9,ID:16.6)O RING (D:1.9,ID:16.6)
-
5168392-05G00 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
-
5168392-05G10 LABEL, GEAR SHIFT PATTERN (CANADA)LABEL, GEAR SHIFT PATTERN (CANADA)
-
5237720-05G00 BASE ASSY, GEAR SHIFTBASE ASSY, GEAR SHIFT
-
5309209-05011 CONTACTCONTACT
-
5409280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
5509404-06432 CLAMP (L:65)CLAMP (L:65)
-
5607120-05163 BOLTBOLT
-
5709440-04010 SPRING, GEAR SHIFTSPRING, GEAR SHIFT
