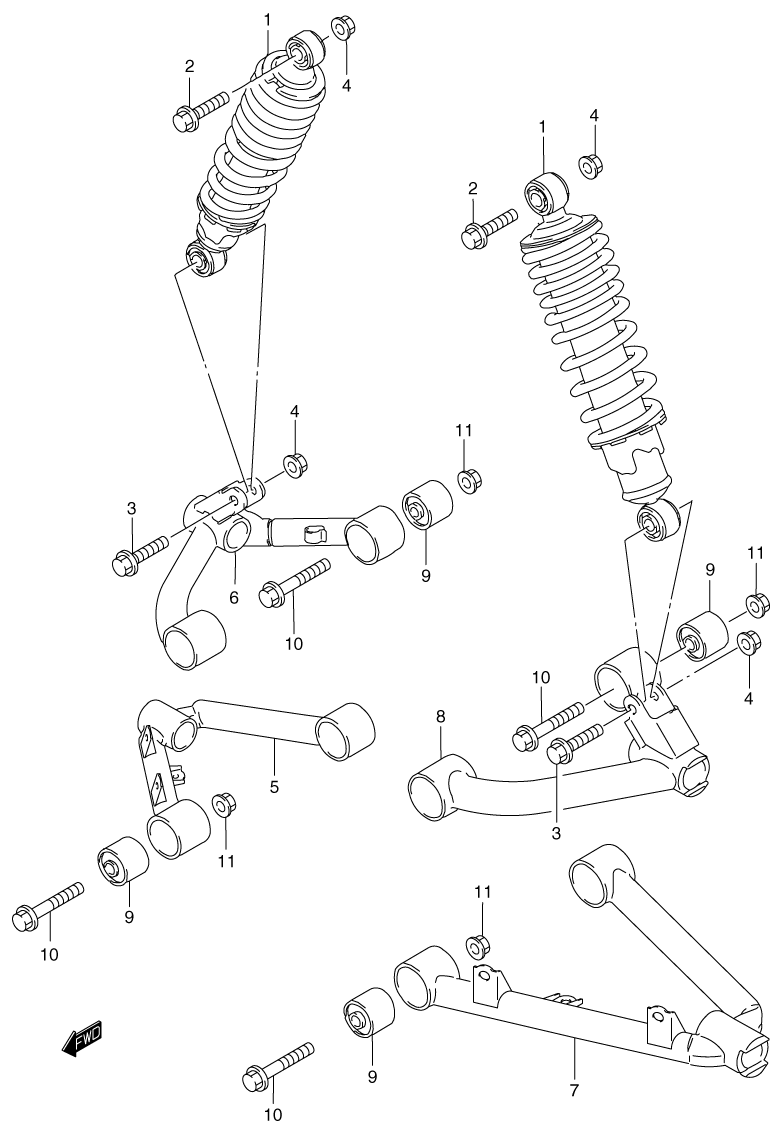

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-F300FK KING QUAD 4x4 - 2002 года выпуска`
-
№АртикулНазвание
-
152100-19B81-019 ABSORBER ASSY., SHOCK (FRONT/BLACK)ABSORBER ASSY., SHOCK (FRONT/BLACK)
-
209103-10019 BOLT, SHOCK ABSORBER UPPER (10X37)BOLT, SHOCK ABSORBER UPPER (10X37)
-
309103-10126 BOLT, SHOCK ABSORBER LOWER (10X48)BOLT, SHOCK ABSORBER LOWER (10X48)
-
408319-31107 NUTNUT
-
552410-39D10 ARM, SUSPENSION LOWER (RIGHT)ARM, SUSPENSION LOWER (RIGHT)
-
652430-19B80 ARM, SUSPENSION UPPER (RIGHT)ARM, SUSPENSION UPPER (RIGHT)
-
752420-39D10 ARM, SUSPENSION LOWER (LEFT)ARM, SUSPENSION LOWER (LEFT)
-
852440-19B80 ARM, SUSPENSION UPPER (LEFT)ARM, SUSPENSION UPPER (LEFT)
-
909319-10055 BUSH, SUSPENSION ARM (10X35.1X38)BUSH, SUSPENSION ARM (10X35.1X38)
-
1009103-10107 BOLT, SUSPENSION ARM PIVOT (10X60BOLT, SUSPENSION ARM PIVOT (10X60
-
1108319-31107 NUTNUT
