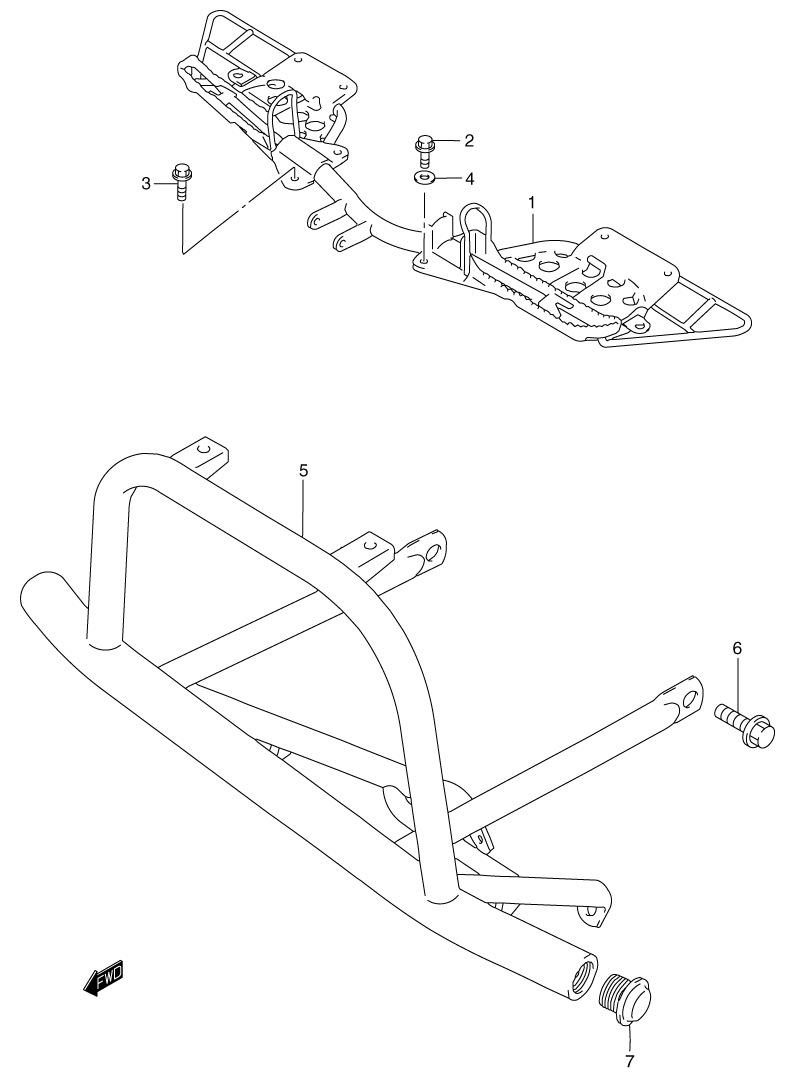

FOOTREST W/ BUMBER для Suzuki LT-F250FK QUADRUNNER 4x4 - 2002 года выпуска
-
№АртикулНазвание
-
1-243510-39DV0 TUBE, FRONT FOOTRESTTUBE, FRONT FOOTREST
-
209103-08171 BOLTBOLT
-
309103-08259 BOLT, FRONT RHBOLT, FRONT RH
-
409160-08501 WASHERWASHER
-
5-343990-39DE0 GRIP, FRONTGRIP, FRONT
-
601550-08163 BOLTBOLT
-
743978-09F00 CAPCAP
