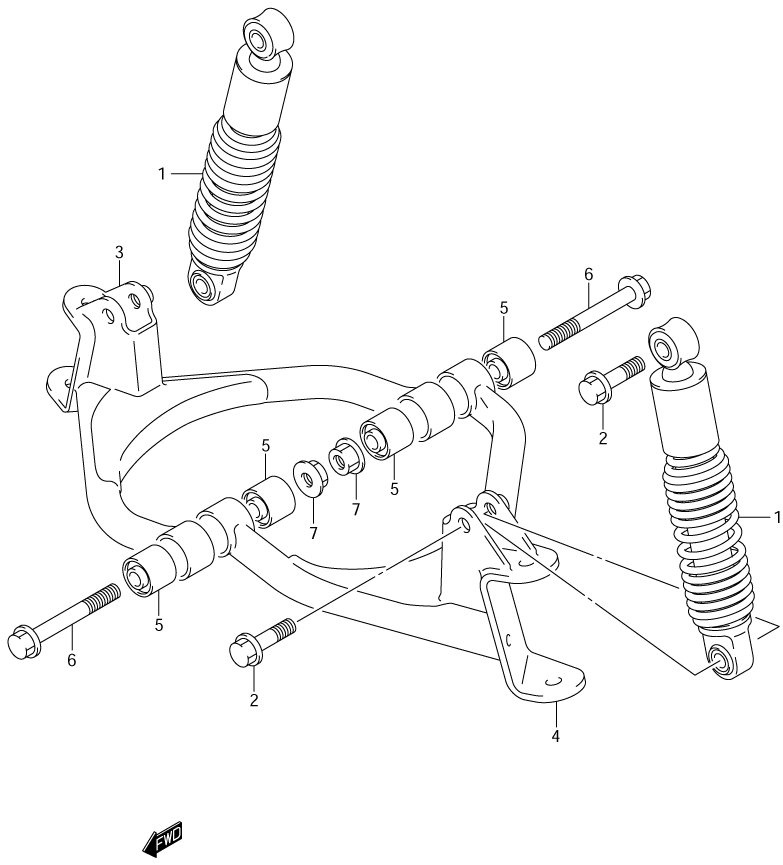

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-A50 QUADSPORT - 2002 года выпуска`
-
№АртикулНазвание
-
152100-43F00-37W ABSORBER ASSY. (FRONT/RED)ABSORBER ASSY. (FRONT/RED)
-
209103-10019 BOLT, ABSORBER (10X37)BOLT, ABSORBER (10X37)
-
352410-43F00-019 ARM, SUSPENSION (RIGHT/BLACK)ARM, SUSPENSION (RIGHT/BLACK)
-
452420-43F00-019 ARM, SUSPENSION (LEFT/BLACK)ARM, SUSPENSION (LEFT/BLACK)
-
509319-10049 BUSH, ARM (10X28.1X28)BUSH, ARM (10X28.1X28)
-
609103-10173 BOLT, SUSPENSION ARM (10X80)BOLT, SUSPENSION ARM (10X80)
-
708316-20103 NUT, SUSPENSION ARMNUT, SUSPENSION ARM
