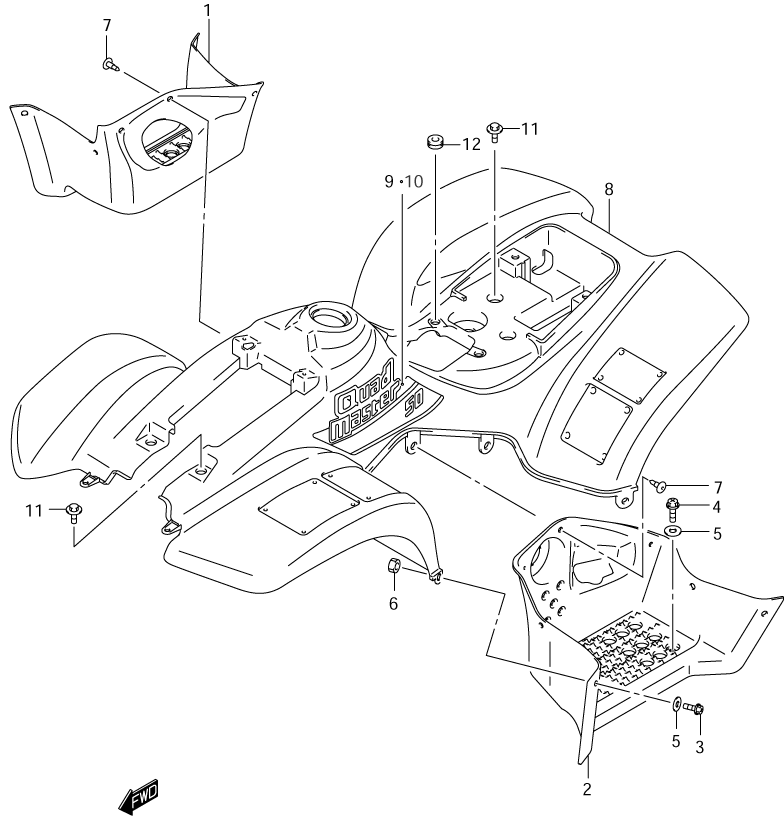

FENDER - FRONT/REAR для Suzuki LT-A50 QUADSPORT - 2002 года выпуска`
-
№АртикулНазвание
-
147111-43F00-291 FENDER (RIGHT/BLACK)FENDER (RIGHT/BLACK)
-
247211-43F00-291 FENDER (LEFT/BLACK)FENDER (LEFT/BLACK)
-
302142-16163 SCREWSCREW
-
402162-06163 BOLTBOLT
-
509160-06079 WASHERWASHER
-
608319-31063 NUTNUT
-
709409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
847311-43F00-YT9 FENDER, CENTER (RED) (YT9)FENDER, CENTER (RED) (YT9)
-
847311-43F00-YU1 FENDER, CENTER (YELLOW) (YU1)FENDER, CENTER (YELLOW) (YU1)
-
968131-43F00-GB4 EMBLEM (RIGHT/RED) (FOR YT9) (FOR RED)EMBLEM (RIGHT/RED) (FOR YT9) (FOR RED)
-
968131-43F00-GB5 EMBLEM (RIGHT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)EMBLEM (RIGHT/CHAMPION YELLOW NO.2) (FOR YU1) (FOR YELLOW)
-
1068141-43F00-GB4 EMBLEM (LEFT/RED) (FOR YT9) (FOR RED)EMBLEM (LEFT/RED) (FOR YT9) (FOR RED)
-
1068141-43F00-GB5 EMBLEM (RIGHT/CHAMPION YELLOW) (FOR YU1) (FOR YELLOW)EMBLEM (RIGHT/CHAMPION YELLOW) (FOR YU1) (FOR YELLOW)
-
1163161-35F00 BOLT, CENTERBOLT, CENTER
-
1209320-12031 CUSHIONCUSHION
