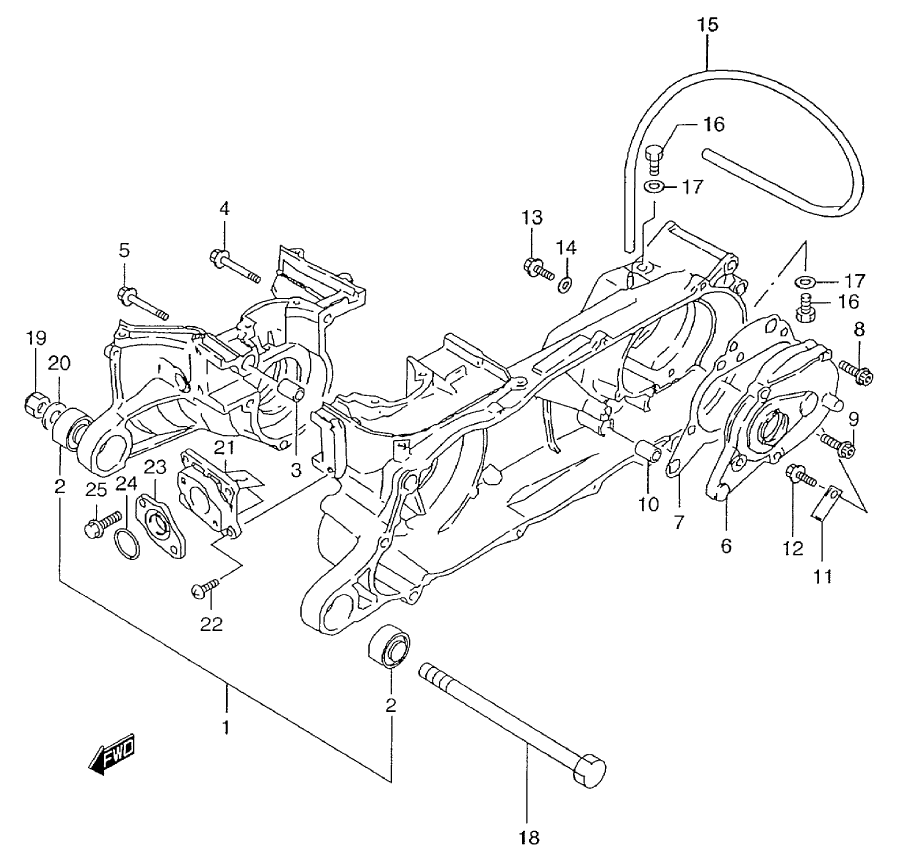

CRANKCASE для Suzuki LT80K1 QUADSPORT - 2001 года выпуска`
-
№АртикулНазвание
-
111301-40821 CRANKCASE SETCRANKCASE SET
-
209319-14005 ...BUSH...BUSH
-
304211-13189 ...PIN...PIN
-
401547-06403 ...BOLT...BOLT
-
501547-06653 ...BOLT...BOLT
-
611430-29811 COVER, GEAR BOXCOVER, GEAR BOX
-
711484-29A20 GASKET, GEAR BOX COVERGASKET, GEAR BOX COVER
-
807120-06253 BOLTBOLT
-
907120-06303 BOLTBOLT
-
1004211-11189 PIN (UP TO ENGINE NO. 190993)PIN (UP TO ENGINE NO. 190993)
-
1004211-11169 PIN (ENGINE NO. 190994 AND ABOVE)PIN (ENGINE NO. 190994 AND ABOVE)
-
1111393-20E00 MAGNET, GEAR BOXMAGNET, GEAR BOX
-
1201570-06123 BOLTBOLT
-
1301550-06123 PLUG, OIL LEVEL (UP TO ENGINE NO. 190993)PLUG, OIL LEVEL (UP TO ENGINE NO. 190993)
-
1309128-06044 PLUG, OIL LEVEL (ENGINE NO. 190994 AND ABOVE)PLUG, OIL LEVEL (ENGINE NO. 190994 AND ABOVE)
-
1409168-06004 GASKETGASKET
-
1509352-50823-600 HOSE, BREATHER (5X8.2X600)HOSE, BREATHER (5X8.2X600)
-
1601550-08163 PLUG, OIL FILLER/DRAINPLUG, OIL FILLER/DRAIN
-
1709168-08008 GASKET (8.2XL4XL)GASKET (8.2XL4XL)
-
1861211-40B01 BOLT, ENGINE MOUNTING (L:216)BOLT, ENGINE MOUNTING (L:216)
-
1908319-21148 NUTNUT
-
2009160-14027 WASHERWASHER
-
2113150-40B00 VALVE ASSY, REEDVALVE ASSY, REED
-
2202112-06163 SCREWSCREW
-
2313129-40B00 INSULATOR, CARBURETORINSULATOR, CARBURETOR
-
2409280-22002 0 RING (D:1.5, ID:22.5)0 RING (D:1.5, ID:22.5)
-
2509128-06071 SCREWSCREW
