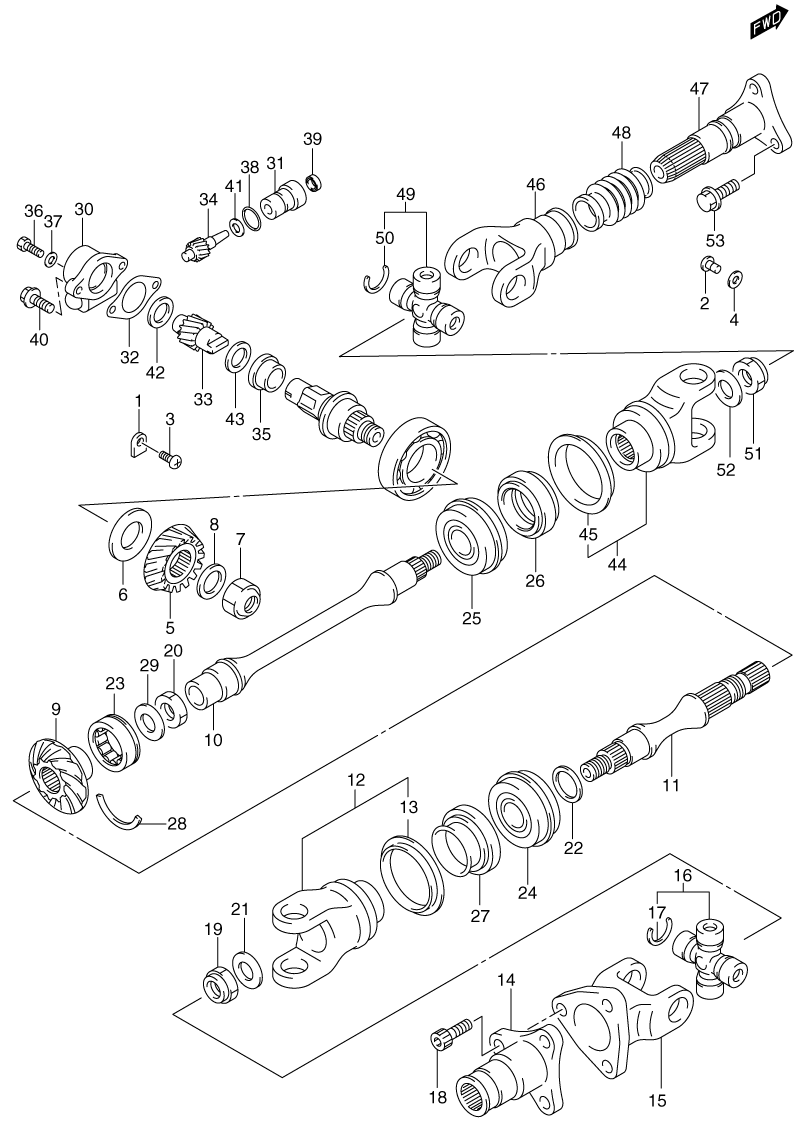

DRIVESHAFT - REAR для Suzuki LT-F500FK1 QUADRUNNER 4x4 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    24741-21A00 RETAINER, SEC DRIVE SFT BRG
    RETAINER, SEC DRIVE SFT BRG
  • 2
    09125-06110 SCREW, SEC DRIVE SFT BRG RTNR
    SCREW, SEC DRIVE SFT BRG RTNR
  • 3
    09125-06110 SCREW, CNTR SHAFT BRG RTNR
    SCREW, CNTR SHAFT BRG RTNR
  • 4
    08211-06165 RETAINER, CNTR SHAFT BRG
    RETAINER, CNTR SHAFT BRG
  • 5
    24911-44D11 GEAR, SEC DRIVE BEVEL
    GEAR, SEC DRIVE BEVEL
  • 6
    24935-19810 SHIM SET, SEC DRIVE BEVEL GR (T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
    SHIM SET, SEC DRIVE BEVEL GR (T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
  • 7
    09140-20012 NUT, SEC DRIVE BEVEL GR
    NUT, SEC DRIVE BEVEL GR
  • 8
    09164-20007 WASHER, SEC DRIVE BEVEL GR (20.1X32X2)
    WASHER, SEC DRIVE BEVEL GR (20.1X32X2)
  • 9
    24921-44D10 GEAR, SEC DRIVEN BEVEL
    GEAR, SEC DRIVEN BEVEL
  • 10
    24960-44D60 SHAFT, SEC DRIVEN,FR
    SHAFT, SEC DRIVEN,FR
  • 11
    24971-44D60 SHAFT, SEC DRIVEN OUTPUT RR
    SHAFT, SEC DRIVEN OUTPUT RR
  • 12
    27130-38F00 YOKE, RR DRIVE OUTPUT
    YOKE, RR DRIVE OUTPUT
  • 13
    27592-38F00 ...PLATE, OUTPUT
    ...PLATE, OUTPUT
  • 14
    27150-38F00 SHAFT, PROPELLER REAR
    SHAFT, PROPELLER REAR
  • 15
    27161-38F10 SHAFT, PROP SHAFT JOINT REAR
    SHAFT, PROP SHAFT JOINT REAR
  • 16
    27200-19810 JOINT SET, UNIVERSAL
    JOINT SET, UNIVERSAL
  • 17
    09380-20016 ...CIRCLIP
    ...CIRCLIP
  • 18
    07130-10203 BOLT, PROP SHAFT REAR
    BOLT, PROP SHAFT REAR
  • 19
    09159-16003 NUT, REAR OUTPUT JOINT
    NUT, REAR OUTPUT JOINT
  • 20
    09159-22005 NUT, SEC DRIVEN GEAR
    NUT, SEC DRIVEN GEAR
  • 21
    09160-16026 WASHER, REAR OUTPUT FRANGE (16X30X3)
    WASHER, REAR OUTPUT FRANGE (16X30X3)
  • 22-1
    09181-25051 SHIM, SEC DRIVEN (25X34X0.6)
    SHIM, SEC DRIVEN (25X34X0.6)
  • 22-2
    09181-25052 SHIM, SEC DRIVEN (25X34X0.65)
    SHIM, SEC DRIVEN (25X34X0.65)
  • 22-3
    09181-25053 SHIM, SEC DRIVEN (25X34X0.70)
    SHIM, SEC DRIVEN (25X34X0.70)
  • 22-4
    09181-25054 SHIM, SEC DRIVEN (25X34X0.75)
    SHIM, SEC DRIVEN (25X34X0.75)
  • 22-5
    09181-25055 SHIM, SEC DRIVEN (25X34X0.80)
    SHIM, SEC DRIVEN (25X34X0.80)
  • 22-6
    09181-25056 SHIM, SEC DRIVEN (25X34X0.85)
    SHIM, SEC DRIVEN (25X34X0.85)
  • 22-7
    09181-25057 SHIM, SEC DRIVEN (25X34X0.90)
    SHIM, SEC DRIVEN (25X34X0.90)
  • 22-8
    09181-25058 SHIM, SEC DRIVEN (25X34X0.95)
    SHIM, SEC DRIVEN (25X34X0.95)
  • 22-9
    09181-25059 SHIM, SEC DRIVEN (25X34X1.00)
    SHIM, SEC DRIVEN (25X34X1.00)
  • 22-10
    09181-25060 SHIM, SEC DRIVEN (25X34X1.05)
    SHIM, SEC DRIVEN (25X34X1.05)
  • 22-11
    09181-25061 SHIM, SEC DRIVEN (25X34X1.10)
    SHIM, SEC DRIVEN (25X34X1.10)
  • 22-12
    09181-25062 SHIM, SEC DRIVEN (25X34X1.15)
    SHIM, SEC DRIVEN (25X34X1.15)
  • 22-13
    09181-25063 SHIM, SEC DRIVEN (25X34X1.20)
    SHIM, SEC DRIVEN (25X34X1.20)
  • 23
    09263-30050 BRG, SEC DRIVEN GEAR,M (30X50X17)
    BRG, SEC DRIVEN GEAR,M (30X50X17)
  • 24
    09267-25006 BRG, SEC DRIVEN OUTPUT SFT FR (25X52X20.6)
    BRG, SEC DRIVEN OUTPUT SFT FR (25X52X20.6)
  • 25
    09267-25006 BRG, SEC DRIVEN OUTPUT SFT RR (25X52X20.6)
    BRG, SEC DRIVEN OUTPUT SFT RR (25X52X20.6)
  • 26
    09283-34008 OIL SEAL, DRIVEN SFT,FR (34X52X9)
    OIL SEAL, DRIVEN SFT,FR (34X52X9)
  • 27
    09283-34008 OIL SEAL, DRIVEN SFT,RR (34X52X9)
    OIL SEAL, DRIVEN SFT,RR (34X52X9)
  • 28
    09390-50002 RING, SEC DRIVEN BRG,M
    RING, SEC DRIVEN BRG,M
  • 29
    08211-22365 WASHER, SEC DRIVEN
    WASHER, SEC DRIVEN
  • 30
    26441-19B01 HOUSING, ODOMETER GEAR
    HOUSING, ODOMETER GEAR
  • 31
    26442-19B00 SLEEVE
    SLEEVE
  • 32
    26451-19B12 GASKET
    GASKET
  • 33
    26461-44D00 GEAR, DRIVE
    GEAR, DRIVE
  • 34
    26471-44D00 GEAR, DRIVEN
    GEAR, DRIVEN
  • 35
    26481-19B00 SPACER, DRIVEN GEAR
    SPACER, DRIVEN GEAR
  • 36
    09135-06013 BOLT, GEAR
    BOLT, GEAR
  • 37
    09168-06004 WASHER, DRIVEN (6.2X11X1.2)
    WASHER, DRIVEN (6.2X11X1.2)
  • 38
    09280-17004 O RING (ID:16.6,DD:1.9)
    O RING (ID:16.6,DD:1.9)
  • 39
    09289-05002 SEAL, DRIVEN GEAR
    SEAL, DRIVEN GEAR
  • 40
    09103-06201 BOLT, GEAR SLV
    BOLT, GEAR SLV
  • 41
    08211-08151 WASHER, DRIVEN GR
    WASHER, DRIVEN GR
  • 42
    08211-15201 WASHER, DRIVE GR
    WASHER, DRIVE GR
  • 43
    08211-17241 WASHER, DRIVE GR,RH
    WASHER, DRIVE GR,RH
  • 44
    27130-38F00 YOKE, FR DRIVE OUTPUT
    YOKE, FR DRIVE OUTPUT
  • 45
    27592-38F00 ...PLATE, OUTPUT
    ...PLATE, OUTPUT
  • 46-1
    27140-38F00 YOKE, PROP SFT JOINT
    YOKE, PROP SFT JOINT
  • 47
    27151-09F70 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 48
    27153-62021 BOOT, PROP SHAFT
    BOOT, PROP SHAFT
  • 49
    27200-19810 JOINT SET, UNIVERSAL
    JOINT SET, UNIVERSAL
  • 50
    09380-20016 ...CIRCLIP
    ...CIRCLIP
  • 51
    09159-16003 NUT, FR YOKE
    NUT, FR YOKE
  • 52
    09160-16026 WASHER, FR DRIVE OUTPUT YOKE (16X30X3)
    WASHER, FR DRIVE OUTPUT YOKE (16X30X3)
  • 53-1
    01550-10203 BOLT, PROPELLER SHAFT
    BOLT, PROPELLER SHAFT
