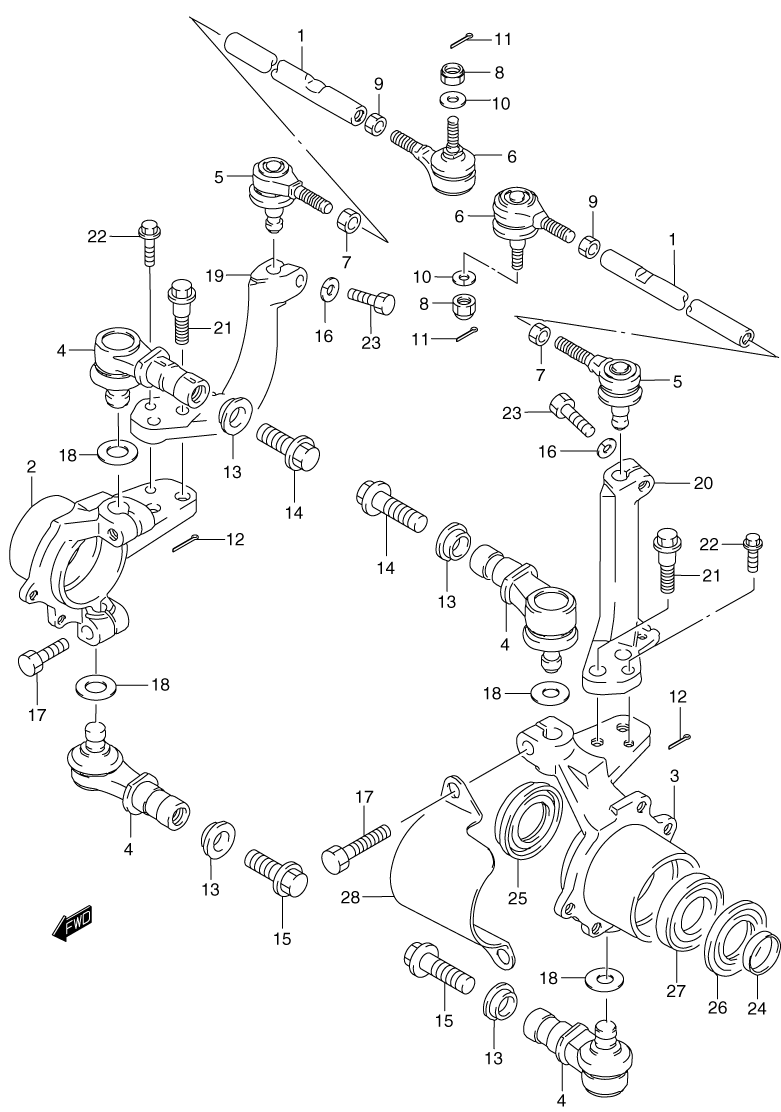

KNUCKLE W/ TIE RODS для Suzuki LT-F300FK1 4X4 - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    51281-22A00 TIE ROD, STEERING
    TIE ROD, STEERING
  • 2
    51231-39D00 KNUCKLE, STEERING (RIGHT)
    KNUCKLE, STEERING (RIGHT)
  • 3
    51241-39D00 KNUCKLE, STEERING (LEFT)
    KNUCKLE, STEERING (LEFT)
  • 4
    51220-19A01 END, KNUCKLE STEERING
    END, KNUCKLE STEERING
  • 5
    51260-19B02 ROD END (RIGHT THREAD)
    ROD END (RIGHT THREAD)
  • 6
    51270-41B01 ROD END (LEFT THREAD)
    ROD END (LEFT THREAD)
  • 7
    09140-10043 NUT, TIE ROD (RIGHT THREAD)
    NUT, TIE ROD (RIGHT THREAD)
  • 8
    08319-21103 NUT, ROD END
    NUT, ROD END
  • 9
    09140-10027 NUT, TIE ROD (LEFT THREAD)
    NUT, TIE ROD (LEFT THREAD)
  • 10
    09162-10008 LOCK WASHER, ROD END
    LOCK WASHER, ROD END
  • 11
    04111-20208 COTTER PIN, ROD END
    COTTER PIN, ROD END
  • 12
    04111-20208 COTTER PIN
    COTTER PIN
  • 13
    52418-24500 STOPPER, KNUCKLE END BOLT
    STOPPER, KNUCKLE END BOLT
  • 14
    09103-14009 BOLT, KNUCKLE END UPPER (14X38)
    BOLT, KNUCKLE END UPPER (14X38)
  • 15
    09103-14008 BOLT, KNUCKLE END LOWER (14X30)
    BOLT, KNUCKLE END LOWER (14X30)
  • 16
    08321-01103 LOCK WASHER, KNUCKLE END
    LOCK WASHER, KNUCKLE END
  • 17
    09100-10225 BOLT, KNUCKLE (10X32)
    BOLT, KNUCKLE (10X32)
  • 18
    09160-14060 WASHER, KNUCKLE END LOWER
    WASHER, KNUCKLE END LOWER
  • 19
    51232-39D00 ARM, KNUCKLE STEERING (RIGHT)
    ARM, KNUCKLE STEERING (RIGHT)
  • 20
    51242-39D00 ARM, KNUCKLE STEERING (LEFT)
    ARM, KNUCKLE STEERING (LEFT)
  • 21
    09111-10040 BOLT, ARM STEERING NO.1 (10X37)
    BOLT, ARM STEERING NO.1 (10X37)
  • 22
    01550-08303 BOLT, ARM STEERING NO.2 (8X30)
    BOLT, ARM STEERING NO.2 (8X30)
  • 23
    09100-10262 BOLT, ARM KNUCKLE TIE-ROD END (10X29)
    BOLT, ARM KNUCKLE TIE-ROD END (10X29)
  • 24
    54731-19B00 SPACER, HUB HEARING
    SPACER, HUB HEARING
  • 25
    09283-38012 DUST SEAL, INNER (38X55X8)
    DUST SEAL, INNER (38X55X8)
  • 26
    09283-38013 DUST SEAL, OUTER (38X55X6.4)
    DUST SEAL, OUTER (38X55X6.4)
  • 27
    08123-60067 BEARING
    BEARING
  • 28-1
    54903-39D00 PROTECTOR, DRIVE SHAFT (RIGHT)
    PROTECTOR, DRIVE SHAFT (RIGHT)
  • 28-2
    54904-39D00 PROTECTOR, DRIVE SHAFT (LEFT)
    PROTECTOR, DRIVE SHAFT (LEFT)
