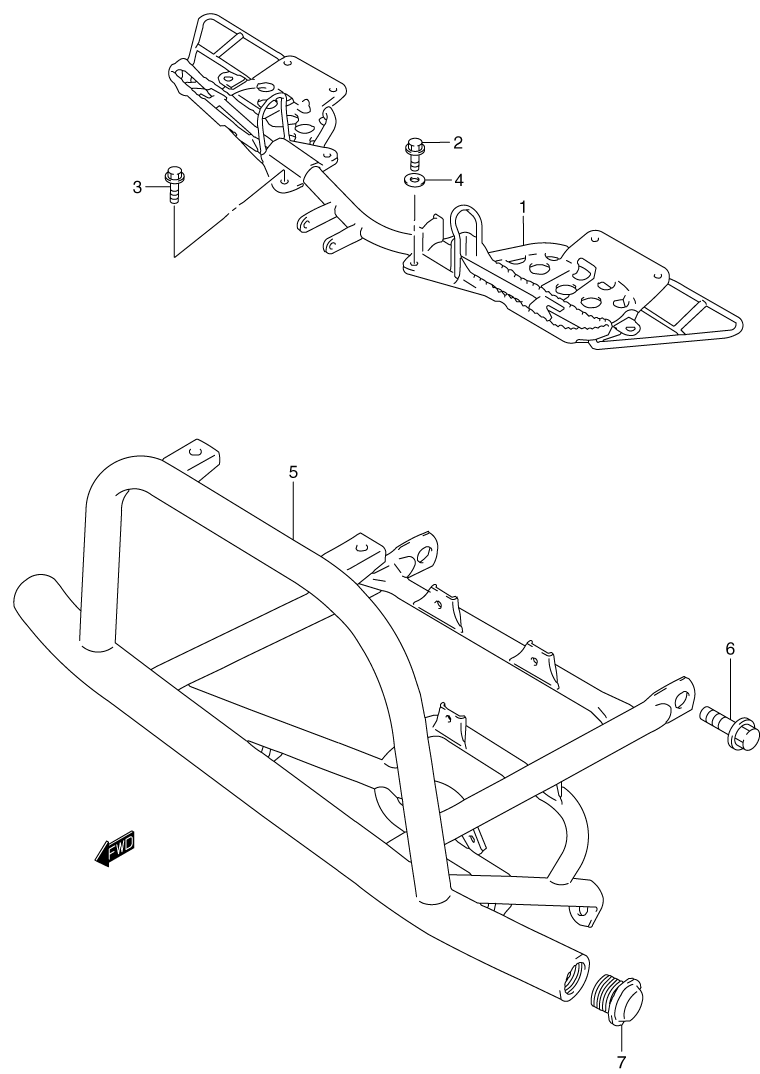

FOOTREST W/ BUMBER для Suzuki LT-F300FY 4X4 - 2000 года выпуска`
-
№АртикулНазвание
-
1-143510-39DA0 TUBE, FOOTREST (FRONT)TUBE, FOOTREST (FRONT)
-
209103-08171 BOLTBOLT
-
309103-08259 BOLT (FRONT/RIGHT)BOLT (FRONT/RIGHT)
-
409160-08501 WASHERWASHER
-
5-143990-39DA0 GRIP (FRONT)GRIP (FRONT)
-
5-243990-39DD0 GRIP (FRONT/CANADA)GRIP (FRONT/CANADA)
-
601550-08163 BOLT, SIDEBOLT, SIDE
-
743978-09F00 CAPCAP
Все узлы модели:
- AIR CLEANER
- BACKUP LAMP (OPTIONAL)
- BATTERY
- BOX - REAR
- BRAKE - FRONT
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARBURETOR
- CARRIER - FRONT / REAR
- CLUTCH
- COOLING FAN (OPTIONAL)
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL GEAR
- DIFFERENTIAL LOCK
- DRIVE SHAFT - FRONT
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- • FOOTREST W/ BUMBER
- FRAME
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - KNUCKLE COVER (OPTIONAL)
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- HEADLAMP COVER
- KNUCKLE W/ TIE RODS
- LABELS
- MAGNETO
- MUFFLER
- OIL COOLER
- OIL PUMP - FUEL PUMP
- OPTIONAL
- SEAT
- SECONDARY GEAR - PROPELLER SHAFT
- SPEEDOMETER
- STARTER - RECOIL
- STARTER CLUTCH
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION (1)
- TRANSMISSION (2)
- TRANSMISSION LEVER
- WHEEL - FRONT
- WHEEL - LEFT REAR
- WHEEL - RIGHT REAR W/ AXLE
