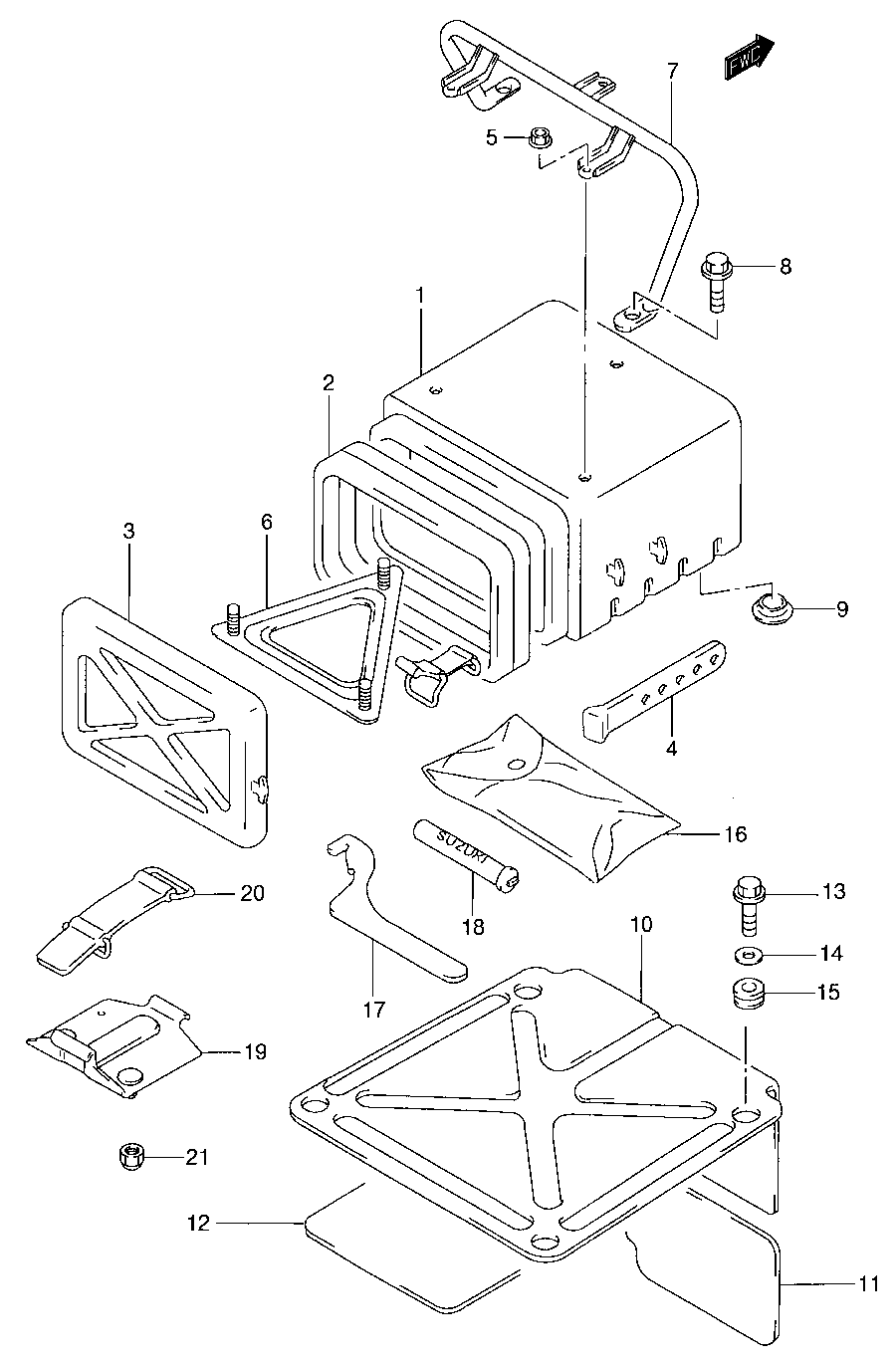

BOX - REAR для Suzuki LT-F250Y QUADRUNNER - 2000 года выпуска`
-
№АртикулНазвание
-
193111-39DA0 BODY BOX (REAR)BODY BOX (REAR)
-
292114-19B00 MOLDINGMOLDING
-
393121-39DA0 LIDLID
-
4-193191-09F00 BANDBAND
-
508316-10063 NUTNUT
-
693230-39DA0 BRACKETBRACKET
-
793240-39DA0 BRACEBRACE
-
809118-06019 BOLT, BRACEBOLT, BRACE
-
909250-10011 PLUGPLUG
-
1047432-19B10 PLATE, HEAT SHIELDPLATE, HEAT SHIELD
-
1147433-19B00 SHIELD, MUFFLER NO.1SHIELD, MUFFLER NO.1
-
1247434-19B00 SHIELD, MUFFLER NO.2SHIELD, MUFFLER NO.2
-
1301550-06163 BOLT, PLATEBOLT, PLATE
-
1409169-06040 WASHERWASHER
-
1509320-08030 CUSHIONCUSHION
-
1609800-21019 TOOL ASSY.TOOL ASSY.
-
17-109822-00004 CLAMP, WRENCHCLAMP, WRENCH
-
18-196200-18A01 GAUGE, AIRGAUGE, AIR
-
1941550-49201 HOLDER, TOOLHOLDER, TOOL
-
2009462-00073 BAND, TOOLBAND, TOOL
-
2108319-31063 NUTNUT
