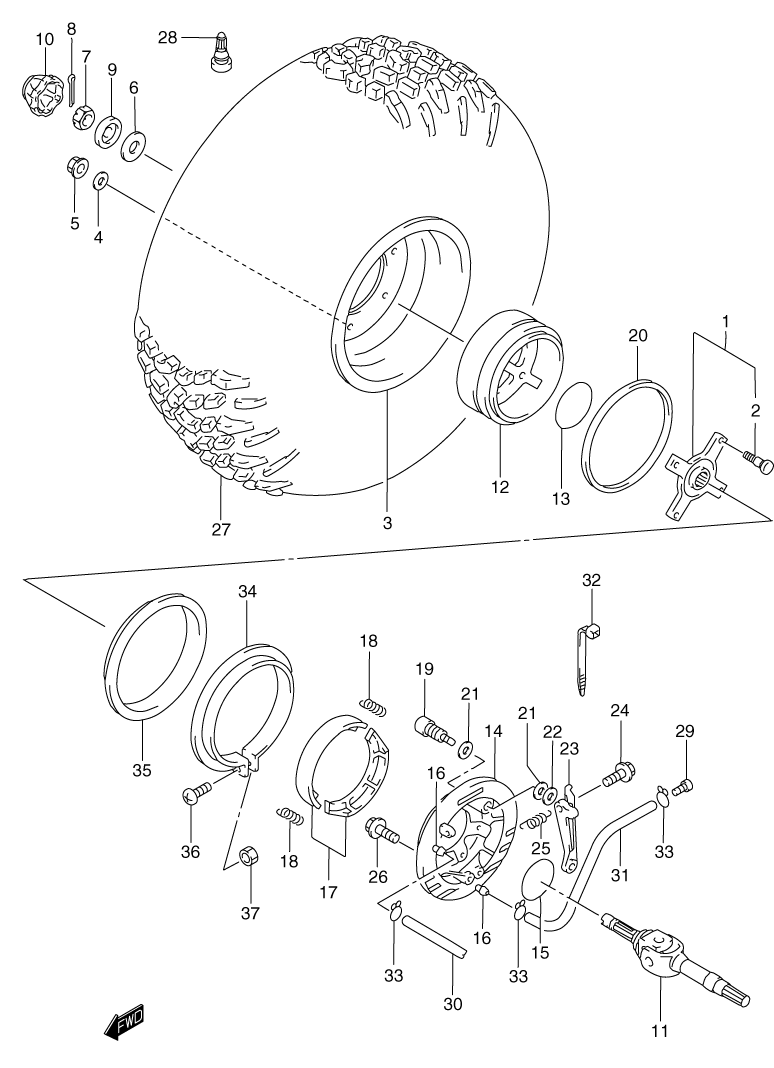

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-F250FY 4X4 - 2000 года выпуска`
-
№АртикулНазвание
-
164110-19B11 HUB, REAR WHEELHUB, REAR WHEEL
-
209119-10045 ...BOLT (10X31.5)...BOLT (10X31.5)
-
365310-19B11-12R RIM, REAR WHEEL (10X9.5AT)RIM, REAR WHEEL (10X9.5AT)
-
409160-10119 WASHER, WHEELWASHER, WHEEL
-
508316-10103 NUTNUT
-
609164-18004 WASHERWASHER
-
709141-18008 NUT, HUBNUT, HUB
-
804111-40408 COTTER PINCOTTER PIN
-
964726-19B00 HOLDER, CAPHOLDER, CAP
-
1054725-39D00 CAP, CENTERCAP, CENTER
-
1164710-19B10 AXLE, REARAXLE, REAR
-
1264120-19B00 DRUM, BRAKEDRUM, BRAKE
-
1309280-80001 O-RING, DRUM (ID:79.8,D:2.40)O-RING, DRUM (ID:79.8,D:2.40)
-
1464210-19B02 PANEL, BRAKE ANCHORPANEL, BRAKE ANCHOR
-
1509280-70010 O-RING, PANEL (ID:69.5,D:2.00)O-RING, PANEL (ID:69.5,D:2.00)
-
1609364-12002 UNIONUNION
-
1764400-19820 SHOE SET, BRAKESHOE SET, BRAKE
-
1855420-30000 SPRING, SHOESPRING, SHOE
-
1964440-19B00 CAM, REAR BRAKECAM, REAR BRAKE
-
2064124-19B00 DUST SEAL, DRUM (182.5X204X13DUST SEAL, DRUM (182.5X204X13
-
2164443-18A00 O-RING (ID:15.9,D:1.9)O-RING (ID:15.9,D:1.9)
-
2209160-16003 WASHERWASHER
-
2364451-19B01 LEVER, CAMLEVER, CAM
-
2401550-06253 BOLTBOLT
-
2509443-13022 SPRINGSPRING
-
2601570-08203 BOLTBOLT
-
27-165100-19B60 TIRE, T/L REAR (AT25X12-10) (DUNLOP)TIRE, T/L REAR (AT25X12-10) (DUNLOP)
-
27-265100-19B40 TIRE, T/L REAR (AT25X12-10) (BRIDGESTONE)TIRE, T/L REAR (AT25X12-10) (BRIDGESTONE)
-
2843130-24A00 VALVE ASSY., WHEEL RIM,TR412VALVE ASSY., WHEEL RIM,TR412
-
2913877-00190 PLUG, DRAIN HOSEPLUG, DRAIN HOSE
-
3009352-11153-00B HOSE, BREATHER (L:2000 -> 990)HOSE, BREATHER (L:2000 -> 990)
-
3109352-11153-600 HOSE, DRAIN (L:600 -> 230)HOSE, DRAIN (L:600 -> 230)
-
3209407-14403 CLAMP, BREATHER HOSECLAMP, BREATHER HOSE
-
3309401-14301 CLIP, HOSECLIP, HOSE
-
3464260-19B00 BRACKET, BRAKE COVERBRACKET, BRAKE COVER
-
3564265-19B00 COVER, REAR BRAKECOVER, REAR BRAKE
-
3602112-04163 SCREWSCREW
-
3708310-00043 NUTNUT
