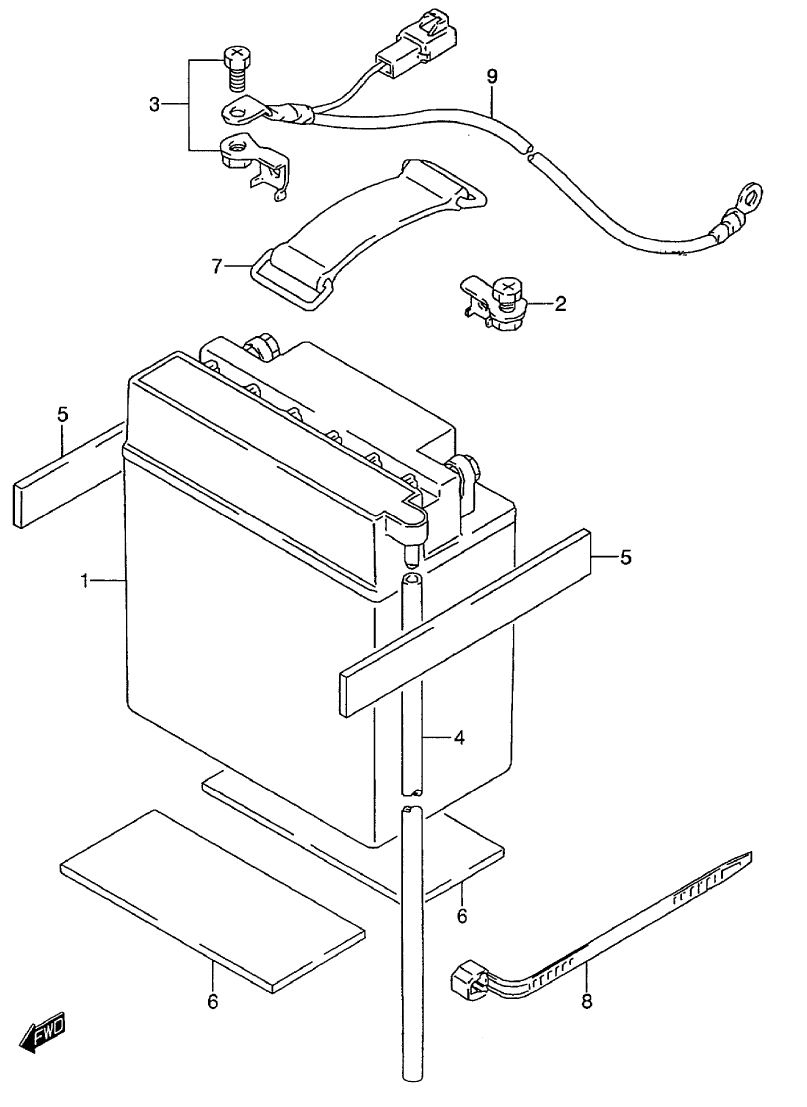

BATTERY для Suzuki LT-F160Y QUADRUNNER - 2000 года выпуска`
-
№АртикулНазвание
-
133610-02C60 BATTERY ASSY (12V,9AH)BATTERY ASSY (12V,9AH)
-
233621-02C00 TERMINAL, BATTERYTERMINAL, BATTERY
-
333622-02C00 TERMINAL, BATTERYTERMINAL, BATTERY
-
433680-16A10 HOSE, BATTERY EXHAUST (LENGTH:780-500)HOSE, BATTERY EXHAUST (LENGTH:780-500)
-
533651-37000 PROTECTOR (170X95X3) (20X130)PROTECTOR (170X95X3) (20X130)
-
633651-37000 PROTECTOR (170X95X3) (50X115)PROTECTOR (170X95X3) (50X115)
-
709462-000E6 BAND, BATTERYBAND, BATTERY
-
809407-14403 CLAW (LENGTH: 125)CLAW (LENGTH: 125)
-
933860-02C00 LEAD WIRE, BATTERY MINUSLEAD WIRE, BATTERY MINUS
