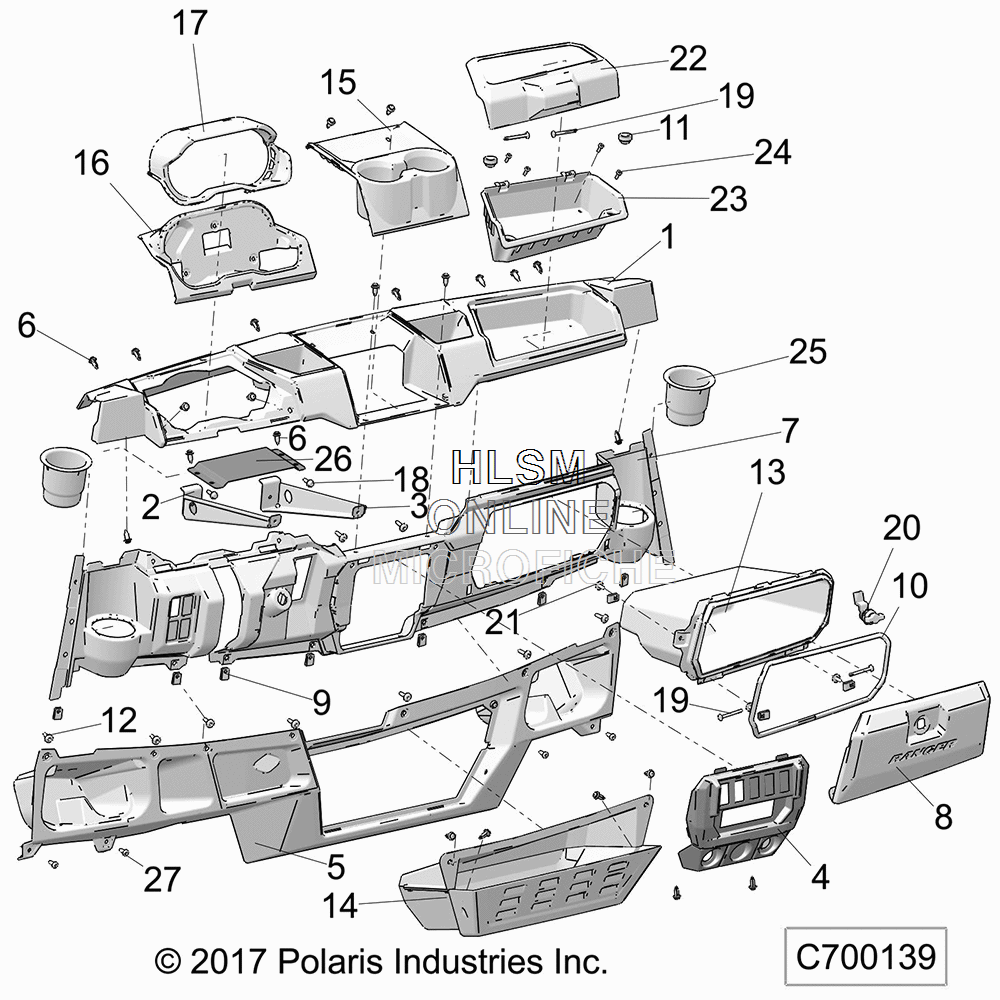

DASH AND GLOVEBOX для Polaris RANGER XP 1000 EPS SUEDE METALLIC (CALIF) (R18RRE99BX) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5453748-070 DASH-UPPER, BLACK (INCL. QTY 8 OF 2)
    DASH-UPPER, BLACK (INCL. QTY 8 OF 2)
  • 2
    5265725 BRKT-DASH, LEFT HAND
    BRKT-DASH, LEFT HAND
  • 3
    5265726 BRKT-DASH, RIGHT HAND
    BRKT-DASH, RIGHT HAND
  • 4
    5453746-070 DASH-CONTROLS, BLACK (INCL. QTY 4 OF 2)
    DASH-CONTROLS, BLACK (INCL. QTY 4 OF 2)
  • 5
    5453747-070 DASH-STORAGE, BLACK
    DASH-STORAGE, BLACK
  • 6
    7661855 RIVET TUFLOK
    RIVET TUFLOK
  • 7
    5453743-070 DASH-MAIN, BLACK
    DASH-MAIN, BLACK
  • 8
    5453744-070 COVER-GLOVEBOX, BLACK
    COVER-GLOVEBOX, BLACK
  • 9
    7547674 NUT-M6-1.0, U-TYPE (2.5-3.8)
    NUT-M6-1.0, U-TYPE (2.5-3.8)
  • 10
    5522237 SEAL-GLOVEBOX
    SEAL-GLOVEBOX
  • 11
    5412504 GROMMET-RUBBER, MOUNT, .25 IN
    GROMMET-RUBBER, MOUNT, .25 IN
  • 12
    7519650 SCREW
    SCREW
  • 13
    5453745-070 BIN-GLOVEBOX, BLACK
    BIN-GLOVEBOX, BLACK
  • 14
    5454154-070 BIN-LOWER, STORAGE, BLACK
    BIN-LOWER, STORAGE, BLACK
  • 15
    5453749-070 DASH-CENTER TRAY, BLACK
    DASH-CENTER TRAY, BLACK
  • 16
    5454158-070 DASH-GAUGE, HOOD, C4, BLACK
    DASH-GAUGE, HOOD, C4, BLACK
  • 17
    5454159-070 DASH-GAUGE, BEZEL, C4, BLACK
    DASH-GAUGE, BEZEL, C4, BLACK
  • 18
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
  • 19
    5439091 PIN-HINGE, GLOVEBOX
    PIN-HINGE, GLOVEBOX
  • 20
    7081425 LATCH-1/4 TURN, CAM
    LATCH-1/4 TURN, CAM
  • 21
    7518936 SCR-M6X1X16 TR/TX-M
    SCR-M6X1X16 TR/TX-M
  • 22
    5453789-070 COVER-UPPER GLOVEBOX, BLACK
    COVER-UPPER GLOVEBOX, BLACK
  • 23
    5453790-070 BIN-UPPER GLOVEBOX, BLACK
    BIN-UPPER GLOVEBOX, BLACK
  • 24
    7518238 SCR-10X5/8-HI/LO, PN-T25, TRX-M
    SCR-10X5/8-HI/LO, PN-T25, TRX-M
  • 25
    5436836 HOLDER-CUP
    HOLDER-CUP
  • 26
    5265727 BRKT-DRIP PLATE
    BRKT-DRIP PLATE
  • 27
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
