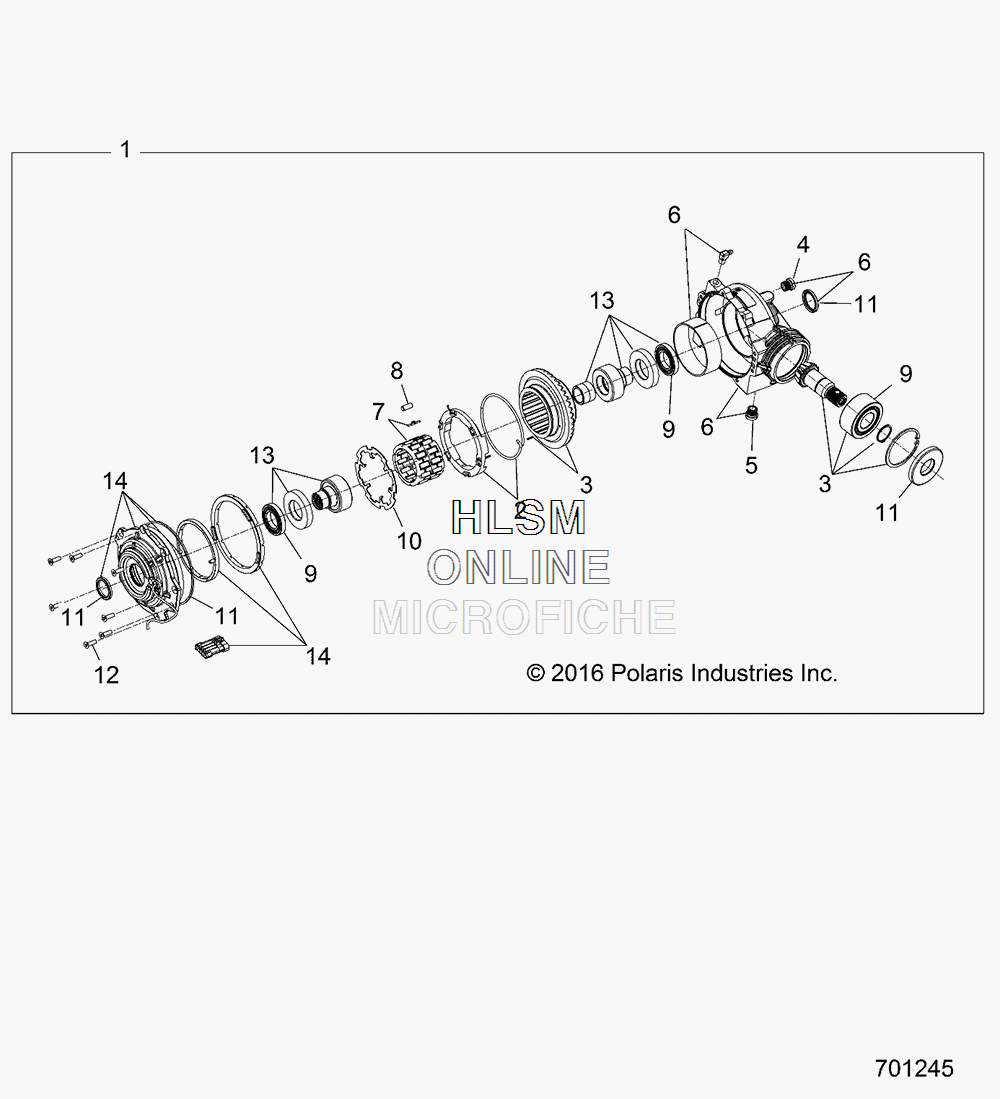

FRONT GEARCASE INTERNALS для Polaris RANGER DIESEL SAGE GREEN (R18RTAD1B1) - 2018 года выпуска
-
№АртикулНазвание
-
11333750 ASSY, FRONT GEARCASE W/2-13 (INCL. ALL)ASSY, FRONT GEARCASE W/2-13 (INCL. ALL)
-
23235712 KIT, SPRING W/TORSION SPRING AND SPRINT RETAINER ASSYKIT, SPRING W/TORSION SPRING AND SPRINT RETAINER ASSY
-
33235711 ASM-GEAR HOUSING AND PINION GEAR W/RING GEAR ASSY,ASM-GEAR HOUSING AND PINION GEAR W/RING GEAR ASSY,
-
42203739 PLUG, FILLPLUG, FILL
-
52203738 PLUG, DRAINPLUG, DRAIN
-
63235440 KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG AND DRAIN PLUGKIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG AND DRAIN PLUG
-
73235917 ASSY, ZN ROLL CAGE W/ROLL CAGE AND SPRING WIRE FOR H-CLIPASSY, ZN ROLL CAGE W/ROLL CAGE AND SPRING WIRE FOR H-CLIP
-
83235624 KIT, ROLLER W/COMPLETE SET OF ROLLERKIT, ROLLER W/COMPLETE SET OF ROLLER
-
93235174 BEARING, PINION W/ALL BEARINGSBEARING, PINION W/ALL BEARINGS
-
103235485 PLATE, ARMATUREPLATE, ARMATURE
-
113235171 KIT, SEAL REPAIR W/ALL SEALSKIT, SEAL REPAIR W/ALL SEALS
-
123235170 KIT, FASTENER W/ALL FASTENERSKIT, FASTENER W/ALL FASTENERS
-
133235169 KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY AND NYLON SPACERKIT, HUB ASSY W/BUSHING, HUB SUB. ASSY AND NYLON SPACER
-
143235168 ASSY, COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY,ASSY, COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY,
