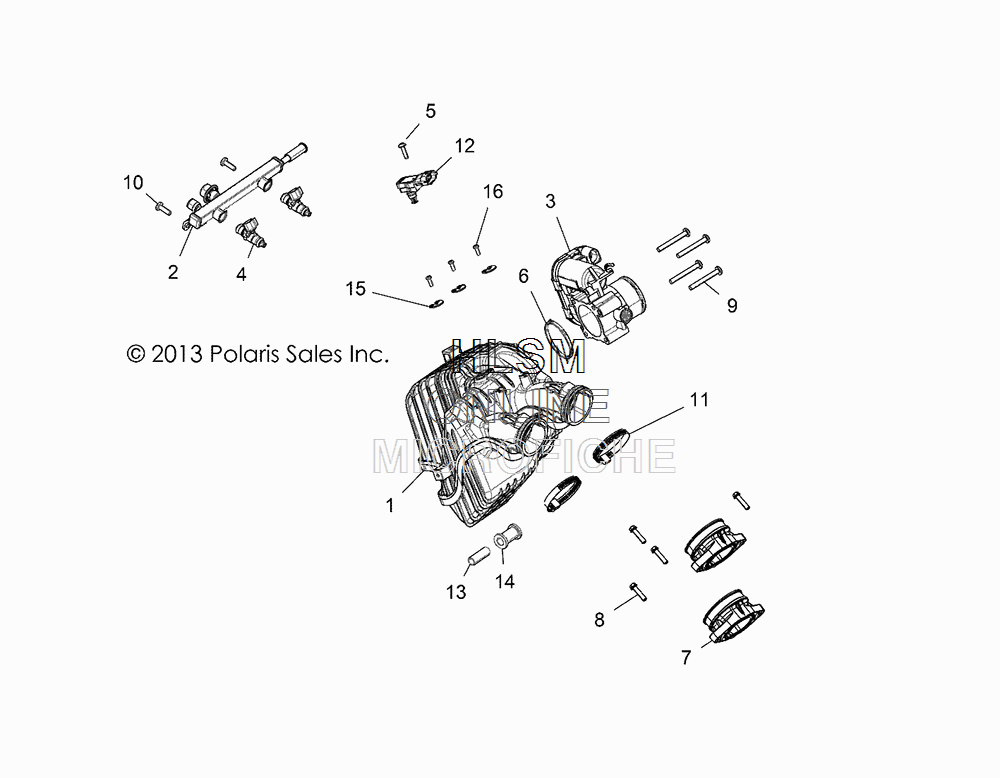

THROTTLE BODY для Polaris RANGER CREW XP 6P 900 SAGE GREEN (R18RVA87A1) - 2018 года выпуска
-
№АртикулНазвание
-
11205773 MANIFOLD-INTAKE, COMPOSITE (INCL. 6, 13, 14)MANIFOLD-INTAKE, COMPOSITE (INCL. 6, 13, 14)
-
21204454 RAIL, FUELRAIL, FUEL
-
31204455 THROTTLE, 46MMTHROTTLE, 46MM
-
42521068 INJ-FUEL, W/ORINGINJ-FUEL, W/ORING
-
57519952 SCREWSCREW
-
65813964 GASKETGASKET
-
71205301 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
87519297 SCREWSCREW
-
97518377 SCREWSCREW
-
107519290 SCREWSCREW
-
117080413 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
122411528 SENSOR, TMAPSENSOR, TMAP
-
135138678 LIMITER, COMPRESSIONLIMITER, COMPRESSION
-
145813965 GROMMETGROMMET
-
155258229 CLIP, INTAKE ROUTINGCLIP, INTAKE ROUTING
-
167519933 SCREW, 4.5MMSCREW, 4.5MM
