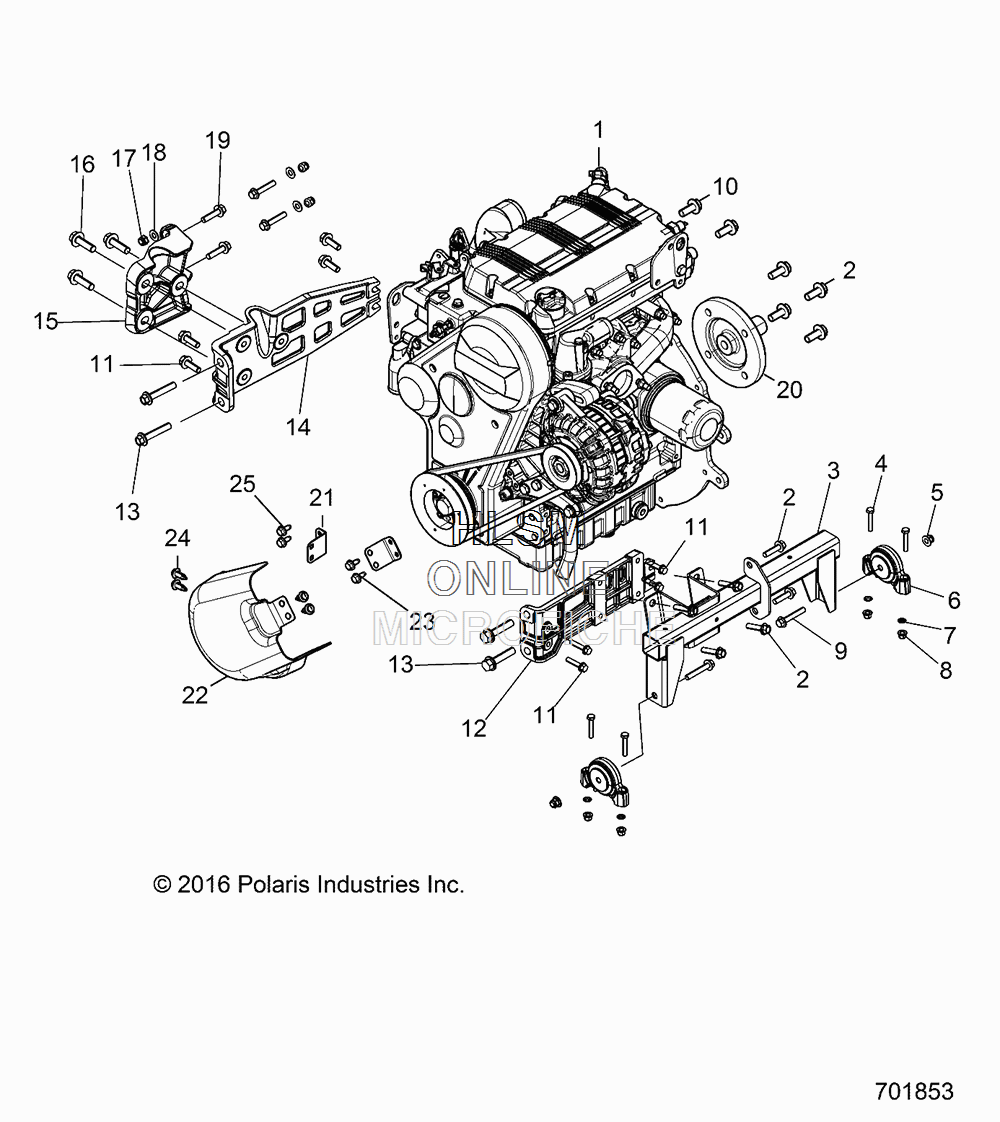

MOUNTING для Polaris RANGER CREW DIESEL SAGE GREEN (R18RVAD1B1) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1205626 ASM-ENG KDW1003-5143
    ASM-ENG KDW1003-5143
  • 2
    7519071 SCREW
    SCREW
  • 3
    1020409-329 MOUNT, ENGINE
    MOUNT, ENGINE
  • 4
    7519097 SCREW
    SCREW
  • 5
    7547333 NUT
    NUT
  • 6
    1332955 MOUNT, ISOLATOR, DRIVELINE
    MOUNT, ISOLATOR, DRIVELINE
  • 7
    7547030 NUT, PAL
    NUT, PAL
  • 8
    7547332 NUT
    NUT
  • 9
    7518563 BOLT
    BOLT
  • 10
    7519133 SCREW
    SCREW
  • 11
    7518514 BOLT
    BOLT
  • 12
    5633200 COUPLER, L, ENGINE, FRONT
    COUPLER, L, ENGINE, FRONT
  • 13
    7520054 SCREW
    SCREW
  • 14
    5633498 COUPLER, ENGINE, GEARCASE
    COUPLER, ENGINE, GEARCASE
  • 15
    5633151 COUPLER, L, ENGINE, GEARCASE
    COUPLER, L, ENGINE, GEARCASE
  • 16
    7519782 SCREW
    SCREW
  • 17
    7547423 NUT
    NUT
  • 18
    7556153 WASHER
    WASHER
  • 19
    7519783 SCREW
    SCREW
  • 20
    5139278 ADAPTOR, CLUTCH, DSL
    ADAPTOR, CLUTCH, DSL
  • 21
    5260915-458 BRKT, BELT GUARD, MOUNT, BLACK
    BRKT, BELT GUARD, MOUNT, BLACK
  • 22
    5452667 COVER, DEBRIS
    COVER, DEBRIS
  • 23
    7518513 BOLT, M6X1.0X15, HXFLG, TAP/T-OD
    BOLT, M6X1.0X15, HXFLG, TAP/T-OD
  • 24
    7661855 RIVET, TUFLOK, .315-.325X.787
    RIVET, TUFLOK, .315-.325X.787
  • 25
    7517704 SCR-HXFL-M6X1.0X12 8.8 ZPB
    SCR-HXFL-M6X1.0X12 8.8 ZPB
