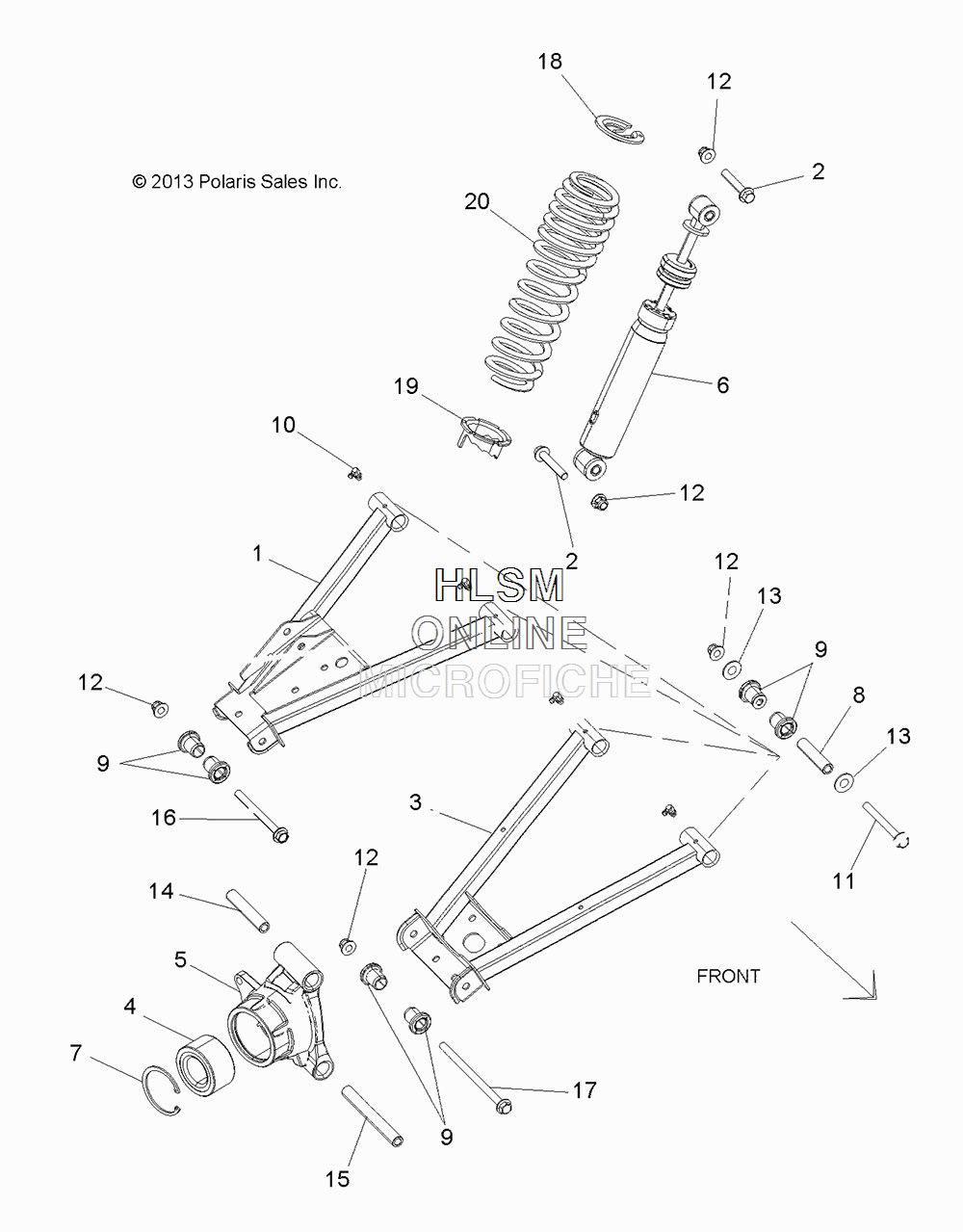

REAR SUSPENSION для Polaris RANGER CREW 570 EPS MD (R18RNE57NV) - 2018 года выпуска`
-
№АртикулНазвание
-
11018992-458 ARM, CONTROL, UPPER, RIGHT HAND, MATTE BLACKARM, CONTROL, UPPER, RIGHT HAND, MATTE BLACK
-
11020797-458 ARM, CONTROL, UPPER, LEFT HAND, MATTE BLACKARM, CONTROL, UPPER, LEFT HAND, MATTE BLACK
-
27518563 BOLTBOLT
-
31018995-458 ARM, CONTROL, LOWER, MATTE BLACKARM, CONTROL, LOWER, MATTE BLACK
-
43514635 BEARING, WHEEL, 40X74X40MMBEARING, WHEEL, 40X74X40MM
-
55138501 CARRIER, BEARING, WHEEL, LEFT HANDCARRIER, BEARING, WHEEL, LEFT HAND
-
55138502 CARRIER, BEARING, WHEEL, RIGHT HANDCARRIER, BEARING, WHEEL, RIGHT HAND
-
67044139 SHOCK, REARSHOCK, REAR
-
77710440 BEARING, WHEELBEARING, WHEEL
-
85138797 SHAFT, PIVOT, 70.99MM, 15.88ODSHAFT, PIVOT, 70.99MM, 15.88OD
-
95439874 BUSHINGBUSHING
-
107080510 SHOCK, REAR, 90 DEGSHOCK, REAR, 90 DEG
-
117519043 BEARING, WHEELBEARING, WHEEL
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137556153 WASHERWASHER
-
145138794 SHOCK, REAR, 89.71MM, 15.88ODSHOCK, REAR, 89.71MM, 15.88OD
-
155138796 SHAFT, PIVOT, 139.1MM, 15.88ODSHAFT, PIVOT, 139.1MM, 15.88OD
-
167518566 BOLTBOLT
-
177519042 SCREWSCREW
-
185251753 RETAINER, SPRING, STEELRETAINER, SPRING, STEEL
-
195253768 CAM, ADJUSTING, SPRING, STEELCAM, ADJUSTING, SPRING, STEEL
-
207043885-385 SPRING-REAR, CLOUD SILVERSPRING-REAR, CLOUD SILVER
