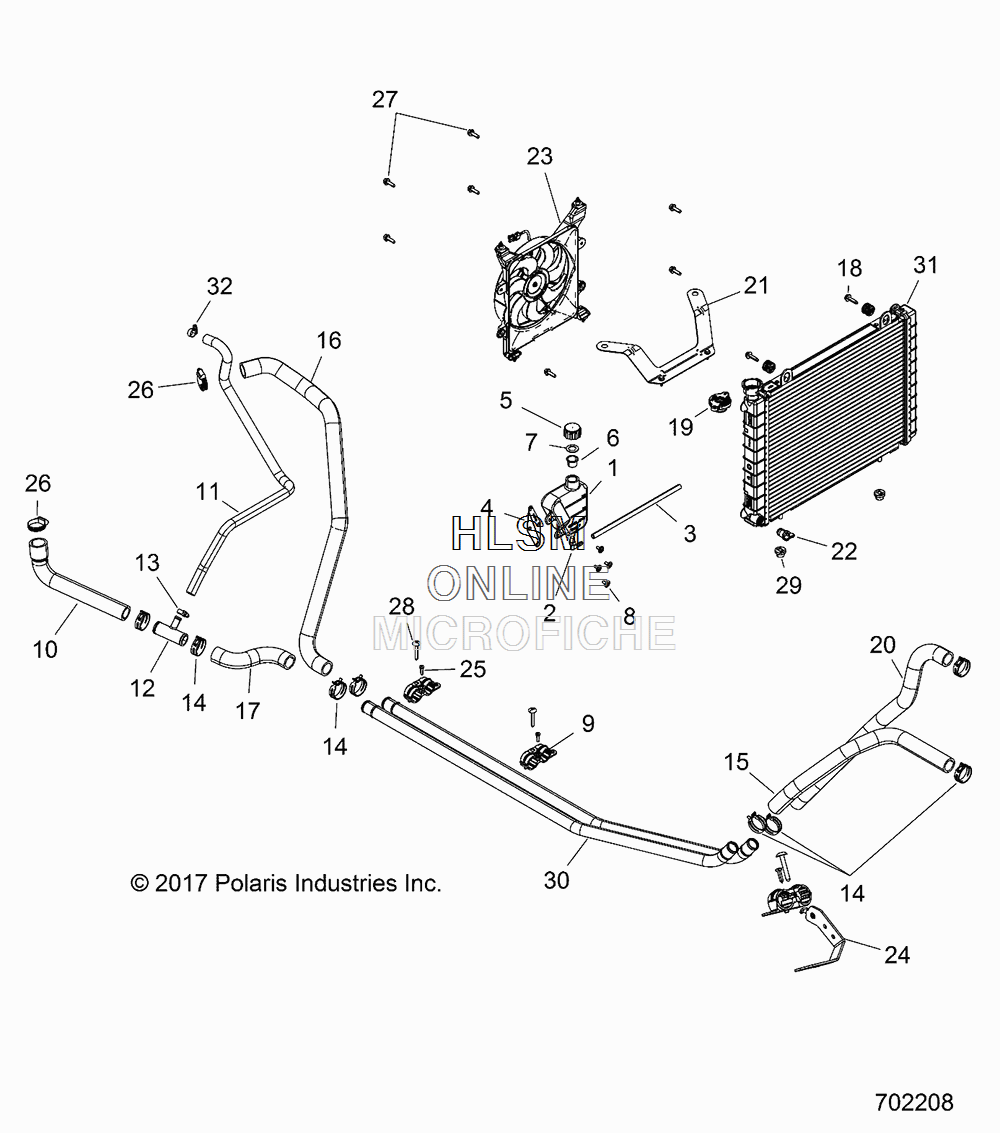

COOLING SYSTEM для Polaris RANGER CREW 570-4 EPS NAVY BLUE MATELLIC (R18RNE57BV) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5436936 TANK, SURGE
    TANK, SURGE
  • 2
    7052065 FITTING, 90 DEG
    FITTING, 90 DEG
  • 3
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
  • 4
    5254763 BRACKET, SURGE TANK
    BRACKET, SURGE TANK
  • 5
    5430743 CAP, OVER FLOW BOTTLE, DRILLED
    CAP, OVER FLOW BOTTLE, DRILLED
  • 6
    5433774 PLUG, CAP
    PLUG, CAP
  • 7
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 8
    7512084 SCREW
    SCREW
  • 9
    5451221 BRACKET, COOLANT TUBE
    BRACKET, COOLANT TUBE
  • 10
    5414162 HOSE, BYPASS, 1 IN, FORMED
    HOSE, BYPASS, 1 IN, FORMED
  • 11
    5414590 HOSE, BYPASS, 1/2 IN, FORMED
    HOSE, BYPASS, 1/2 IN, FORMED
  • 12
    7052530 CONNECTOR, TEE
    CONNECTOR, TEE
  • 13
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    7080843 CLAMP, SPRINGBAND, BROWN
    CLAMP, SPRINGBAND, BROWN
  • 15
    5416387 HOSE, LOWER, RADIATOR
    HOSE, LOWER, RADIATOR
  • 16
    5415053 HOSE, ENGINE OUTLET, REAR
    HOSE, ENGINE OUTLET, REAR
  • 17
    5415054 HOSE, LOWER, ENGINE, SHORT
    HOSE, LOWER, ENGINE, SHORT
  • 18
    7518529 SCREW (INCL 19-20)
    SCREW (INCL 19-20)
  • 19
    7512026 SCREW
    SCREW
  • 20
    1240899 CAP, PRESSURE
    CAP, PRESSURE
  • 21
    5416386 HOSE, UPPER, RADIATOR
    HOSE, UPPER, RADIATOR
  • 22
    5260846-458 BRKT-RADIATOR MOUNT, BLACK
    BRKT-RADIATOR MOUNT, BLACK
  • 23
    7052617 VALVE-PLASTIC RAD/COOLER DRAIN
    VALVE-PLASTIC RAD/COOLER DRAIN
  • 24
    2413196 FAN-ASSEMBLY, SHROUD
    FAN-ASSEMBLY, SHROUD
  • 25
    5265091-329 BRKT-COOLANT TUBE MNT, BLACK
    BRKT-COOLANT TUBE MNT, BLACK
  • 26
    7081192 CLAMP, HOSE, 25-40MM
    CLAMP, HOSE, 25-40MM
  • 27
    7516822 SCREW
    SCREW
  • 28
    7519001 SCREW
    SCREW
  • 29
    7052028 GROMMET-FLANGED
    GROMMET-FLANGED
  • 30
    5141421 TUBE-COOLANT, 1 IN, CREW
    TUBE-COOLANT, 1 IN, CREW
  • 31
    1240955 ASM-RADIATOR
    ASM-RADIATOR
  • 31
    1240956 ASM-RADIATOR, CORE
    ASM-RADIATOR, CORE
  • 32
    7080474 CLAMP-HOSE, .875-SS
    CLAMP-HOSE, .875-SS
