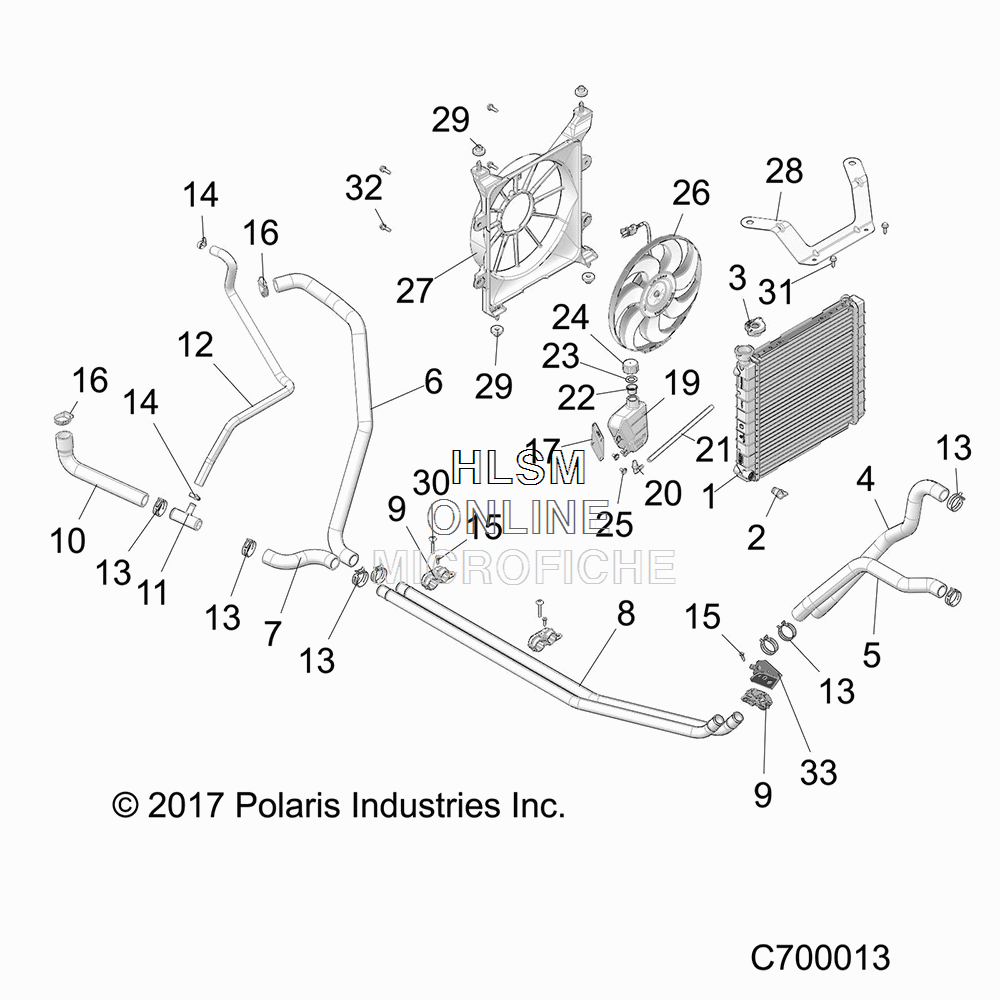

COOLING SYSTEM для Polaris RANGER 500 SOLAR RED (R18RMA50B4) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1240956 ASM., RADIATOR, CORE
    ASM., RADIATOR, CORE
  • 2
    7052617 VALVE, PLASTIC RADIATOR/COOLER DRAIN
    VALVE, PLASTIC RADIATOR/COOLER DRAIN
  • 3
    1240899 CAP, PRESSURE
    CAP, PRESSURE
  • 4
    5416386 HOSE, UPPER, RADIATOR
    HOSE, UPPER, RADIATOR
  • 5
    5416387 HOSE, LOWER, RADIATOR
    HOSE, LOWER, RADIATOR
  • 6
    5415053 HOSE, ENGINE OUTLET, REAR
    HOSE, ENGINE OUTLET, REAR
  • 7
    5415054 HOSE, LOWER, ENGINE, SHORT
    HOSE, LOWER, ENGINE, SHORT
  • 8
    5141420 TUBE-COOLANT, 1 IN,
    TUBE-COOLANT, 1 IN,
  • 9
    5451221 BRACKET, COOLANT TUBE
    BRACKET, COOLANT TUBE
  • 10
    5414162 HOSE, BYPASS, 1 IN, FORMED
    HOSE, BYPASS, 1 IN, FORMED
  • 11
    7052530 CONNECTOR, TEE
    CONNECTOR, TEE
  • 12
    5414590 HOSE BYPASS, 1/2 INCH, FORMED
    HOSE BYPASS, 1/2 INCH, FORMED
  • 13
    7080843 CLAMP, SPRINGBAND, BROWN
    CLAMP, SPRINGBAND, BROWN
  • 14
    7080474 CLAMP HOSE
    CLAMP HOSE
  • 15
    7512026 SCR-#10X3/4-HI/LO-PN-T25, TRX-M
    SCR-#10X3/4-HI/LO-PN-T25, TRX-M
  • 16
    7081192 CLAMP, HOSE, 25-40MM
    CLAMP, HOSE, 25-40MM
  • 17
    5254763 BRKT, SURGE TANK
    BRKT, SURGE TANK
  • 19
    5436936 SURGE TANK
    SURGE TANK
  • 20
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 21
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
  • 22
    5433774 PLUG, CAP (INCL. 24)
    PLUG, CAP (INCL. 24)
  • 23
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 24
    5430743 CAP, OVERFLOW BOTTLE, DRILLED
    CAP, OVERFLOW BOTTLE, DRILLED
  • 25
    7512084 SCREW
    SCREW
  • 26
    2413196 ASM., FAN, SHROUD (INCL. 27)
    ASM., FAN, SHROUD (INCL. 27)
  • 28
    5260846-458 BRKT-RAD MNT, BLACK
    BRKT-RAD MNT, BLACK
  • 29
    7052028 GROMMET, FLANGED36X56X1.06
    GROMMET, FLANGED36X56X1.06
  • 30
    7519001 SCREW
    SCREW
  • 31
    7518529 SCREW
    SCREW
  • 32
    7516822 SCREW
    SCREW
  • 33
    5265091-329 BRKT-COOLANT TUBE MNT, BLACK
    BRKT-COOLANT TUBE MNT, BLACK
