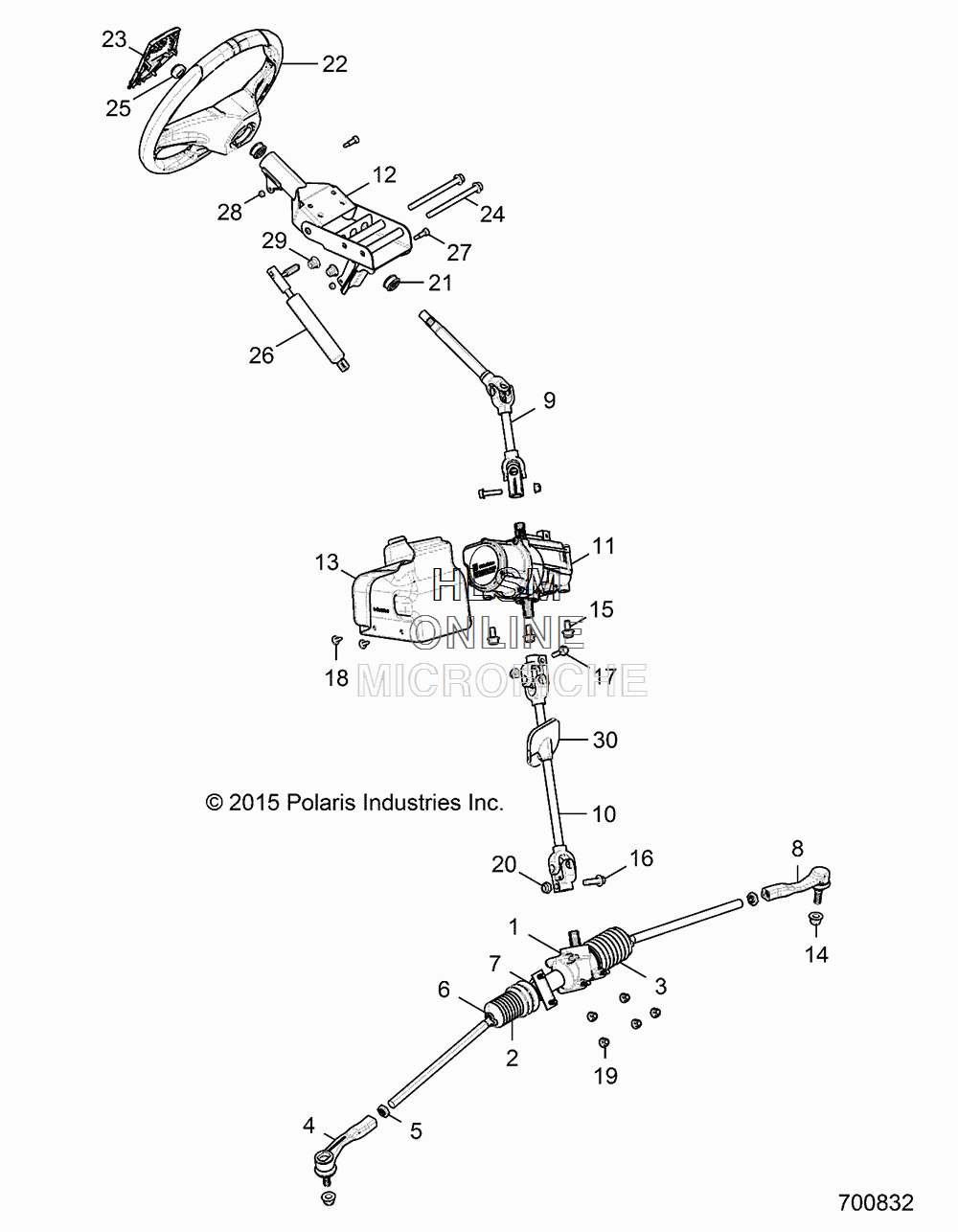

STEERING ASM. для Polaris GENERAL 4 1000 EPS RIDE COMMAND EDITION MATTE SUNSET RED (R18RHK99BS) - 2018 года выпуска`
-
№АртикулНазвание
-
11823994 ASM-GEAR BOX, STEERING (INCL. 2-8)ASM-GEAR BOX, STEERING (INCL. 2-8)
-
25412012 D.S. BELLOWSD.S. BELLOWS
-
35412013 P.S. BELLOWSP.S. BELLOWS
-
47061216 TIE ROD, OUTER RIGHT HANDTIE ROD, OUTER RIGHT HAND
-
52205058 NUT, JAMNUT, JAM
-
67082150 CLAMP, SMALLCLAMP, SMALL
-
77080979 CLAMP, LARGECLAMP, LARGE
-
87061215 TIE ROD, OUTER LEFT HANDTIE ROD, OUTER LEFT HAND
-
91824438 SHAFT-STEERING, UPPER, EPSSHAFT-STEERING, UPPER, EPS
-
101824439 SHAFT-STEERING LOWER, EPSSHAFT-STEERING LOWER, EPS
-
112413483 ASM-POWER STEERING, RZR, 2.0TASM-POWER STEERING, RZR, 2.0T
-
121824420-458 ASM-TILT, STEERING, RVTD, M10, BLACKASM-TILT, STEERING, RVTD, M10, BLACK
-
135452850 COVER-EPSCOVER-EPS
-
147547334 NUTNUT
-
157518558 BOLTBOLT
-
167518644 SCREWSCREW
-
177520943 SCR-HXFL-M8X1.25X35 10.9 ZCSCR-HXFL-M8X1.25X35 10.9 ZC
-
187518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
197547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
207547385 NUTNUT
-
217556675 BUSHING, STEERINGBUSHING, STEERING
-
221824014 WHEEL-STEERINGWHEEL-STEERING
-
235451356 CAP-STEERING WHEELCAP-STEERING WHEEL
-
247518665 BOLTBOLT
-
257547506 NUTNUT
-
267044098 ASM., SHOCK, OIL LOCKINGASM., SHOCK, OIL LOCKING
-
277519980 BOLT, SHOULDERBOLT, SHOULDER
-
287546703 NUT, NYLOKNUT, NYLOK
-
297547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
305415579 GROMMET-STEERINGGROMMET-STEERING
