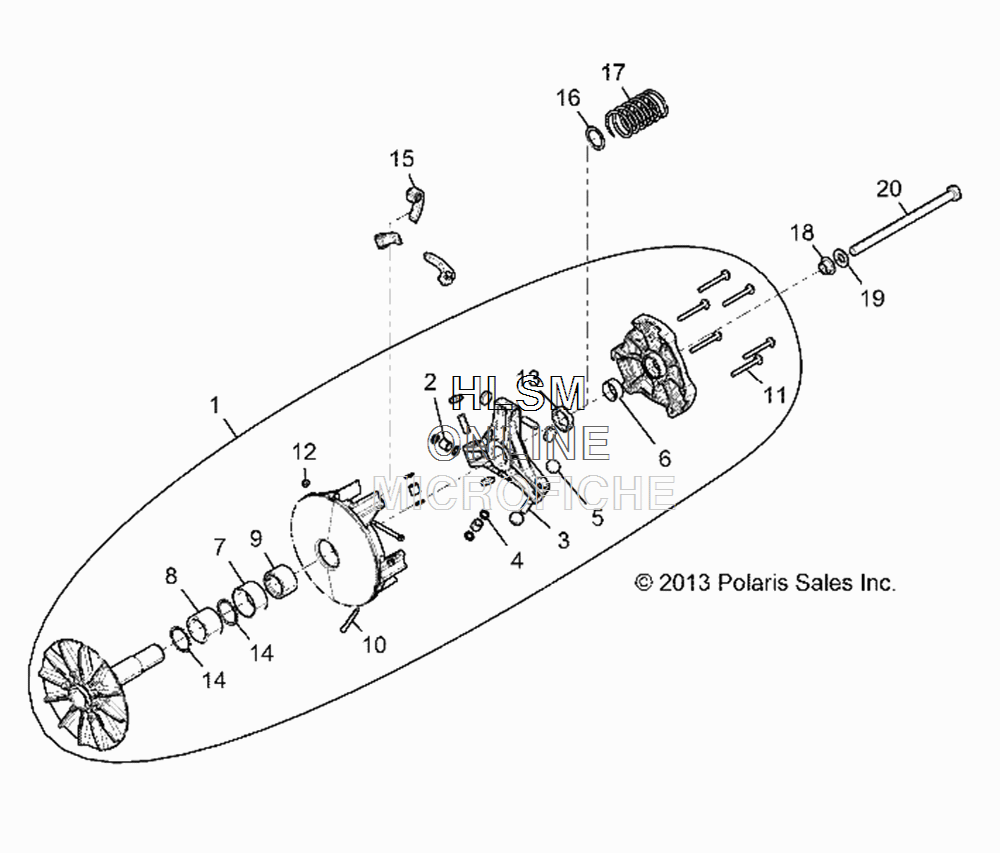

CLUTCH- PRIMARY для Polaris GENERAL 4 1000 EPS BLACK PEARL (R18RHE99BK) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1323320 ASM-DRIVE CLUTCH, BASIC, BEARING (INCL. 2-14)
    ASM-DRIVE CLUTCH, BASIC, BEARING (INCL. 2-14)
  • 2
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 3
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 4
    5438247 WASHER, CLUTCH, SPIDER ROLLER
    WASHER, CLUTCH, SPIDER ROLLER
  • 5
    5450940 BUTTON, CLUTCH, RUBBER BACKED, 16.7MM
    BUTTON, CLUTCH, RUBBER BACKED, 16.7MM
  • 6
    3576510 COVER, BEARING
    COVER, BEARING
  • 7
    5632894 SPACER, CLUTCH
    SPACER, CLUTCH
  • 8
    1521172 ASM., CLUTCH, ONE WAY
    ASM., CLUTCH, ONE WAY
  • 9
    3514492 BEARING, 1.75ID
    BEARING, 1.75ID
  • 10
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 11
    7518349 SCREW
    SCREW
  • 12
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 13
    7547498 NUT, JAM
    NUT, JAM
  • 14
    7556335 WASHER, CLUTCH
    WASHER, CLUTCH
  • 15
    5633496 WEIGHT-SHIFT, 29-66, PM
    WEIGHT-SHIFT, 29-66, PM
  • 16
    5438963 SPACER-CLUTCH, LIMITER
    SPACER-CLUTCH, LIMITER
  • 17
    7044465 SPRING-CLUTCH, 58-105
    SPRING-CLUTCH, 58-105
  • 18
    5132441 WASHER, CLUTCH
    WASHER, CLUTCH
  • 19
    7556003 WASHER
    WASHER
  • 20
    7518412 SCR-HXFL-M14X1.5X215 8.8 SPC
    SCR-HXFL-M14X1.5X215 8.8 SPC
