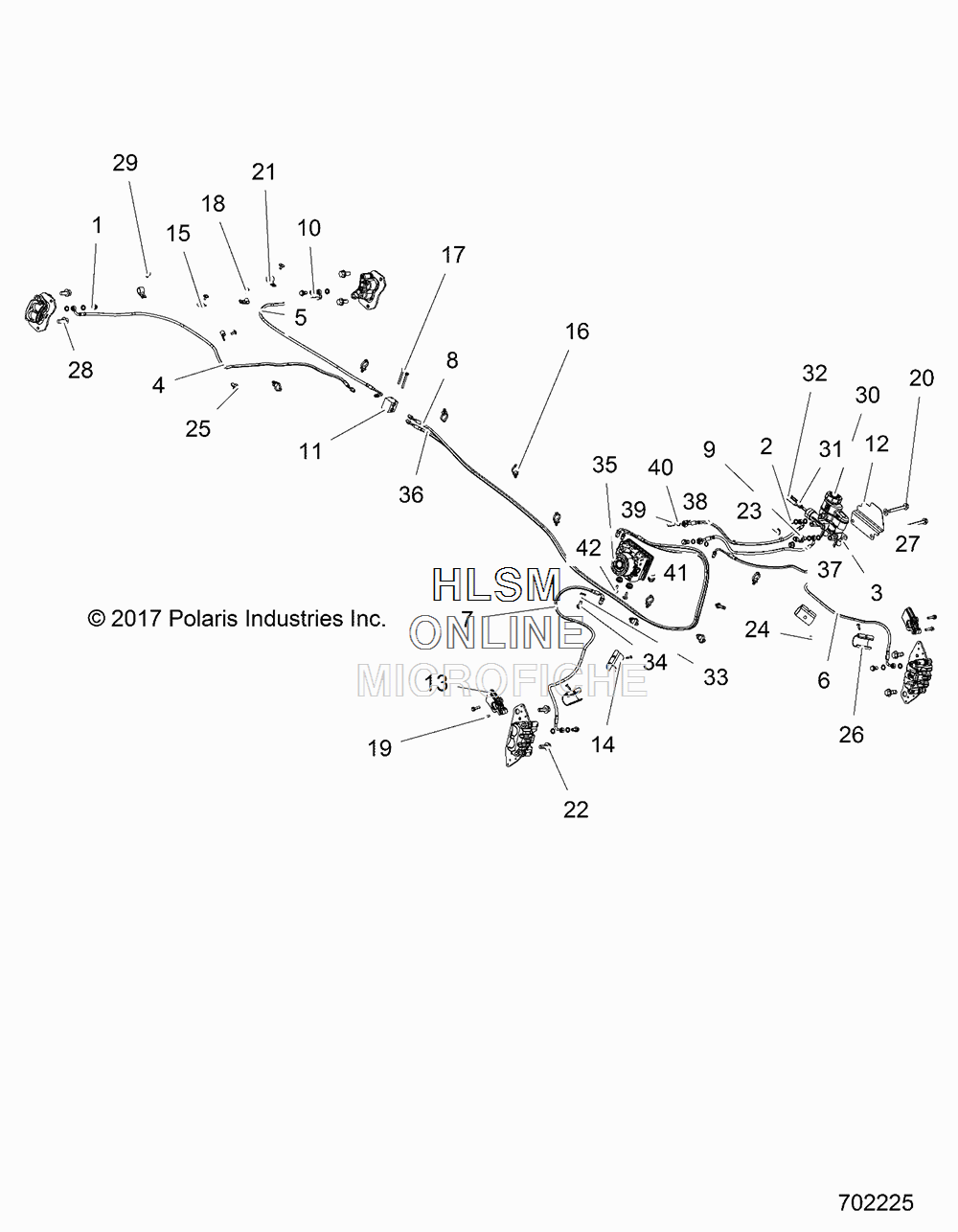

MASTER CYLINDER AND BRAKE LINES для Polaris GENERAL 1000 PS MD TR ABS CRUISER BLACK (R18RGC99CM) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1910499 BOLT, BANJO
    BOLT, BANJO
  • 2
    1910958 BOLT, BANJO
    BOLT, BANJO
  • 4
    1912257 LINE-BRK, RR, 55.1 IN, 90B, 20F, 35°
    LINE-BRK, RR, 55.1 IN, 90B, 20F, 35°
  • 5
    1912258 LINE-BRK, RL, 40.2, 90B, 90F, 346°
    LINE-BRK, RL, 40.2, 90B, 90F, 346°
  • 6
    1912927 LINE-BRK, FL, 46, 90SB, ISO90F, 180°
    LINE-BRK, FL, 46, 90SB, ISO90F, 180°
  • 7
    1913007 LINE-BRK, FR, 46.1, 90SB, 70B, 40°
    LINE-BRK, FR, 46.1, 90SB, 70B, 40°
  • 8
    1912930 LINE-BRK, RRM, 93, ISO90FM12, 20F
    LINE-BRK, RRM, 93, ISO90FM12, 20F
  • 9
    4014262 SWITCH-BRK, M10X1.25, DBL, SEALED
    SWITCH-BRK, M10X1.25, DBL, SEALED
  • 10
    5413212 SEAL, STAT
    SEAL, STAT
  • 11
    7052700 FITTING-TEE, BRAKE ONE PC ABS
    FITTING-TEE, BRAKE ONE PC ABS
  • 12
    5259049 SHIELD, MASTER CYLINDER
    SHIELD, MASTER CYLINDER
  • 13
    5634051 SCRAPER, BRAKE, FRONT
    SCRAPER, BRAKE, FRONT
  • 14
    5451487 CLIP, BRAKE LINE
    CLIP, BRAKE LINE
  • 15
    7080683 CLAMP, HOSET
    CLAMP, HOSET
  • 16
    7081496 CLIP-ROUTING
    CLIP-ROUTING
  • 17
    7518486 SCREW
    SCREW
  • 18
    7512084 SCR-10-24X1/2, PHTXTRIRD, SEMS-Y
    SCR-10-24X1/2, PHTXTRIRD, SEMS-Y
  • 19
    7516823 SCR-M6X1.0X25-HX/FL-Y/D
    SCR-M6X1.0X25-HX/FL-Y/D
  • 20
    7519298 SCREW
    SCREW
  • 21
    7080880 CLAMP-HOSE, .625 DIA VNL COATED
    CLAMP-HOSE, .625 DIA VNL COATED
  • 22
    7518760 BOLT, HEX FLANGE W/PATCH
    BOLT, HEX FLANGE W/PATCH
  • 23
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 24
    7621323 RIVET
    RIVET
  • 25
    7670102 CLIP-SILENCER BOX-C, 98 INDY
    CLIP-SILENCER BOX-C, 98 INDY
  • 26
    5451488 CLIP, BRAKE LINE, INNER
    CLIP, BRAKE LINE, INNER
  • 27
    7555954 WASHER
    WASHER
  • 28
    7518558 SCR-HXFL-M10X1.25X20 8.8 ZOD
    SCR-HXFL-M10X1.25X20 8.8 ZOD
  • 29
    7621472 RIVET3/16(.063-.250)ST-ST-LF-B
    RIVET3/16(.063-.250)ST-ST-LF-B
  • 30
    2204993 KIT, RES. CAP ASM. (INCL. GASKET, PLATE, COVER)
    KIT, RES. CAP ASM. (INCL. GASKET, PLATE, COVER)
  • 31
    2203457 KIT, CLEVIS NUT (INCL. 2 NUTS)
    KIT, CLEVIS NUT (INCL. 2 NUTS)
  • 32
    2203456 KIT, CLEVIS
    KIT, CLEVIS
  • 33
    7081246 CLAMP-WIRE/TUBE .25 DIA
    CLAMP-WIRE/TUBE .25 DIA
  • 34
    7518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
    SCR-M6X1.0X20, HXHD, FLG, TDFM, BK
  • 35
    1912905 ASM-HECU ABS, CONTI, PROG, GEN
    ASM-HECU ABS, CONTI, PROG, GEN
  • 36
    1912929 LINE-BRK, RLM, 92, ISO90F, 20F, 0
    LINE-BRK, RLM, 92, ISO90F, 20F, 0
  • 37
    1912925 LINE-BRK, M1, 23, 70B, 20BM12, 315
    LINE-BRK, M1, 23, 70B, 20BM12, 315
  • 38
    1912926 LINE-BRK, M2, 24.4, 70B, 20BM12, 0
    LINE-BRK, M2, 24.4, 70B, 20BM12, 0
  • 39
    1912987 BOLT-BANJO-X-SHORT, M12X1.0-6G
    BOLT-BANJO-X-SHORT, M12X1.0-6G
  • 40
    5416442 WASHER-COPPER 12.3 MM X1.5 THK
    WASHER-COPPER 12.3 MM X1.5 THK
  • 41
    5413711 GROMMET-ABS MOUNT
    GROMMET-ABS MOUNT
  • 42
    7519089 SCR-HH-M6X1.0X25 8.8 ZPC SPC
    SCR-HH-M6X1.0X25 8.8 ZPC SPC
