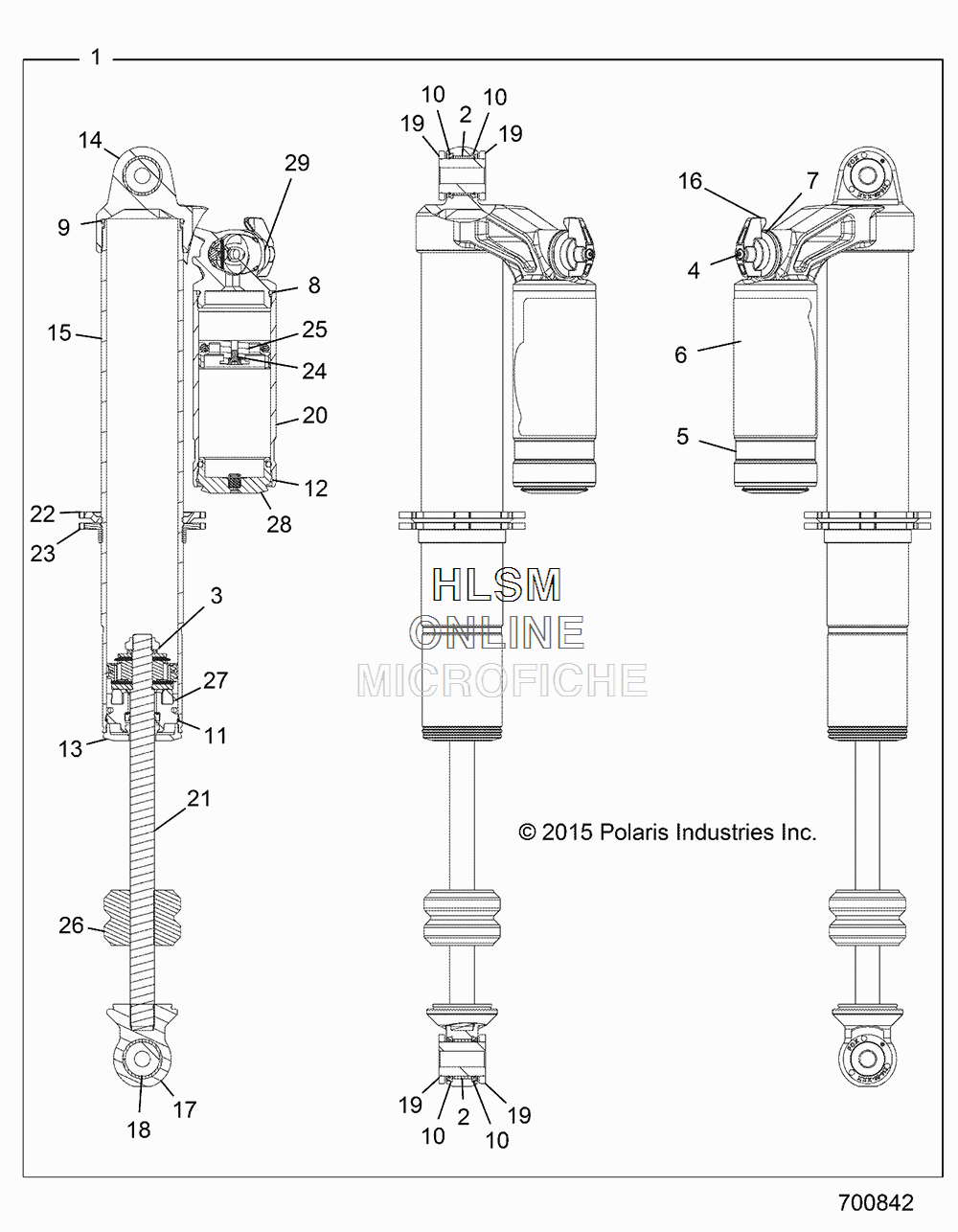

FRONT SHOCK INTERNALS для Polaris GENERAL 1000 EPS RIDE COMMAND EDITION MATTE SUNSET RED (R18RGK99BS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7044415 SHOCK-FRONT, PIGGYBK, LEFT HAND (INCL. ALL)
    SHOCK-FRONT, PIGGYBK, LEFT HAND (INCL. ALL)
  • 1
    1500838 PLATE-TOP-OUT (1.570 OD X 0.503 ID X 0.128 TH, 0.620 SHAFT) [INCL. ALL)
    PLATE-TOP-OUT (1.570 OD X 0.503 ID X 0.128 TH, 0.620 SHAFT) [INCL. ALL)
  • 1
    7044416 SHOCK-FRONT, PIGGYBK, RIGHT HAND (INCL. ALL)
    SHOCK-FRONT, PIGGYBK, RIGHT HAND (INCL. ALL)
  • 2
    1501010 BUSHING, EYELET
    BUSHING, EYELET
  • 3
    1500472 NUT, LOCK
    NUT, LOCK
  • 4
    1501011 SCREW, #4, SS PAN
    SCREW, #4, SS PAN
  • 5
    1501012 DECAL, PERF SERIES
    DECAL, PERF SERIES
  • 6
    1501013 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 7
    1501105 DECAL, BASE VALVE
    DECAL, BASE VALVE
  • 8
    1500623 O-RING
    O-RING
  • 9
    1500510 O-RING
    O-RING
  • 10
    1501014 SEAL, WEATHER
    SEAL, WEATHER
  • 11
    1500236 RETAINING, RING
    RETAINING, RING
  • 12
    1501015 RING, RET. WIRE
    RING, RET. WIRE
  • 13
    1501100 CAP, BEARING
    CAP, BEARING
  • 14
    1501029 BODY, CAP (USED W/77044415)
    BODY, CAP (USED W/77044415)
  • 14
    1501030 BODY, CAP (USED W/77044416)
    BODY, CAP (USED W/77044416)
  • 15
    1501031 BODY
    BODY
  • 16
    1501108 KNOB, DAMP ADJ.
    KNOB, DAMP ADJ.
  • 17
    1501032 EYELET PARTS
    EYELET PARTS
  • 18
    1501087 SLEEVE, .397 ID X .875 OD X 1.181 TLG
    SLEEVE, .397 ID X .875 OD X 1.181 TLG
  • 19
    1501088 SPACER, .876 ID X 1.25 OD X .150 TLG
    SPACER, .876 ID X 1.25 OD X .150 TLG
  • 20
    1501023 RESERVOIR, 5 THD.
    RESERVOIR, 5 THD.
  • 21
    1501033 SHAFT
    SHAFT
  • 22
    1500872 PRELOAD RING BACK UP
    PRELOAD RING BACK UP
  • 23
    1500873 PRELOAD RING
    PRELOAD RING
  • 24
    1500161 SCREW W/ O-RING
    SCREW W/ O-RING
  • 25
    1501026 ASM., PISTON, FLOAT
    ASM., PISTON, FLOAT
  • 26
    1501028 BUMPER, B/O SHAFT
    BUMPER, B/O SHAFT
  • 27
    1501185 ASM., BEARING, .62SHAFT
    ASM., BEARING, .62SHAFT
  • 28
    1501027 ASM., END CAP, RESERVOIR
    ASM., END CAP, RESERVOIR
  • 29
    1501186 DAMPING ADJUSTMENT ASSEMBLY
    DAMPING ADJUSTMENT ASSEMBLY
