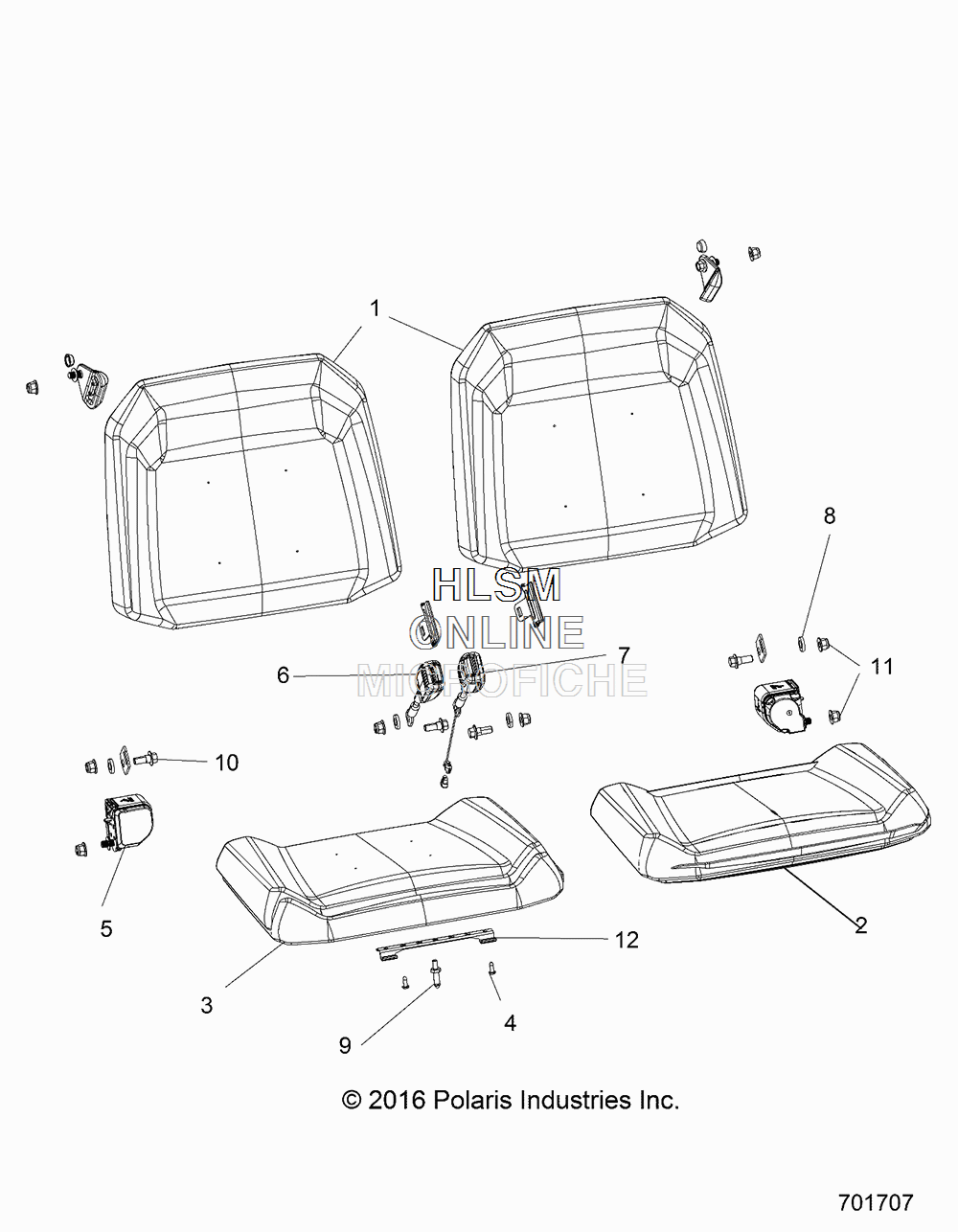

SEATS W/ SEAT BELTS для Polaris RGR 570 EPS PREMIUM HDPS ZUG SAGE BRUSH GREEN [R17RMT57C1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2687415-070 ASM-SEAT,RGR,BACK,TR,BLK
    ASM-SEAT,RGR,BACK,TR,BLK
  • 2
    2684966-070 ASM-SEAT,BTM,40,BLK
    ASM-SEAT,BTM,40,BLK
  • 3
    2686034-070 ASM-SEAT,BTM,40,BLK
    ASM-SEAT,BTM,40,BLK
  • 4
    7519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBK
    SCR-TX TRUSS-#14X3/4,HI/LO ZBK
  • 5
    2636338 ASM-SEAT BELT,3PT TR
    ASM-SEAT BELT,3PT TR
  • 6
    2636438 BUCKLE-SEATBELT,PASSENGER,TR
    BUCKLE-SEATBELT,PASSENGER,TR
  • 7
    2636437 BUCKLE-SEATBELT,90,SWITCH,TR
    BUCKLE-SEATBELT,90,SWITCH,TR
  • 8
    5813829 WASHER-SEATBELT,RUBBER
    WASHER-SEATBELT,RUBBER
  • 9
    5910404 PIN-SEAT LATCH
    PIN-SEAT LATCH
  • 10
    7519770 SCR-HXFLSH-M12X1.75-M14X9 ZOD
    SCR-HXFLSH-M12X1.75-M14X9 ZOD
  • 11
    7547441 NUT-HXFL M12X1.75 8 ZOD NYL
    NUT-HXFL M12X1.75 8 ZOD NYL
  • 12
    5259065 BRKT-SEAT HINGE,DOUBLE
    BRKT-SEAT HINGE,DOUBLE
