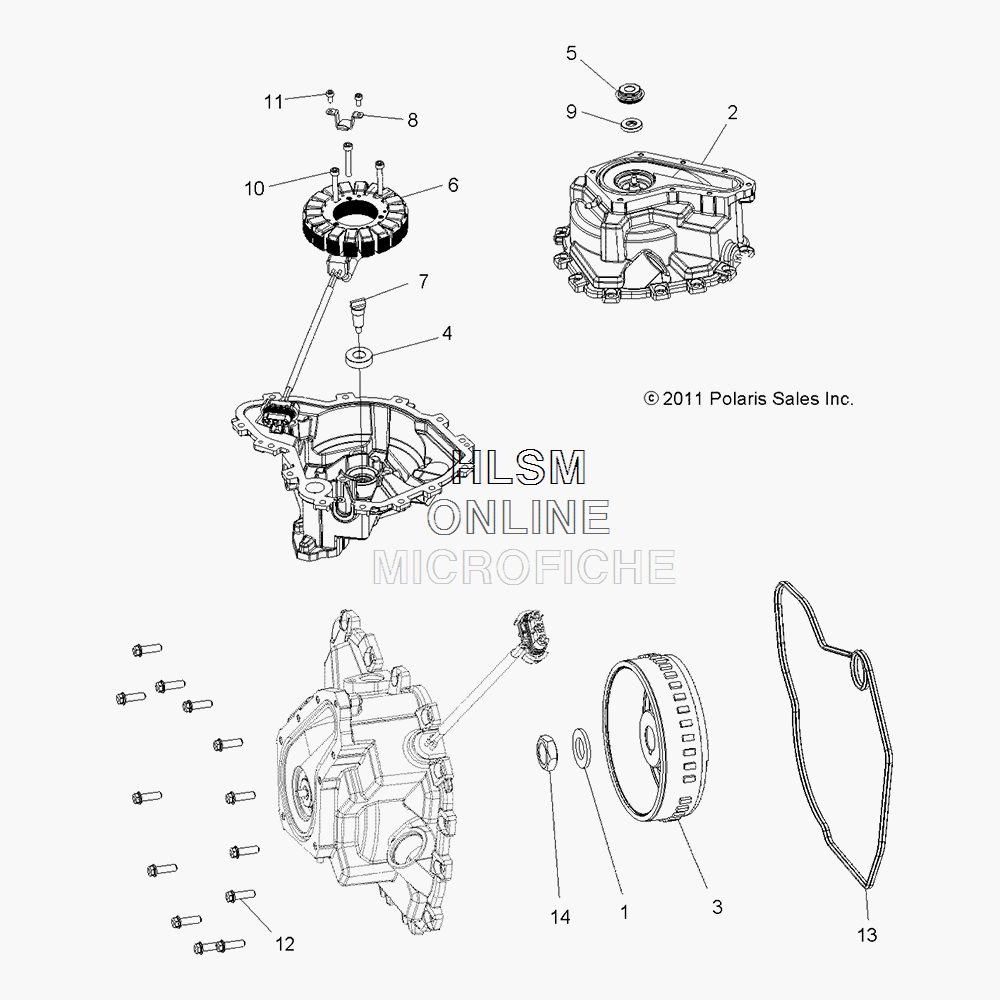

STATOR COVER W/ FLYWHEEL для Polaris RGR 570 EPS PREMIUM HDPS SAGE BRUSH GREEN [R17RMS57C1] - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    1205594 ASM., STATOR COVER W/WPUMP -560,660
    ASM., STATOR COVER W/WPUMP -560,660
  • 1
    7556878 WASHER
    WASHER
  • 2
    2204736 KIT, IGNITION COVER [INCL. COVER, FITTING, IMPELLER,4,5,7,9]
    KIT, IGNITION COVER [INCL. COVER, FITTING, IMPELLER,4,5,7,9]
  • 3
    4013969 FLYWHEEL
    FLYWHEEL
  • 4
    3514696 BEARING, SHAFT, WATERPUMP
    BEARING, SHAFT, WATERPUMP
  • 5
    3610173 SEAL, WATERPUMP SHAFT, WATER
    SEAL, WATERPUMP SHAFT, WATER
  • 6
    4015340 STATOR
    STATOR
  • 7
    5138035 SHAFT, PUMP DRIVE
    SHAFT, PUMP DRIVE
  • 8
    5254832 GUIDE, STATOR LEAD
    GUIDE, STATOR LEAD
  • 9
    5411197 SEAL, TYPE S
    SEAL, TYPE S
  • 10
    7510005 SCREW
    SCREW
  • 11
    7517847 SCREW
    SCREW
  • 12
    7518576 SCREW
    SCREW
  • 13
    5414329 GASKET, STATOR COVER
    GASKET, STATOR COVER
  • 14
    7547488 NUT, JAM, RH
    NUT, JAM, RH
