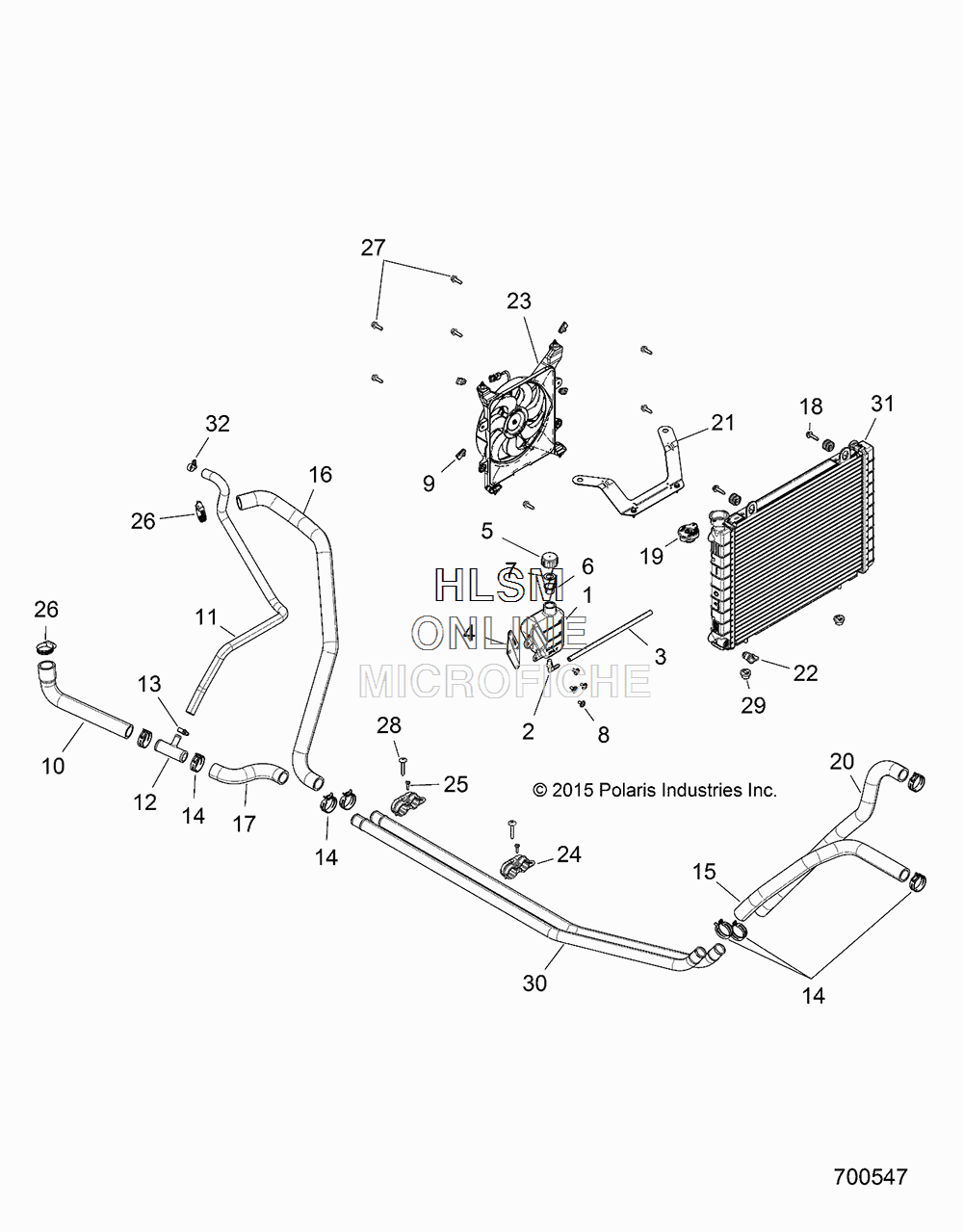

COOLING SYSTEM для Polaris RGR 570 EPS HDPS BLACK PEARL [R17RMS57CK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5436936 TANK, SURGE
    TANK, SURGE
  • 2
    7052065 FITTING, 90 DEG
    FITTING, 90 DEG
  • 3
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 4
    5254763 BRACKET, SURGE TANK
    BRACKET, SURGE TANK
  • 5
    5430743 CAP, OVER FLOW BOTTLE, DRILLED
    CAP, OVER FLOW BOTTLE, DRILLED
  • 6
    5433774 PLUG, CAP
    PLUG, CAP
  • 7
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 8
    7512084 SCREW
    SCREW
  • 10
    5414162 HOSE, BYPASS, 1 INCH, FORMED
    HOSE, BYPASS, 1 INCH, FORMED
  • 11
    5414590 HOSE, BYPASS, 1/2 INCH, FORMED
    HOSE, BYPASS, 1/2 INCH, FORMED
  • 12
    7052530 CONNECTOR, TEE
    CONNECTOR, TEE
  • 13
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    7080843 CLAMP, SPRINGBAND, BROWN
    CLAMP, SPRINGBAND, BROWN
  • 15
    5415526 HOSE, LOWER, RADIATOR
    HOSE, LOWER, RADIATOR
  • 16
    5415053 HOSE, ENGINE OUTLET, REAR
    HOSE, ENGINE OUTLET, REAR
  • 17
    5415054 HOSE, LOWER, ENGINE, SHORT
    HOSE, LOWER, ENGINE, SHORT
  • 18
    7518529 SCREW
    SCREW
  • 19
    1240899 CAP, PRESSURE
    CAP, PRESSURE
  • 20
    5415269 HOSE, UPPER, RADIATOR
    HOSE, UPPER, RADIATOR
  • 21
    5260846-458 BRACKET, RADIATOR MOUNT, MATTE BLACK
    BRACKET, RADIATOR MOUNT, MATTE BLACK
  • 22
    7052617 VALVE, PLASTIC RADIATOR/COOLER DRAIN
    VALVE, PLASTIC RADIATOR/COOLER DRAIN
  • 23
    2413196 ASM., FAN
    ASM., FAN
  • 24
    5451221 BRACKET, COOLANT TUBE
    BRACKET, COOLANT TUBE
  • 25
    7512026 SCREW
    SCREW
  • 26
    7081192 CLAMP, HOSE
    CLAMP, HOSE
  • 27
    7516822 SCREW
    SCREW
  • 28
    7519001 SCREW
    SCREW
  • 29
    7052028 GROMMET, FLANGED
    GROMMET, FLANGED
  • 30
    5139239 TUBE, COOLANT
    TUBE, COOLANT
  • 31
    1240956 ASM., RADIATOR, CORE
    ASM., RADIATOR, CORE
  • 32
    7080474 CLAMP, HOSE
    CLAMP, HOSE
