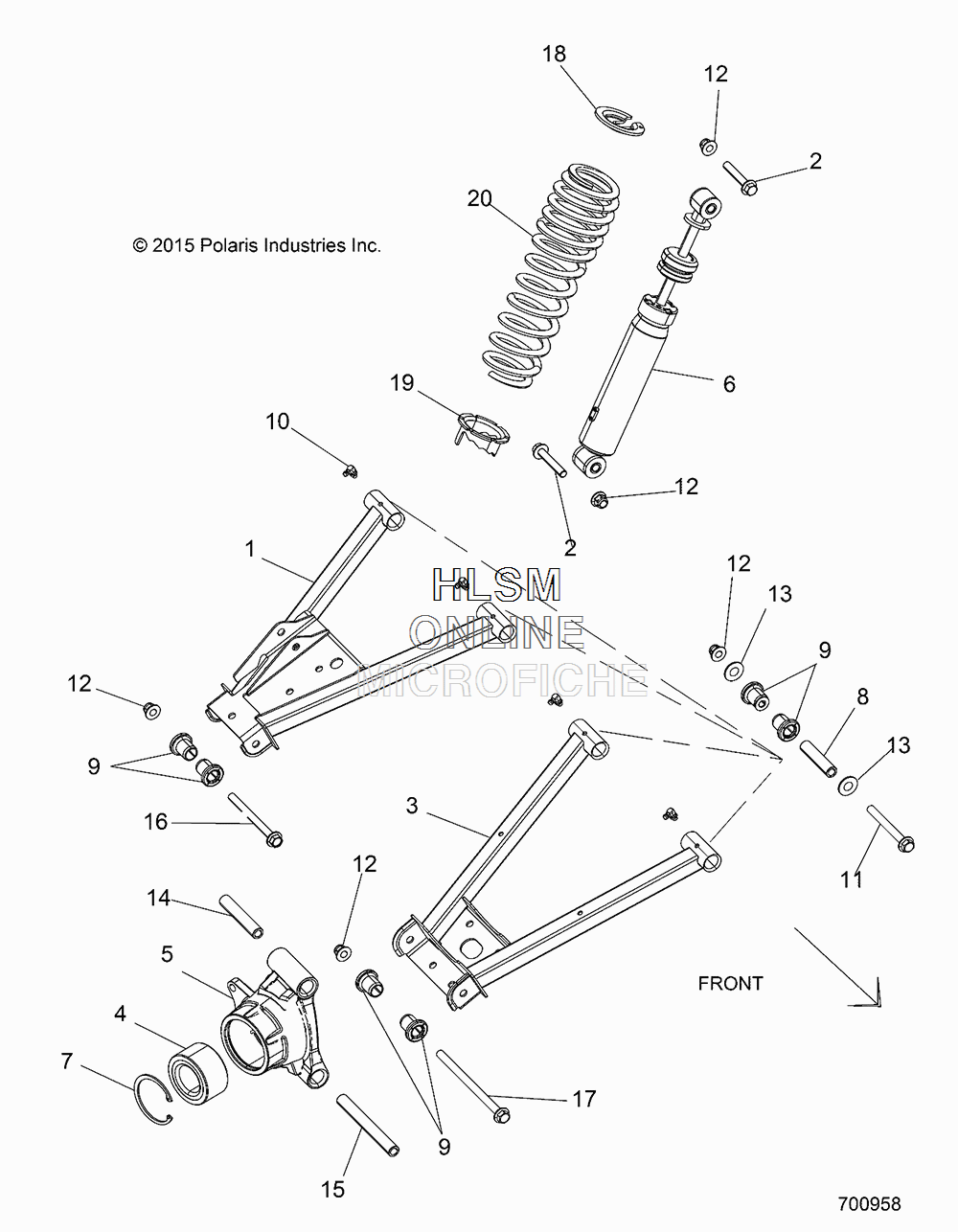

REAR SUSPENSION для Polaris RGR 570 EPS HDPE (R05) - [R17RMH57A4] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1018992-458 ARM,CONTROL, UPPER, RIGHT, (MATTE BLACK)
    ARM,CONTROL, UPPER, RIGHT, (MATTE BLACK)
  • 2
    7518563 BOLT
    BOLT
  • 3
    1018995-458 ARM, CONTROL, LOWER, (MATTE BLACK)
    ARM, CONTROL, LOWER, (MATTE BLACK)
  • 4
    3514635 BEARING, WHEEL
    BEARING, WHEEL
  • 5
    5138501 CARRIER, BEARING, WHEEL, LEFT
    CARRIER, BEARING, WHEEL, LEFT
  • 5
    5138502 CARRIER, BEARING, WHEEL, RIGHT
    CARRIER, BEARING, WHEEL, RIGHT
  • 6
    7044139 SHOCK, REAR
    SHOCK, REAR
  • 7
    7710440 RING, RETAINING
    RING, RETAINING
  • 8
    5138797 SHAFT, PIVOT (70.99MM)
    SHAFT, PIVOT (70.99MM)
  • 9
    1543367 BUSHING
    BUSHING
  • 10
    7080510 FITTING, ZERK (90 DEG)
    FITTING, ZERK (90 DEG)
  • 11
    7519043 SCREW
    SCREW
  • 12
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 13
    7556153 WASHER
    WASHER
  • 14
    5138794 SHAFT, PIVOT (89.71MM)
    SHAFT, PIVOT (89.71MM)
  • 15
    5138796 SHAFT, PIVOT (139.1MM)
    SHAFT, PIVOT (139.1MM)
  • 16
    7518566 BOLT
    BOLT
  • 17
    7519042 SCREW
    SCREW
  • 18
    5251753 RETAINER, SPRING, STEEL
    RETAINER, SPRING, STEEL
  • 19
    5253768 CAM, ADJUSTING, SPRING, STEEL
    CAM, ADJUSTING, SPRING, STEEL
  • 20
    7043884-458 SPRING, REAR, (MATTE BLACK)
    SPRING, REAR, (MATTE BLACK)
