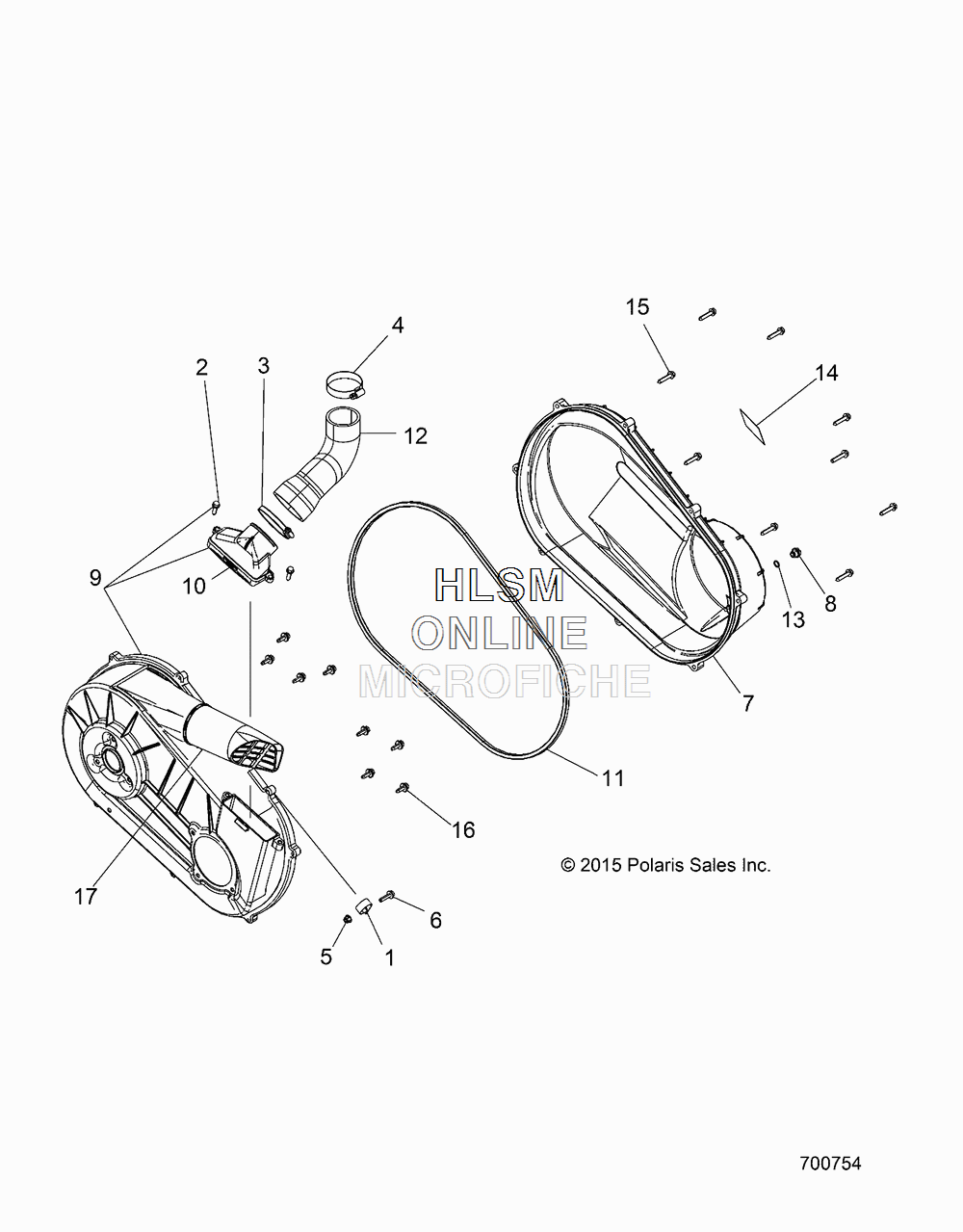

CLUTCH COVER AND DUCTING для Polaris RGR 570 EFI CREW TITANIUM (R07) - [R17RNA57EAM] - 2017 года выпуска`
-
№АртикулНазвание
-
17081854 CLAMP, VINYL COATEDCLAMP, VINYL COATED
-
27512098 SCREWSCREW
-
37080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
47080451 CLAMP, HOSECLAMP, HOSE
-
57547339 NUTNUT
-
67518533 BOLTBOLT
-
72207123 K-CVR,CLUTCH,OTR,RGR MS/FS [INCL. OUTER COVER, PLUG, O-RING]K-CVR,CLUTCH,OTR,RGR MS/FS [INCL. OUTER COVER, PLUG, O-RING]
-
85434264 PLUG, DRAINPLUG, DRAIN
-
92635045 ASM., COVER, CLUTCH, INNER [INCL. 2,9,10]ASM., COVER, CLUTCH, INNER [INCL. 2,9,10]
-
95438889 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
105438891 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
115521831 SEAL, OUTER, CLUTCH COVERSEAL, OUTER, CLUTCH COVER
-
125414501 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
135410542 O-RINGO-RING
-
147177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
157519330 SCREW-NXFL-M6X35 ZOD HILOSCREW-NXFL-M6X35 ZOD HILO
-
167519278 ASM., BOLT/WASHERASM., BOLT/WASHER
-
175450181 DUCT-OUTLET, CLUTCHDUCT-OUTLET, CLUTCH
