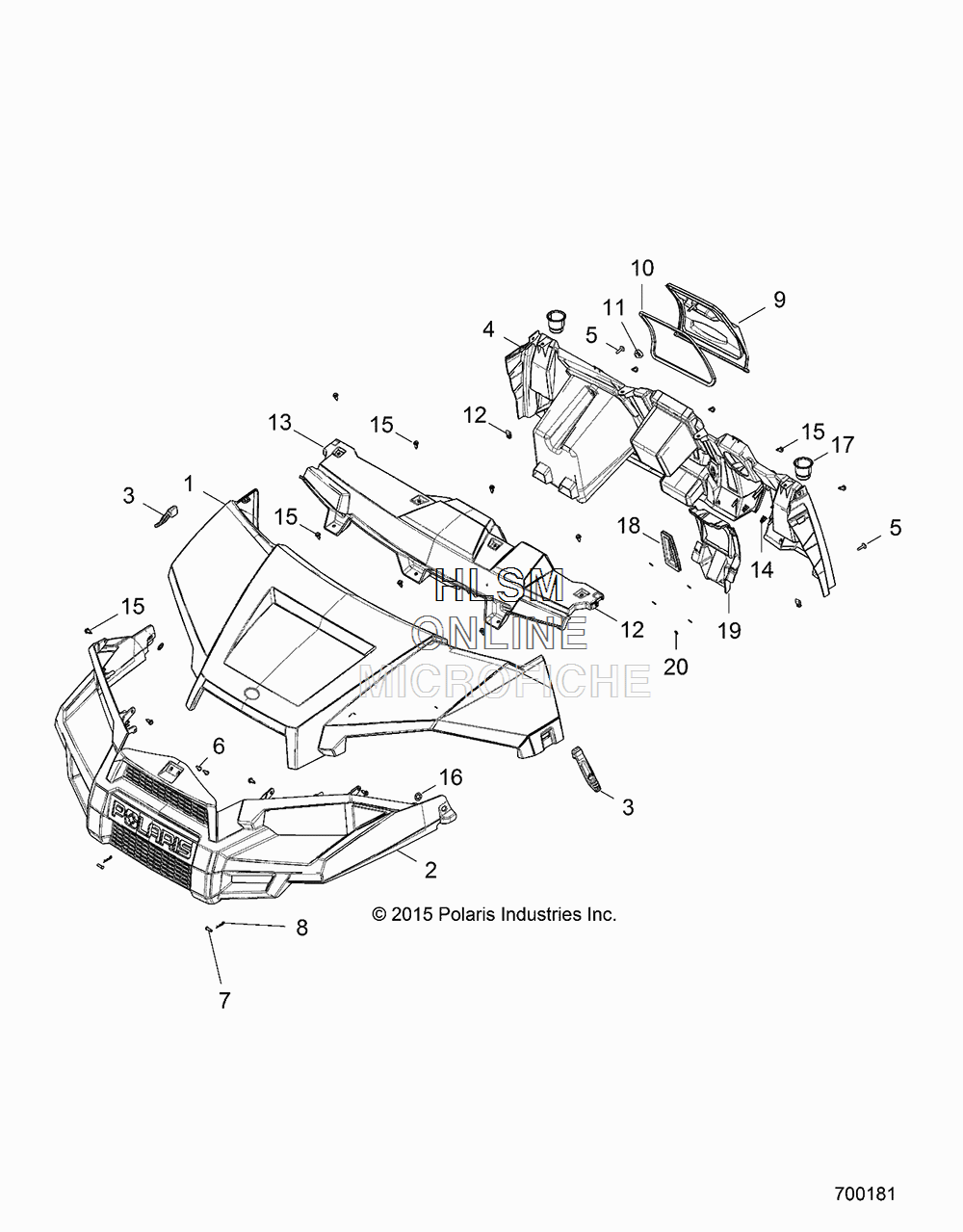

HOOD W/ DASH AND GRILL для Polaris RGR 570 BLACK PEARL (R05) - [R17RME57AK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5451347-666 HOOD-BASIC,PAINTED,BLACK PEARL
    HOOD-BASIC,PAINTED,BLACK PEARL
  • 2
    5451005-070 FASCIA, FRONT, BLACK
    FASCIA, FRONT, BLACK
  • 3
    5415295 STRAP, HOOD RETAINER
    STRAP, HOOD RETAINER
  • 4
    2207120 K-DASH,PNL,LWR RGR 500/570
    K-DASH,PNL,LWR RGR 500/570
  • 5
    7519650 SCREW
    SCREW
  • 6
    7519045 SCREW
    SCREW
  • 7
    7661843 PIN, CLEVIS
    PIN, CLEVIS
  • 8
    7662139 PIN, HITCH
    PIN, HITCH
  • 9
    5451007-070 COVER, GLOVE BOX, BLACK
    COVER, GLOVE BOX, BLACK
  • 10
    5522052 SEAL, GLOVE BOX
    SEAL, GLOVE BOX
  • 11
    5412504 GROMMET, RUBBER, MOUNT
    GROMMET, RUBBER, MOUNT
  • 12
    7547674 NUT
    NUT
  • 13
    2207119 K-DASH,PNL,UPR,RGR 500/570
    K-DASH,PNL,UPR,RGR 500/570
  • 14
    7519806 CLIP, DASH, TRIM, METAL
    CLIP, DASH, TRIM, METAL
  • 15
    7661855 RIVET
    RIVET
  • 16
    7710820 NUT, 7/16 PUSHNUT
    NUT, 7/16 PUSHNUT
  • 17
    5436836 HOLDER, CUP
    HOLDER, CUP
  • 18
    5414249 GROMMET, SHIFT LEVER
    GROMMET, SHIFT LEVER
  • 19
    5415087 GROMMET, STEERING
    GROMMET, STEERING
  • 20
    7670154 RETAINER, BOLT
    RETAINER, BOLT
