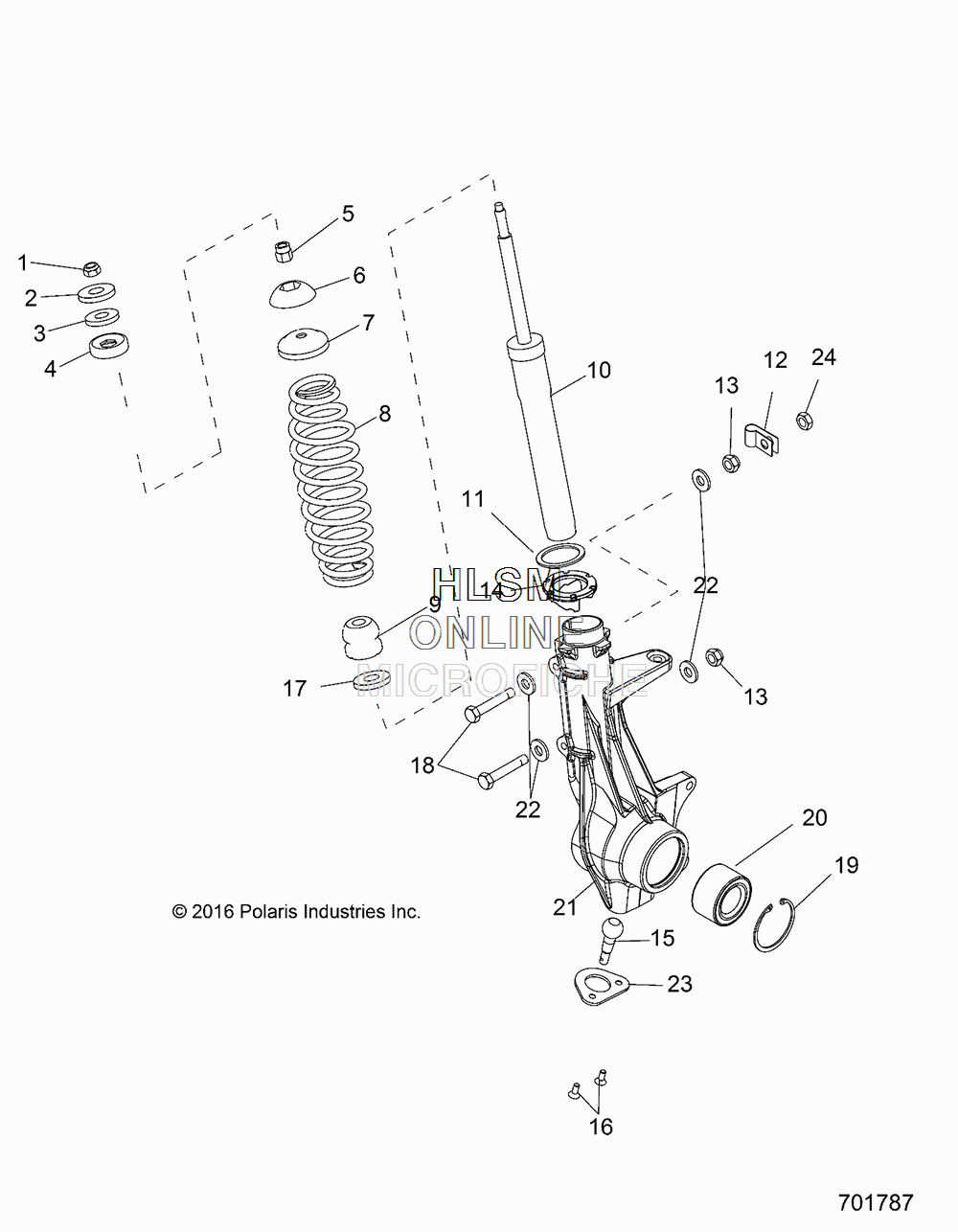

FRONT STRUT для Polaris RGR 499, ETX, HDPE SAGEBRUSH GREEN METALIC (R06) - [R17RMA50A1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 4
    5432872 BALL, PIVOT, TOP
    BALL, PIVOT, TOP
  • 5
    5132062 SPACER
    SPACER
  • 6
    5432871 BALL, PIVOT, BOTTOM
    BALL, PIVOT, BOTTOM
  • 7
    5243364 RETAINER-SPRING,STRUT
    RETAINER-SPRING,STRUT
  • 8
    7044228-458 SPRING, FRONT, MATTE BLACK
    SPRING, FRONT, MATTE BLACK
  • 9
    5412665 BUMPER
    BUMPER
  • 10
    7044149 STRUT, FRONT
    STRUT, FRONT
  • 11
    5211115 WASHER
    WASHER
  • 12
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 13
    7547332 NUT, NYLOK
    NUT, NYLOK
  • 14
    5633698 RETAINER-SPRING,ALUMN [ASSEMBLES BRAKE CALIPER]
    RETAINER-SPRING,ALUMN [ASSEMBLES BRAKE CALIPER]
  • 15
    7061158 JOINT, BALL, GREASELESS
    JOINT, BALL, GREASELESS
  • 16
    7512284 SCREW
    SCREW
  • 17
    1501212 SPACER-STRUT
    SPACER-STRUT
  • 18
    7519212 SCREW
    SCREW
  • 19
    7710507 RING, RETAINING
    RING, RETAINING
  • 20
    3514634 BEARING, WHEEL
    BEARING, WHEEL
  • 21
    1824515 ASM., HUBSTRUT, LH [INCL. 15,16,19,20,23]
    ASM., HUBSTRUT, LH [INCL. 15,16,19,20,23]
  • 21
    1824516 ASM., HUBSTRUT, RH [INCL. 15,16,19,20,23]
    ASM., HUBSTRUT, RH [INCL. 15,16,19,20,23]
  • 22
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 23
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 24
    7542344 NUT, NYLOK
    NUT, NYLOK
