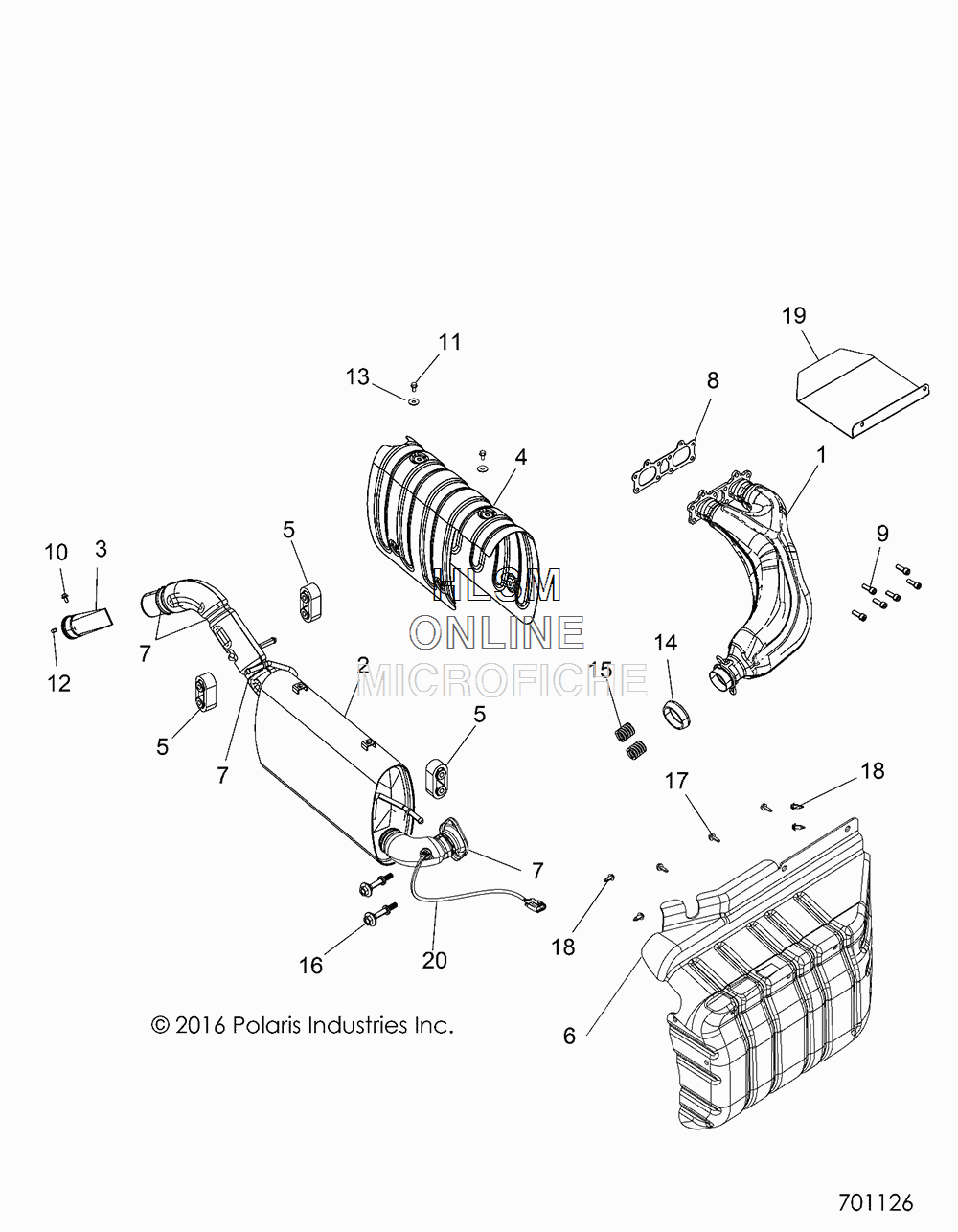

EXHAUST для Polaris RGR 1000 XP ALL OPTIONS CAMO (R18) - [R17RTE99A9] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1262693 ASM., HEADPIPE [INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS]
    ASM., HEADPIPE [INCL. HEADPIPE AND ALL SHIELDS AND CLAMPS]
  • 2
    1263009 ASM-SILENCER,CAT/02,18MM,RGR [INCL. 3-5,10-13, ALL SHIELDS AND CLAMPS][
    ASM-SILENCER,CAT/02,18MM,RGR [INCL. 3-5,10-13, ALL SHIELDS AND CLAMPS][
  • 3
    1262123 ARRESTOR, SPARK
    ARRESTOR, SPARK
  • 4
    5257719 SILENCER, SHIELD
    SILENCER, SHIELD
  • 5
    5438965 MOUNT, ISOLATOR
    MOUNT, ISOLATOR
  • 6
    5814454 SHIELD-HEAT,FOIL,FULL,RGR
    SHIELD-HEAT,FOIL,FULL,RGR
  • 7
    7081579 CLAMP-HEAT SHIELD,EXHAUST
    CLAMP-HEAT SHIELD,EXHAUST
  • 8
    3610184 GASKET, EXHAUST SEAL
    GASKET, EXHAUST SEAL
  • 9
    7518984 SCREW
    SCREW
  • 10
    7517257 SCREW
    SCREW
  • 11
    7518490 SCREW
    SCREW
  • 12
    7547120 NUT
    NUT
  • 13
    7555935 WASHER
    WASHER
  • 14
    3610248 SEAL, EXHAUST
    SEAL, EXHAUST
  • 15
    7044274 SPRING, EXHAUST
    SPRING, EXHAUST
  • 16
    7520079 STUD-SPHERICAL,EXHAUST
    STUD-SPHERICAL,EXHAUST
  • 17
    7518529 SCREW
    SCREW
  • 18
    7661855 RIVET
    RIVET
  • 19
    5261192 BRACKET, BOX CLOSE OFF
    BRACKET, BOX CLOSE OFF
  • 20
    4011853 SENSOR-LAMBDA,LSF 4.2
    SENSOR-LAMBDA,LSF 4.2
