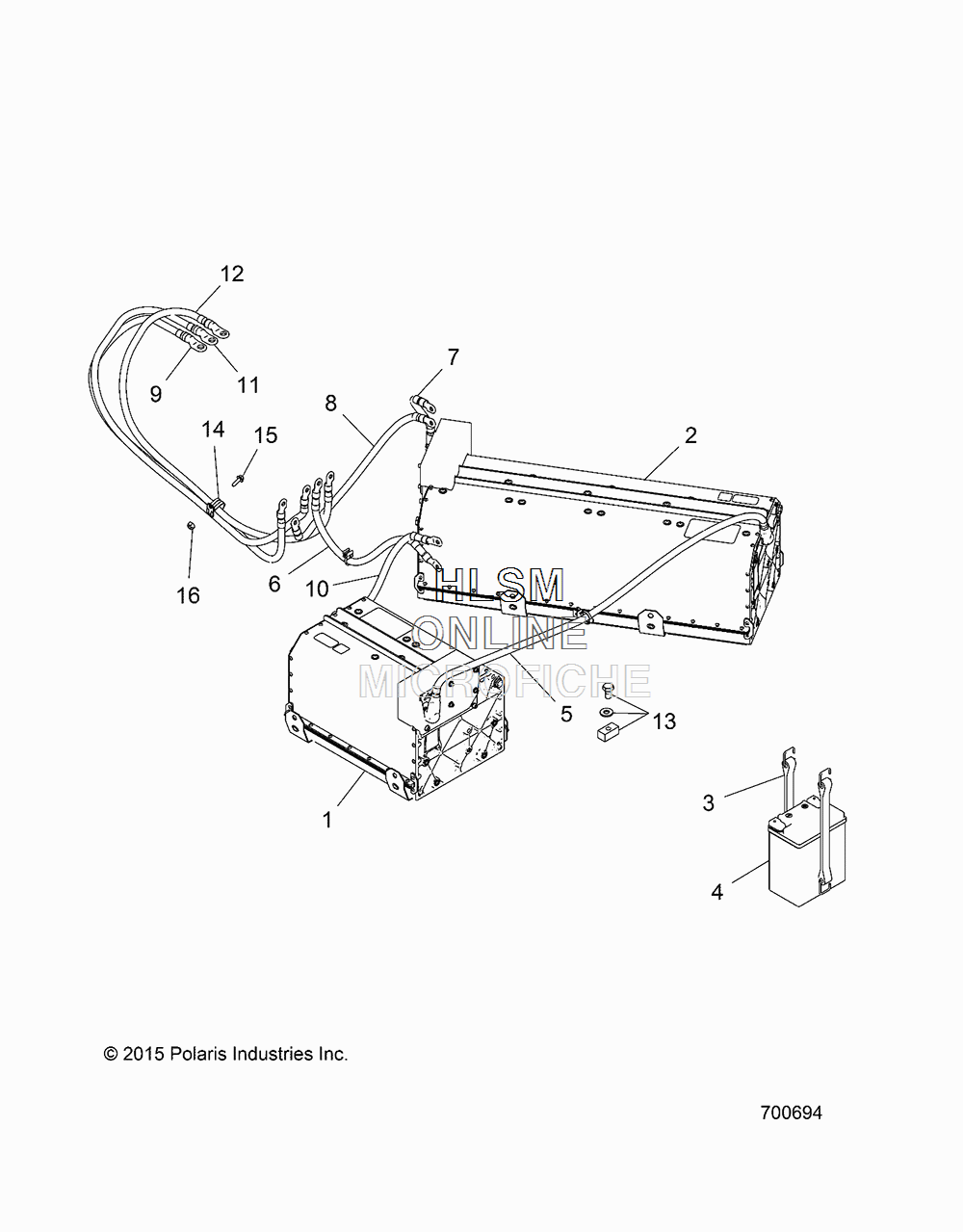

BATTERY для Polaris RANGER EV LIION (R05) - [R17RMAL4G9] - 2017 года выпуска`
-
№АртикулНазвание
-
14015533 BATTERY-15V,LI-ION,4.1KWHBATTERY-15V,LI-ION,4.1KWH
-
24015532 BATTERY-30V,LI-ION, 8.3KWHBATTERY-30V,LI-ION, 8.3KWH
-
32634189 ASM., STRAP, BATTERYASM., STRAP, BATTERY
-
44011138 BATTERY-SEALED,14AH,ETX15BATTERY-SEALED,14AH,ETX15
-
54015722 CABLE,BATTERY,INTERCONNECTCABLE,BATTERY,INTERCONNECT
-
64015615 CABLE, BATTERY, SHORT [150 MM]CABLE, BATTERY, SHORT [150 MM]
-
74015616 CABLE, BATTERY, POSITIVECABLE, BATTERY, POSITIVE
-
84015718 CABLE, CONTROLLER, CONTRACTOR [380 MM]CABLE, CONTROLLER, CONTRACTOR [380 MM]
-
94015719 CABLE, MOTOR, U [1350 MM]CABLE, MOTOR, U [1350 MM]
-
104015617 CABLE-BATTERY NEGCABLE-BATTERY NEG
-
114015720 CABLE, MOTOR, V [1350 MM]CABLE, MOTOR, V [1350 MM]
-
124015721 CABLE, MOTOR, W [1350 MM]CABLE, MOTOR, W [1350 MM]
-
132202213 KIT-BATTERY BOLTKIT-BATTERY BOLT
-
147080869 CLAMP-P,CUSHIONED,1.25" I.D.CLAMP-P,CUSHIONED,1.25" I.D.
-
157518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
167547144 NUT-NYLOCK M8X1.25-YNUT-NYLOCK M8X1.25-Y
