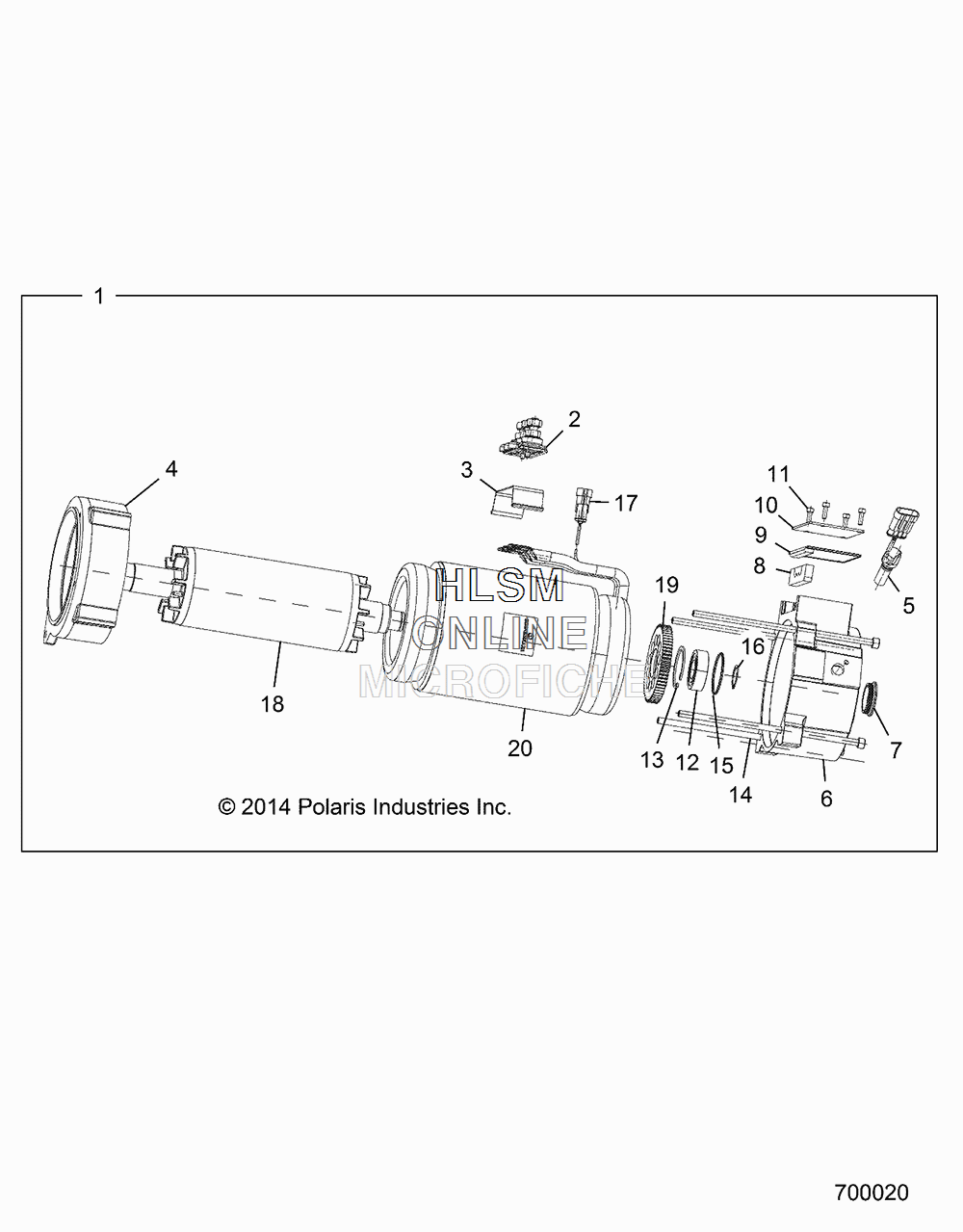

STARTING MOTOR COMPONETS для Polaris RANGER EV CAMO [R17RMAE4G9] - 2017 года выпуска
-
№АртикулНазвание
-
14014867 ASM., MOTOR, 48 VAC [INCL. ALL]ASM., MOTOR, 48 VAC [INCL. ALL]
-
23235735 BOARD, TERMINALBOARD, TERMINAL
-
33235736 BASE, TERMINALBASE, TERMINAL
-
43235737 RING, DRIVE ENDRING, DRIVE END
-
53235738 SENSOR, SPEEDSENSOR, SPEED
-
63235739 SHIELD, NON DRIVE ENDSHIELD, NON DRIVE END
-
73235740 PLUG, SCREW, PLASTIC, O-RINGPLUG, SCREW, PLASTIC, O-RING
-
83235741 BLOCK, SEALINGBLOCK, SEALING
-
93235742 PLATE, SEALINGPLATE, SEALING
-
103235743 PLATE, COVERPLATE, COVER
-
113235744 SCREWSCREW
-
123235745 BEARING, BALL, HLBEARING, BALL, HL
-
133235746 CIRCLIPCIRCLIP
-
143235747 SCREWSCREW
-
153235748 O-RINGO-RING
-
163235749 CIRCLIPCIRCLIP
-
173235750 CONNECTOR, TEMP SENSORCONNECTOR, TEMP SENSOR
-
183235751 ROTORROTOR
-
193235752 SENSOR, GEAR WHEELSENSOR, GEAR WHEEL
-
203235734 STATORSTATOR
