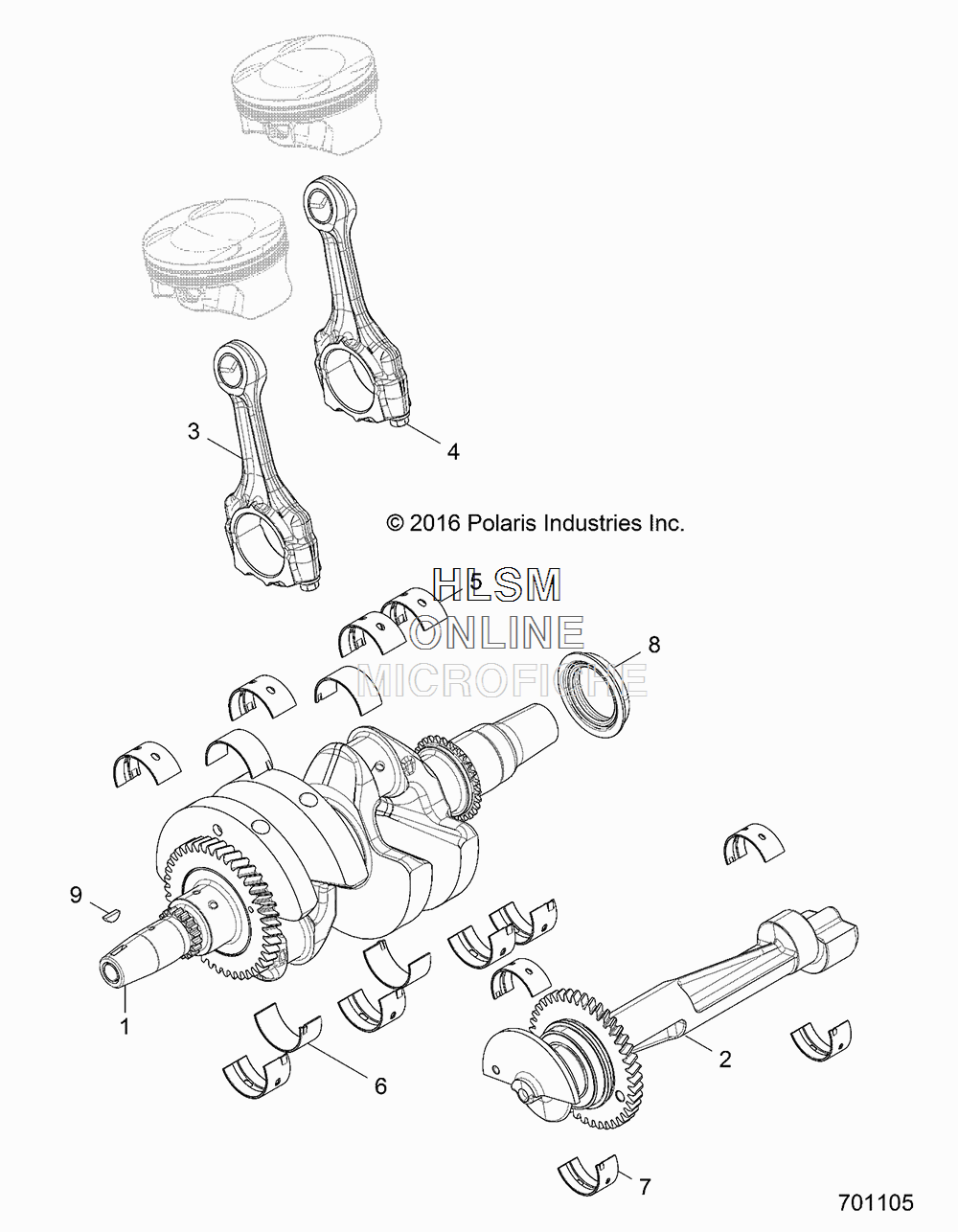

CRANKSHAFT для Polaris RANGER CREW 1000XP 6P,PS,NB,MD (R02) - [R17RVE99NY] - 2017 года выпуска
-
№АртикулНазвание
-
13023169 ASM-CRANKSHAFTASM-CRANKSHAFT
-
21204835 ASM., BALANCE SHAFTASM., BALANCE SHAFT
-
33023077 ASM., CONNECTING ROD [INCL. 4]ASM., CONNECTING ROD [INCL. 4]
-
47520378 SCREWSCREW
-
53514662-001 BEARING, MAIN, (WHITE)BEARING, MAIN, (WHITE)
-
53514662-002 BEARING, MAIN, (BLUE)BEARING, MAIN, (BLUE)
-
53514662-003 BEARING, MAIN, (GREEN)BEARING, MAIN, (GREEN)
-
53514662-004 BEARING, MAIN, (YELLOW)BEARING, MAIN, (YELLOW)
-
53514662-005 BEARING, MAIN, (RED)BEARING, MAIN, (RED)
-
63514663-001 BEARING, CONNECTING ROD, (WHITE)BEARING, CONNECTING ROD, (WHITE)
-
63514663-002 BEARING, CONNECTING ROD, (BLUE)BEARING, CONNECTING ROD, (BLUE)
-
63514663-003 BEARING, CONNECTING ROD, (GREEN)BEARING, CONNECTING ROD, (GREEN)
-
63514663-004 BEARING, CONNECTING ROD, (YELLOW)BEARING, CONNECTING ROD, (YELLOW)
-
73514756 BEARING, BALANCE SHAFTBEARING, BALANCE SHAFT
-
83610176 SEAL, FLANGESEAL, FLANGE
-
97721122 KEY, WOODRUFF NON-HVACKEY, WOODRUFF NON-HVAC
