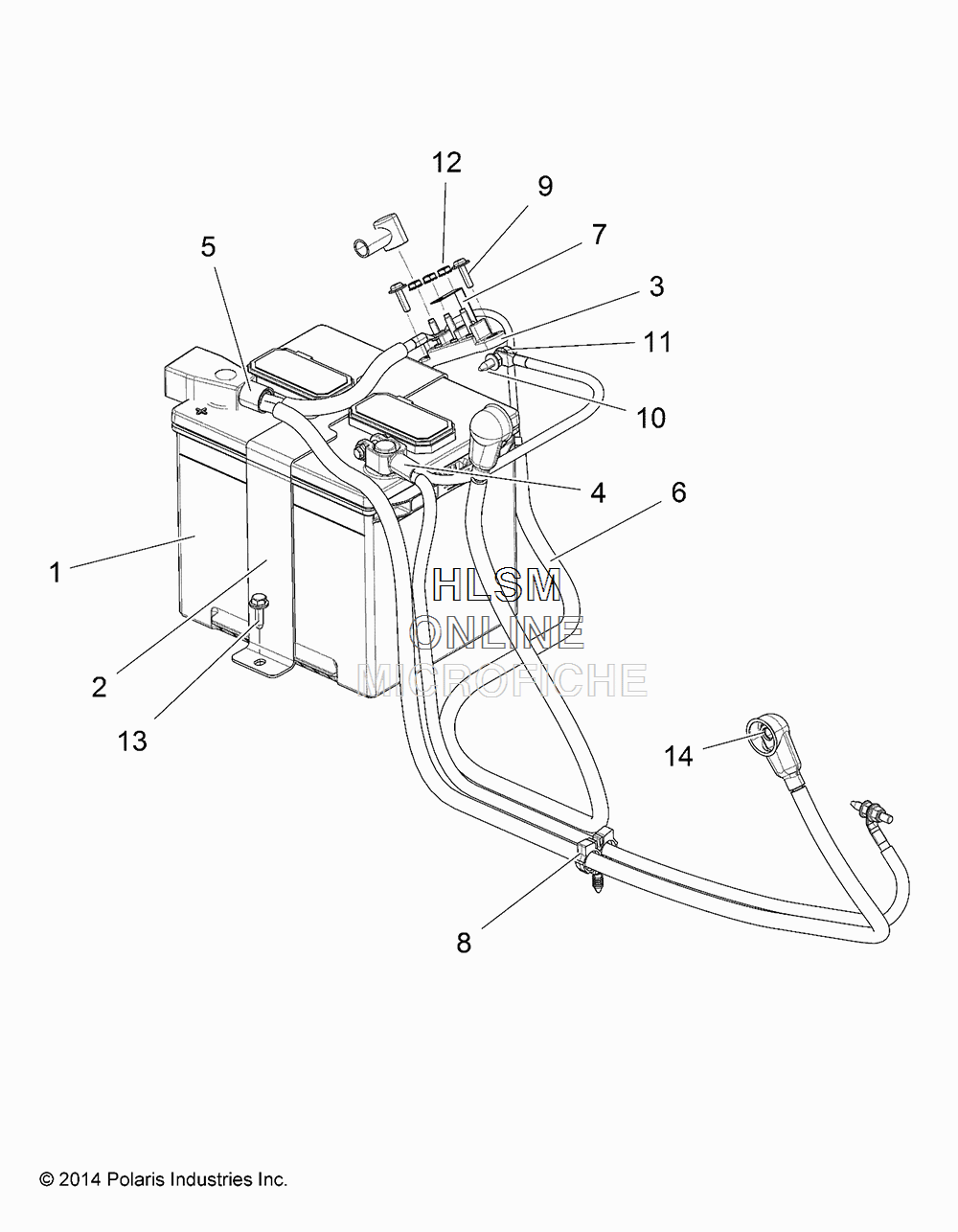

BATTERY для Polaris RANGER 1000 DIESEL (R08) - [R17RTAD1A1] - 2017 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    4014132 BATTERY
    BATTERY
  • 2
    5257827 BRACKET, BATTERY STRAP
    BRACKET, BATTERY STRAP
  • 3
    4015778 BLOCK, TERMINAL, 3 POST
    BLOCK, TERMINAL, 3 POST
  • 4
    4015346 ASM., CABLE, STARTER TO SOL/GND
    ASM., CABLE, STARTER TO SOL/GND
  • 5
    4015347 CABLE, BATTERY TO ALTERNATOR
    CABLE, BATTERY TO ALTERNATOR
  • 6
    4015348 CABLE, ALTERNATOR, BATTERY
    CABLE, ALTERNATOR, BATTERY
  • 7
    5255398 STRAP, GROUND
    STRAP, GROUND
  • 8
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 9
    7518196 SCREW
    SCREW
  • 10
    7519333 STUD, M6
    STUD, M6
  • 11
    7547274 NUT, M6
    NUT, M6
  • 12
    7547341 NUTS, KEPS, 10-32
    NUTS, KEPS, 10-32
  • 13
    7518529 SCREW, M6
    SCREW, M6
  • 14
    7547317 NUT, M8
    NUT, M8
