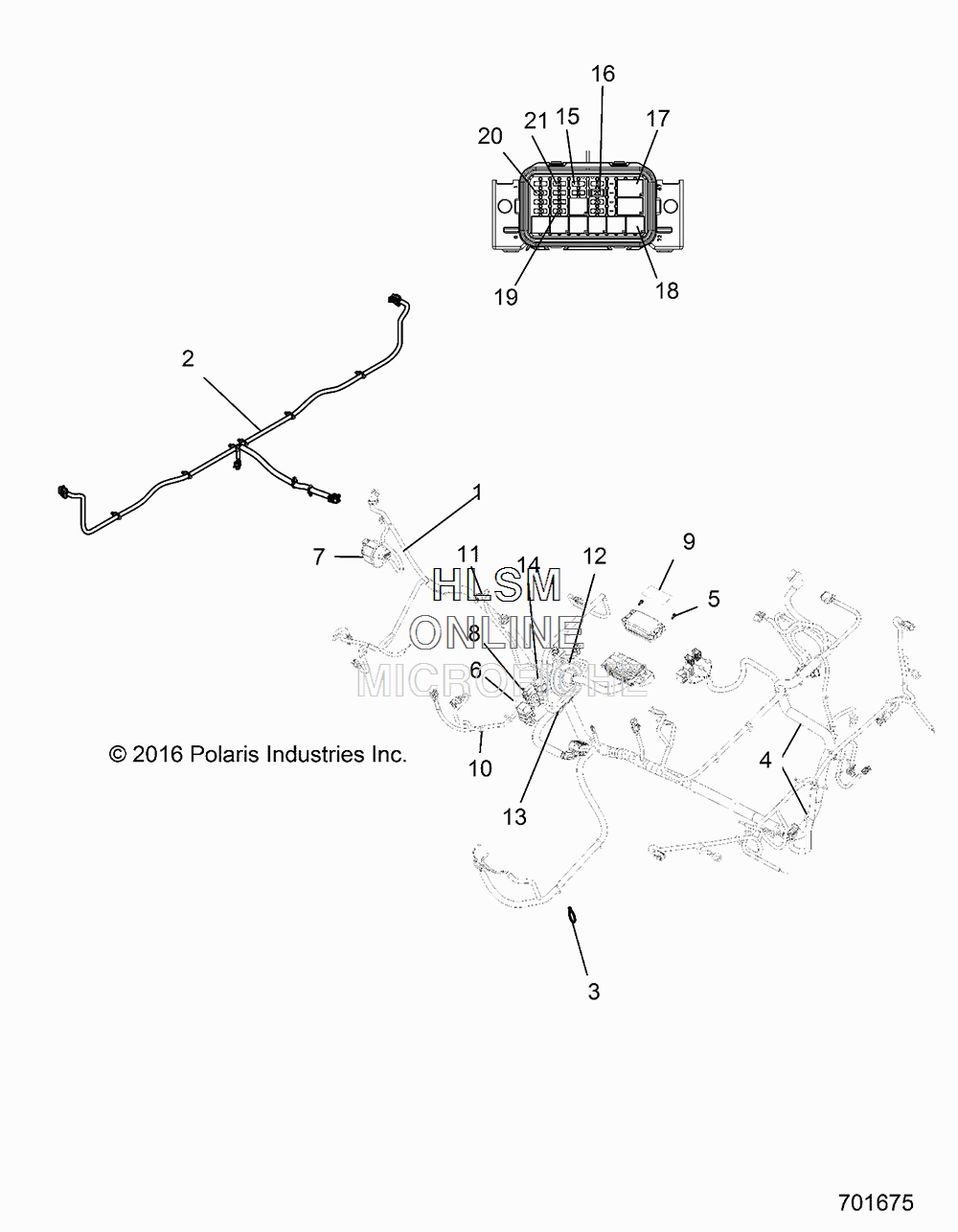

WIRE HARNESSES для Polaris RANGER 1000 DIESEL POLAND (R05) - [R17RTED1F1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2413976 HARNESS-CHASSIS, EPS, DSL, TR [INCL. 8-21]
    HARNESS-CHASSIS, EPS, DSL, TR [INCL. 8-21]
  • 2
    2413592 HARNESS-BOX, RANGER, DIESEL, EU
    HARNESS-BOX, RANGER, DIESEL, EU
  • 3
    7080138 PANDUIT, STRAP
    PANDUIT, STRAP
  • 4
    2411035 DIODE-6 AMP, 1/4, 3/16 TERM
    DIODE-6 AMP, 1/4, 3/16 TERM
  • 5
    7518533 SCR-HXFL-M6X1.0X25 8.8 RIE
    SCR-HXFL-M6X1.0X25 8.8 RIE
  • 6
    7670088 CLIP, PLASTIC DART, NYLON
    CLIP, PLASTIC DART, NYLON
  • 7
    4012558 CONNECTOR-7 WAY, EURO TRAILER
    CONNECTOR-7 WAY, EURO TRAILER
  • 8
    7670101 CLIP, XMAS TREE
    CLIP, XMAS TREE
  • 9
    7185001 DECAL, FUSEBOX, DSL
    DECAL, FUSEBOX, DSL
  • 10
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 11
    5451468 BOOT, OIL PRESSURE SWITCH
    BOOT, OIL PRESSURE SWITCH
  • 12
    5414435 GROMMET
    GROMMET
  • 13
    4013200 TVS, 30VOLT
    TVS, 30VOLT
  • 14
    4012170 COVER, DIAGNOSTIC, W/CLIP
    COVER, DIAGNOSTIC, W/CLIP
  • 15
    4011652 FUSE 5A, MINI BLADE
    FUSE 5A, MINI BLADE
  • 16
    4011372 BREAKER, CIRCUIT, 20 AMP
    BREAKER, CIRCUIT, 20 AMP
  • 17
    4011284 RELAY, SPDT, SERIERS 301, SEALED
    RELAY, SPDT, SERIERS 301, SEALED
  • 18
    4011283 RELAY, SPDT, SERIES 303, SEALED
    RELAY, SPDT, SERIES 303, SEALED
  • 19
    2434017 FUSE, PARK, 20 AMP
    FUSE, PARK, 20 AMP
  • 20
    2434015 FUSE, PARK, 30 AMP
    FUSE, PARK, 30 AMP
  • 21
    2410280 FUSE, MINI BLADE, 15 AMP
    FUSE, MINI BLADE, 15 AMP
