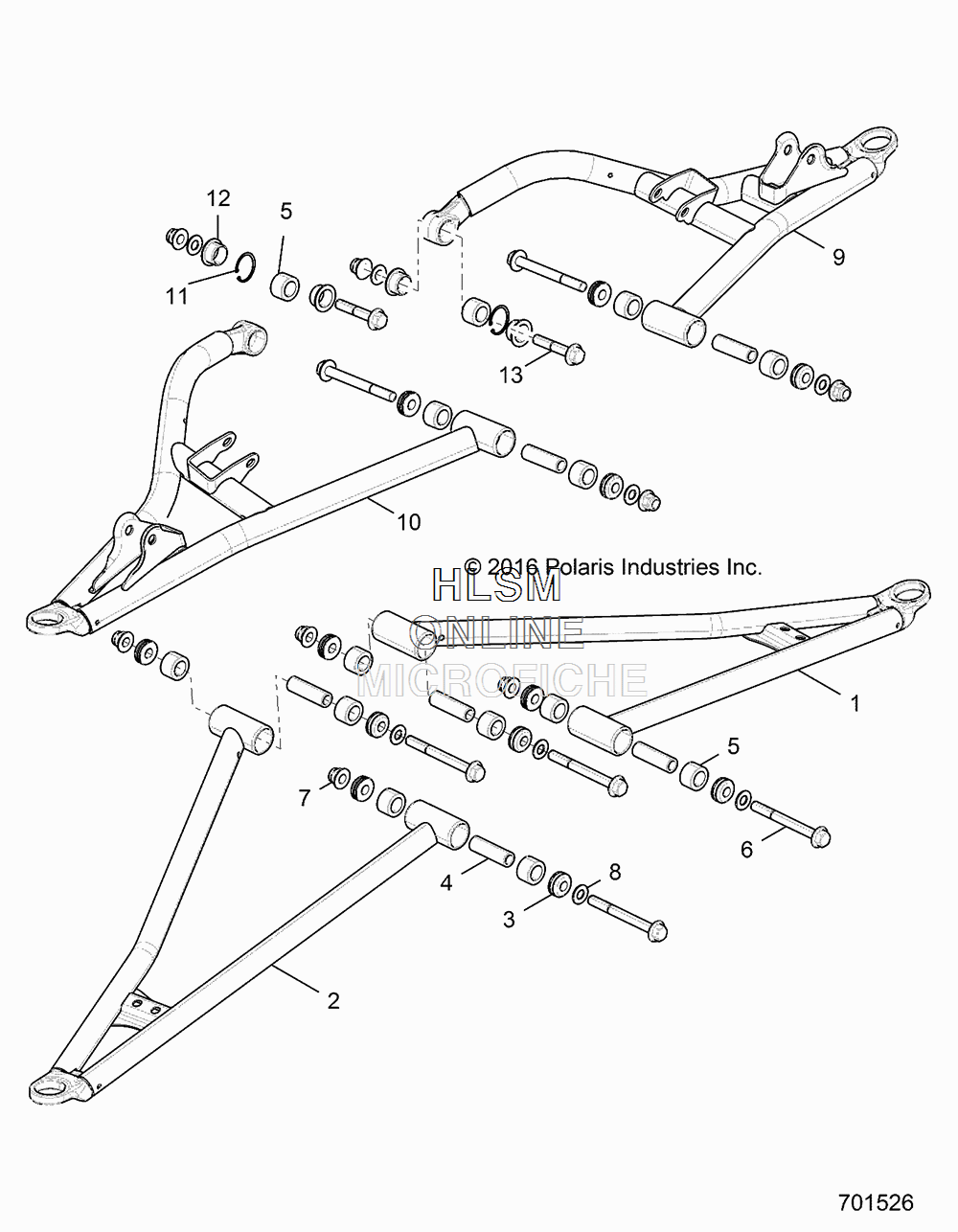

CONTROL ARMS - FRONT для Polaris POLARIS GENERAL 1000 PS MD MATTE TITANIUM SPORT[R17RGE99NM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021416-647 WELD-CTRL ARM, LOWER, FRT, LEFT HAND, 60, OR
    WELD-CTRL ARM, LOWER, FRT, LEFT HAND, 60, OR
  • 2
    1021417-647 WELD-CTRL ARM, LOWER, FRT, RIGHT HAND, 60, OR
    WELD-CTRL ARM, LOWER, FRT, RIGHT HAND, 60, OR
  • 3
    1543611 ASM-PIVOT CAP, SEALED, M10
    ASM-PIVOT CAP, SEALED, M10
  • 4
    5139966 SHAFT-PIVOT, SHORT, M10
    SHAFT-PIVOT, SHORT, M10
  • 5
    5452233 BUSHING-STANDARD, SUSP, M10
    BUSHING-STANDARD, SUSP, M10
  • 6
    7519043 SCR-HXFL-M10X1.25X95 10.9 ZOD
    SCR-HXFL-M10X1.25X95 10.9 ZOD
  • 7
    7547333 NUT-M10X1.25, FLG, NYLOC-OLIVE D
    NUT-M10X1.25, FLG, NYLOC-OLIVE D
  • 8
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
  • 9
    1022425-647 WELD-CTRL ARM, UPPER, FRT, LEFT HAND, 60, OR
    WELD-CTRL ARM, UPPER, FRT, LEFT HAND, 60, OR
  • 10
    1022426-647 WELD-CTRL ARM, UPPER, FRT, RIGHT HAND, 60, OR
    WELD-CTRL ARM, UPPER, FRT, RIGHT HAND, 60, OR
  • 11
    7710533 RING-RETAINER, EXTERNAL, 1.188
    RING-RETAINER, EXTERNAL, 1.188
  • 12
    1543735 ASM-PIVOT CAP, SEALED, SLIM, M10
    ASM-PIVOT CAP, SEALED, SLIM, M10
  • 13
    7519285 SCR-HXFL-M10X1.25X55 10.9 ZOD
    SCR-HXFL-M10X1.25X55 10.9 ZOD
