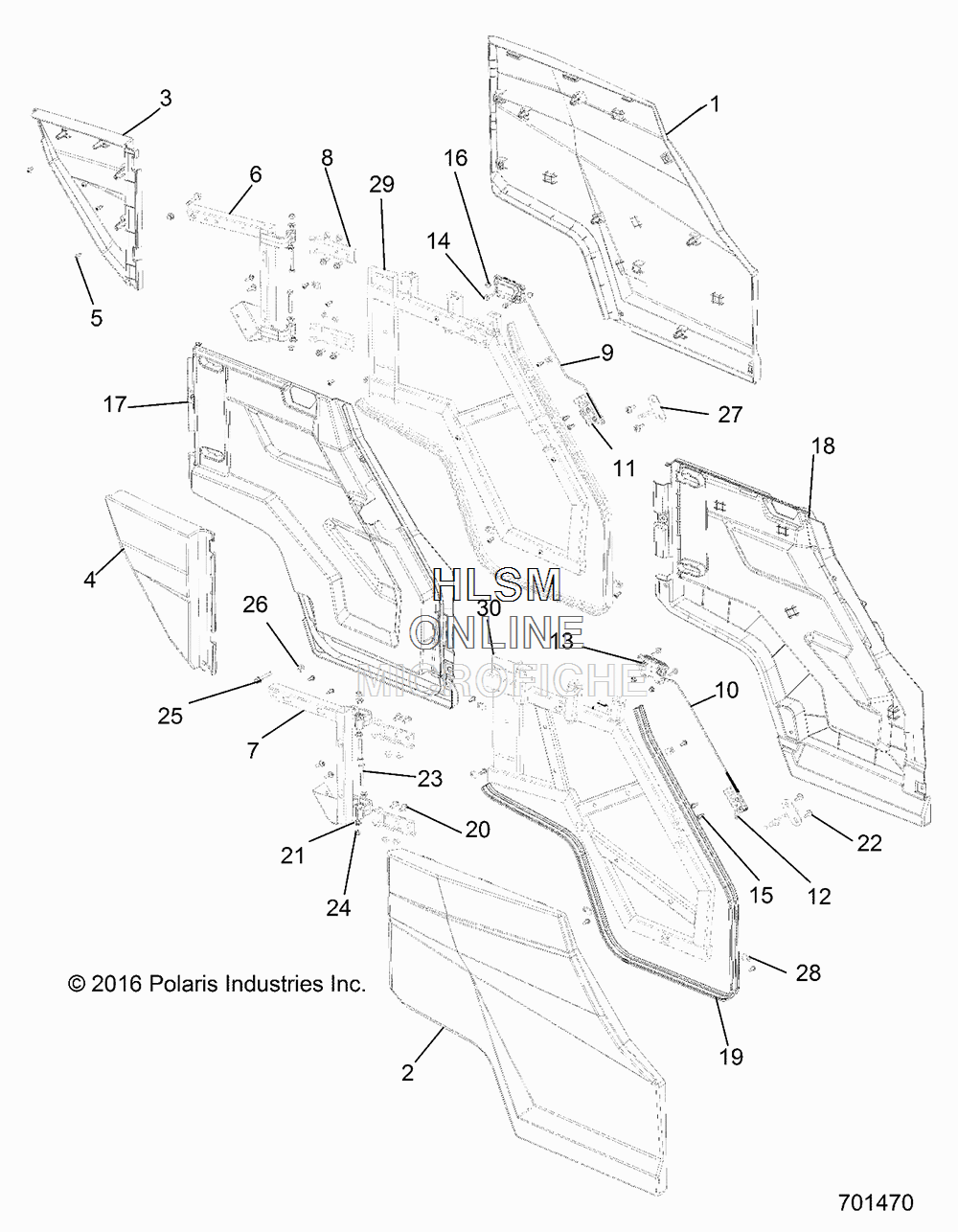

DOORS- REAR для Polaris POLARIS GENERAL 1000 4P MD [R17RHE99NU] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5452945-402 PANEL-DOOR, OTR, RR, PNT, LEFT HAND, (T.SILV)
    PANEL-DOOR, OTR, RR, PNT, LEFT HAND, (T.SILV)
  • 2
    5452946-402 PANEL-DOOR, OTR, RR, PNT, RIGHT HAND, (T.SILV)
    PANEL-DOOR, OTR, RR, PNT, RIGHT HAND, (T.SILV)
  • 3
    5452953-402 COVER-BOLSTER BAR, PNT, LEFT HAND, (T.SILV)
    COVER-BOLSTER BAR, PNT, LEFT HAND, (T.SILV)
  • 4
    5452954-402 COVER-BOLSTER BAR, PNT, RIGHT HAND, (T.SILV)
    COVER-BOLSTER BAR, PNT, RIGHT HAND, (T.SILV)
  • 5
    7519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBK
    SCR-TX TRUSS-#14X3/4, HI/LO ZBK
  • 6
    1022761-458 WELD-BOLSTER, REAR, LEFT HAND, (BLACK)
    WELD-BOLSTER, REAR, LEFT HAND, (BLACK)
  • 7
    1022762-458 WELD-BOLSTER, REAR, RIGHT HAND, (BLACK)
    WELD-BOLSTER, REAR, RIGHT HAND, (BLACK)
  • 8
    5263232-329 BRKT-DOOR REAR HINGE, (BLACK)
    BRKT-DOOR REAR HINGE, (BLACK)
  • 9
    5339711 ROD-LATCH, REAR, LEFT HAND
    ROD-LATCH, REAR, LEFT HAND
  • 10
    5339712 ROD-LATCH, REAR, RIGHT HAND
    ROD-LATCH, REAR, RIGHT HAND
  • 11
    7082199 ASM-LATCH, ROTARY, LEFT HAND
    ASM-LATCH, ROTARY, LEFT HAND
  • 12
    7082200 ASM-LATCH, ROTARY, RIGHT HAND
    ASM-LATCH, ROTARY, RIGHT HAND
  • 13
    7082201 ASM-HANDLE, DOOR
    ASM-HANDLE, DOOR
  • 14
    7518533 SCR-HXFL-M6X1.0X25 8.8 RIE
    SCR-HXFL-M6X1.0X25 8.8 RIE
  • 15
    7518613 SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
    SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
  • 16
    7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL
    NUT-HXFL-M6X1.0 8 ZB3 NYL
  • 17
    5452947-070 PANEL-DOOR, INNER, RR, LEFT HAND, (BLACK)
    PANEL-DOOR, INNER, RR, LEFT HAND, (BLACK)
  • 18
    5452948-070 PANEL-DOOR, INNER, RR, RIGHT HAND, (BLACK)
    PANEL-DOOR, INNER, RR, RIGHT HAND, (BLACK)
  • 19
    5510910 SEAL-DOOR, REAR [TO 1/23/17]
    SEAL-DOOR, REAR [TO 1/23/17]
  • 19
    5510932 SEAL-DOOR, REAR [FROM 1/23/17]
    SEAL-DOOR, REAR [FROM 1/23/17]
  • 20
    7517838 SCR-HXFL-M8X1.25X20 10.9 ZPB
    SCR-HXFL-M8X1.25X20 10.9 ZPB
  • 21
    5450592 BUSHING-DOOR PIVOT
    BUSHING-DOOR PIVOT
  • 22
    7519650 SCR-TXTH-M6X1.0X25 RIE
    SCR-TXTH-M6X1.0X25 RIE
  • 23
    7519781 SCR-HH-M8X1.25X55 8.8 ZOD
    SCR-HH-M8X1.25X55 8.8 ZOD
  • 24
    7547480 NUT-HEX-M8X1.25 8 ZOD NYL
    NUT-HEX-M8X1.25 8 ZOD NYL
  • 25
    7519077 SCR-HXFL-M8X1.25X50 8.8 ZODP30
    SCR-HXFL-M8X1.25X50 8.8 ZODP30
  • 26
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 27
    1022873 WELD-STRIKER, REAR
    WELD-STRIKER, REAR
  • 28
    7547674 NUT-M6-1.0, U-TYPE (2.5-3.8)
    NUT-M6-1.0, U-TYPE (2.5-3.8)
  • 29
    1022270-458 WELD-DOOR FRAME, REAR, LEFT HAND, (BLACK)
    WELD-DOOR FRAME, REAR, LEFT HAND, (BLACK)
  • 30
    1022271-458 WELD-DOOR FRAME, REAR, RIGHT HAND, (BLACK)
    WELD-DOOR FRAME, REAR, RIGHT HAND, (BLACK)
