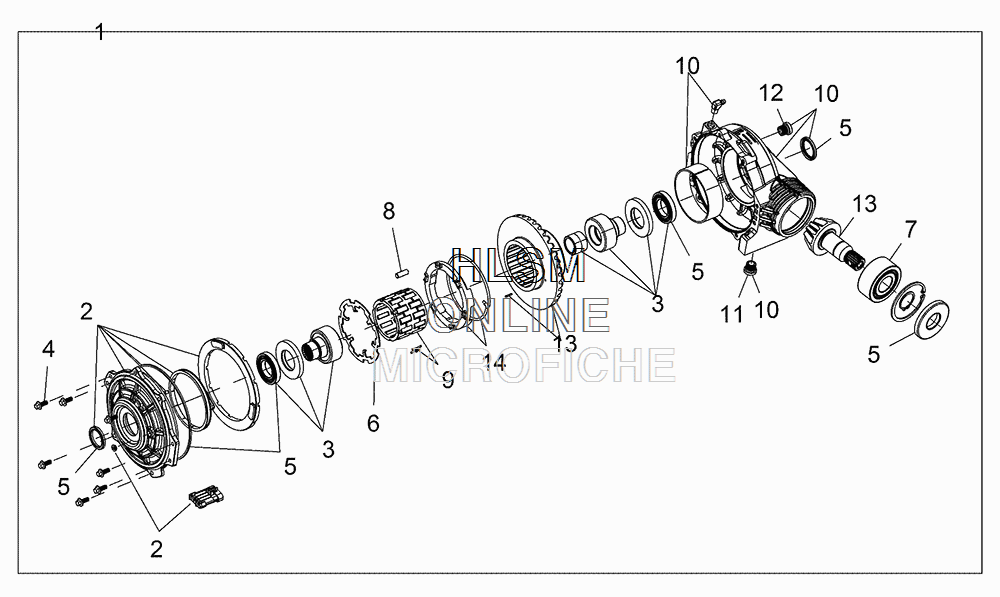

FRONT GEARCASE для Polaris RANGER XP 900 (VELOCITY BLUE) [R16RTE87AV] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1333344 ASSY, FRONT GEARCASE (INCL. ALL)
    ASSY, FRONT GEARCASE (INCL. ALL)
  • 2
    3235481 ASM., COVER OUTPUT
    ASM., COVER OUTPUT
  • 3
    3235622 ASM., OUTPUT HUB
    ASM., OUTPUT HUB
  • 4
    3235483 KIT, COVER FASTENERS (INCL. 7 FASTENERS)
    KIT, COVER FASTENERS (INCL. 7 FASTENERS)
  • 5
    3235484 COMPLETE SEAL REPAIR
    COMPLETE SEAL REPAIR
  • 6
    3235485 PLATE, 4WD ARMATURE
    PLATE, 4WD ARMATURE
  • 7
    3235174 BEARING
    BEARING
  • 8
    3235624 KIT, CLUTCH, ROLLERS (INCL. FULL ROLLER SET OF 24)
    KIT, CLUTCH, ROLLERS (INCL. FULL ROLLER SET OF 24)
  • 9
    3235625 ASM., ROLL CAGE (INCL. ROLL CAGE AND 24 H-CLIPS)
    ASM., ROLL CAGE (INCL. ROLL CAGE AND 24 H-CLIPS)
  • 10
    3235488 ASM., GEARCASE
    ASM., GEARCASE
  • 11
    2203738 PLUG, DRAIN
    PLUG, DRAIN
  • 12
    2203739 PLUG, FILL
    PLUG, FILL
  • 13
    3235489 ASM., GEAR HOUSING AND PINION GEAR
    ASM., GEAR HOUSING AND PINION GEAR
  • 14
    3235490 SPRING, TORSION AND RETAINER
    SPRING, TORSION AND RETAINER
