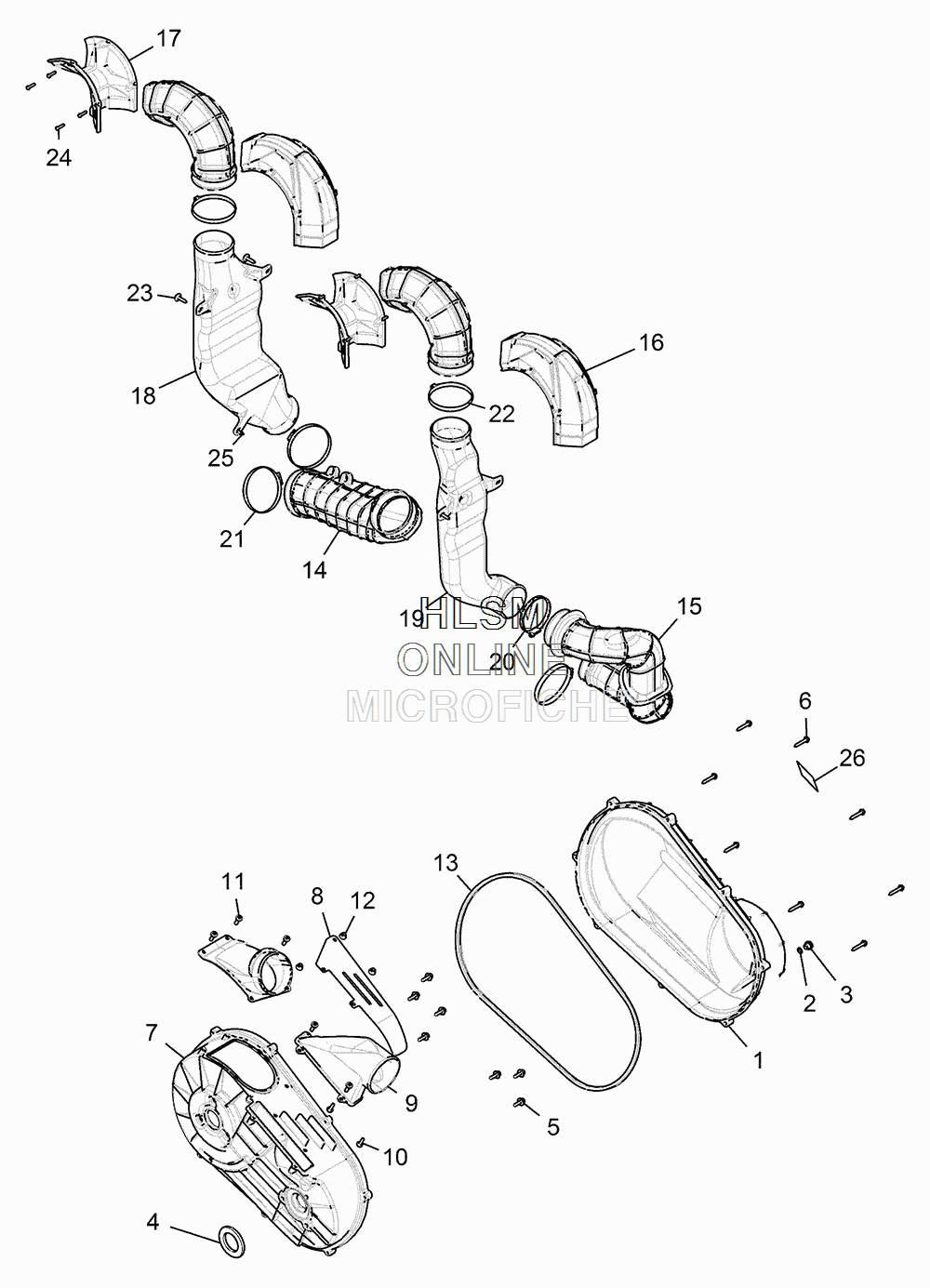

CLUTCH COVER AND DUCTING для Polaris RANGER XP 900 (STEALTH BLACK (HIGH LIFTER EDITION) [R16RTM87AL] - 2016 года выпуска
-
№АртикулНазвание
-
12634179 ASM-COVER, CLUTCH, OUTER (INCL 2, 3)ASM-COVER, CLUTCH, OUTER (INCL 2, 3)
-
25410542 O RING-.364X.504X.07O RING-.364X.504X.07
-
35434264 PLUG-DRAIN, CLUTCH COVERPLUG-DRAIN, CLUTCH COVER
-
45813708 SEAL-COVER, PTOSEAL-COVER, PTO
-
57519278 ASM-BOLT/WASHER, 20 MMASM-BOLT/WASHER, 20 MM
-
67519330 SCR-HXFL-M6X35 ZOD HILOSCR-HXFL-M6X35 ZOD HILO
-
72635158 ASM-COVER, CLUTCH, INNER (INCL 8-12)ASM-COVER, CLUTCH, INNER (INCL 8-12)
-
85256223 BRKT-GUARD, CLUTCH COVERBRKT-GUARD, CLUTCH COVER
-
95439086 DUCT-CLUTCH, AIR INLETDUCT-CLUTCH, AIR INLET
-
107518546 SCR-M6X1.0X20MM, TX, PH, 8.8-BSCR-M6X1.0X20MM, TX, PH, 8.8-B
-
117519205 SCR-#14X3/4 HI/LO-PH-PN TRX-MSCR-#14X3/4 HI/LO-PH-PN TRX-M
-
127547453 NUT-HXFL-M6X1.0 8 ZB3 NYLNUT-HXFL-M6X1.0 8 ZB3 NYL
-
135521831 SEAL-OUTER CLUTCH COVERSEAL-OUTER CLUTCH COVER
-
145415626 HOSE-OUTLET, CLUTCH, MUDDERHOSE-OUTLET, CLUTCH, MUDDER
-
155415627 HOSE-CLUTCH INLET, MUDDERHOSE-CLUTCH INLET, MUDDER
-
165451616-593 COVER-PLAST, INTAKE HOSE, TOP, OMCOVER-PLAST, INTAKE HOSE, TOP, OM
-
175451617-070 CVR-PLAST, INTAKE HOSE, BTM, BLACKCVR-PLAST, INTAKE HOSE, BTM, BLACK
-
185452496 DUCT-OUTLET, CLUTCH, MUDDERDUCT-OUTLET, CLUTCH, MUDDER
-
195452497 DUCT-INLET, CLUTCH, UPPER, MUDDERDUCT-INLET, CLUTCH, UPPER, MUDDER
-
207081279 CLAMP-BAND, NARROW 70-90MMCLAMP-BAND, NARROW 70-90MM
-
217081626 CLAMP-WORM DRIVE, 3.69 DIACLAMP-WORM DRIVE, 3.69 DIA
-
227081996 CLAMP-HOSECLAMP-HOSE
-
237519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
247520164 SCR-TXPH-#10X1.0 ZPB HI/LOSCR-TXPH-#10X1.0 ZPB HI/LO
-
257661855 RIVET-TUFLOK, .315-.325X.787RIVET-TUFLOK, .315-.325X.787
-
267177469 DECAL-BELT, CAUTION/CHECKDECAL-BELT, CAUTION/CHECK
